2 Axle 6 Car Transport Trailer will ship to Central Asian Country
First of all, we are very grateful to customers from Central Asian country who ordered 2 axle car transport trailer for sale in YUHANG factory. The customer is a car dealer who needs to transport cars from one place to another. The customer attaches great importance to the product quality, safety factor and performance of the car transport trailer.
Sales manager Mark quickly established contact with the customer and provided a detailed technical specification sheet according to the customer’s needs for the use of the car transport trailer. Because the value of the goods transported by the customer is relatively high, our technical engineers have made a lot of improvements and reinforcements to the working platform of the vehicle, and properly lowered the center of gravity of the vehicle to ensure absolute safety.

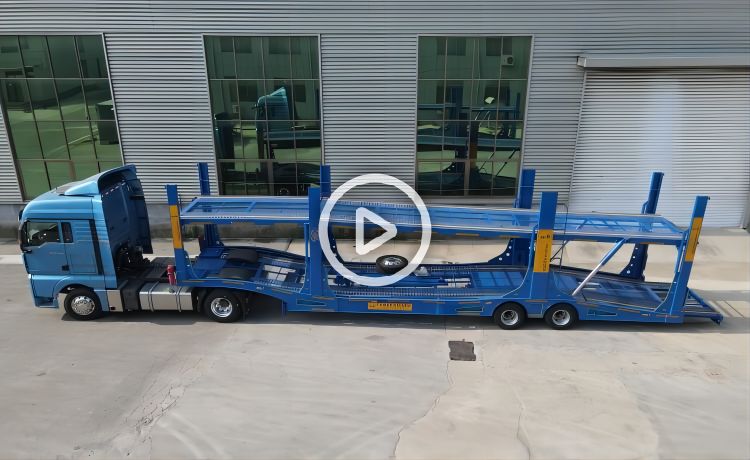

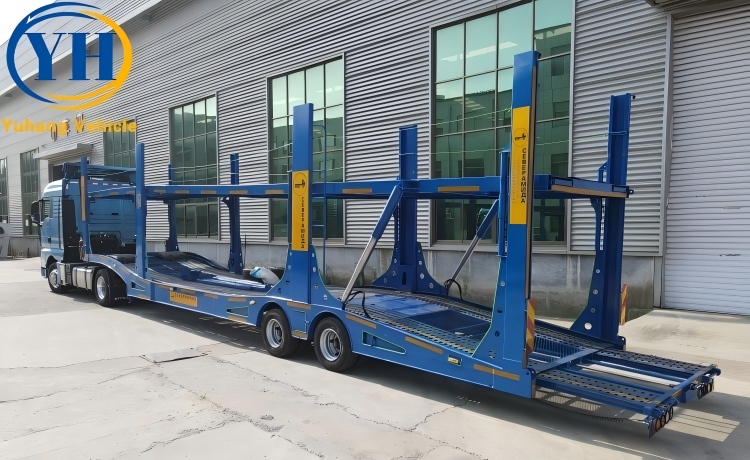

We have also put forward many favorable suggestions for our customers, and the customers are very satisfied with this. After a week of reference and comparison, the customer placed the order with YUHANG. After the sales manager Mark confirmed the final technical drawings and details with the customer, we arranged the factory to start production. The following is the car transport trailer that has been manufactured, let us take a look together.

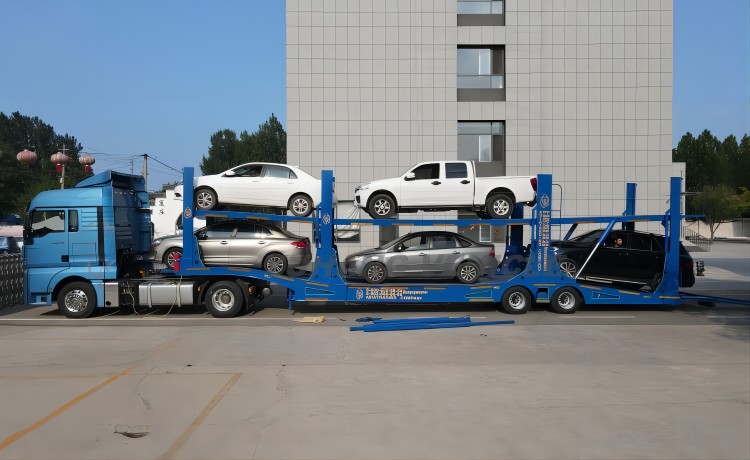

YUHANG brand car transport trailers are specially used to transport different brands and models of small cars and SUVs, minivans, such as: Volkswagen, Audi, Mercedes-Benz, BMW, etc. The vehicle is designed with two axles and two tires. Each axle has four 235/75R17.5-16PR vacuum tires, a total of eight tires, which can load and transport 6 cars at the same time.
Our car transport trailer is light in weight, large in loading space, and low in fuel consumption. The frame is a welded I-beam, and the frame of the entire vehicle adopts automatic submerged arc welding technology. After welding, it is subjected to shot blasting and derusting treatment to eliminate welding stress and improve the adhesion of paint, making it more durable and beautiful in appearance.

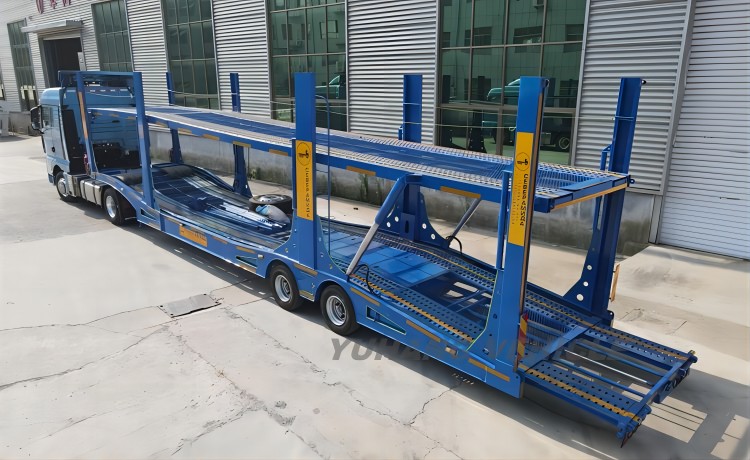

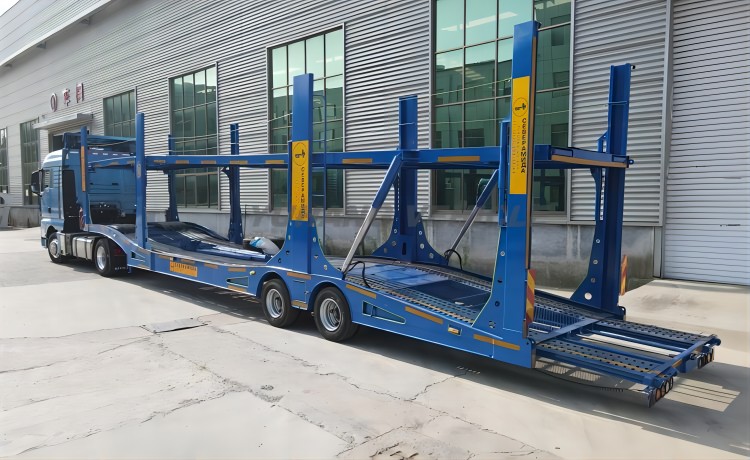

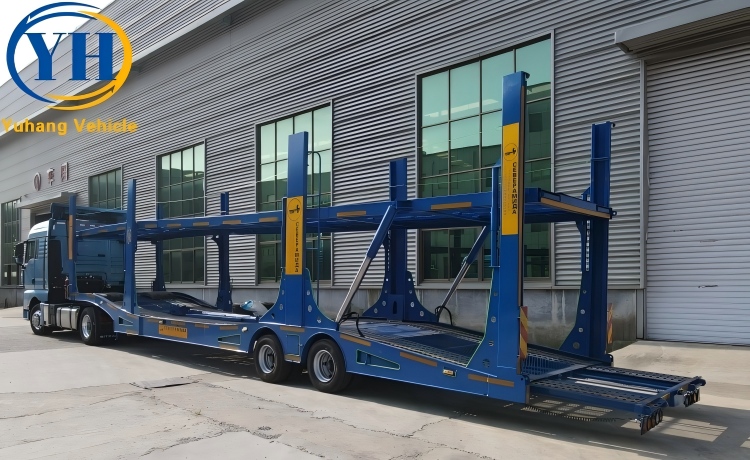

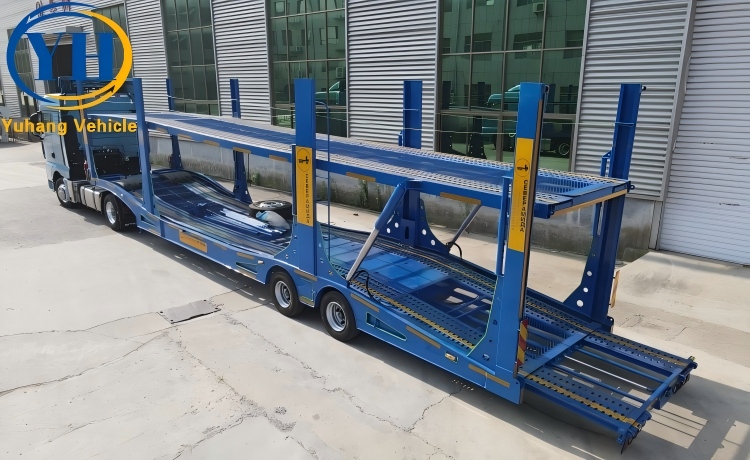

This type of car transport trailer has a double-layer loading platform structure, and the upper loading platform can be lifted up and down under the action of the lifting device to facilitate loading and unloading of cars. The lifting device is configured according to different needs, and can be directly lifted by a hydraulic cylinder. At the same time, we can design and customize the size and specification of vehicles according to customers’ special transportation needs.
The main structure of 2 axle 6 car transport trailer:

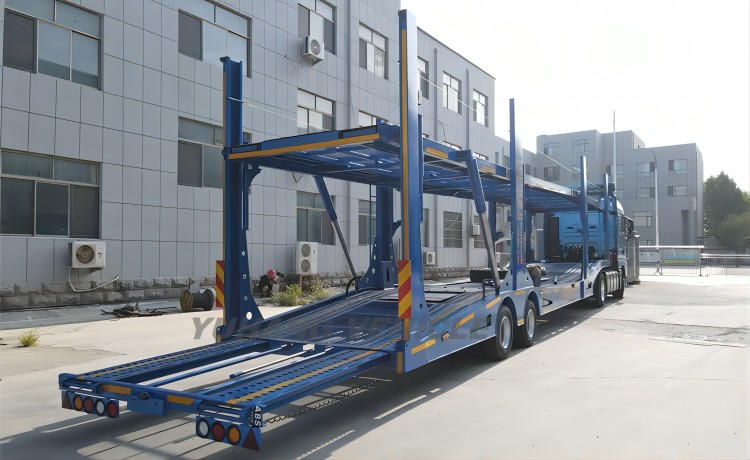

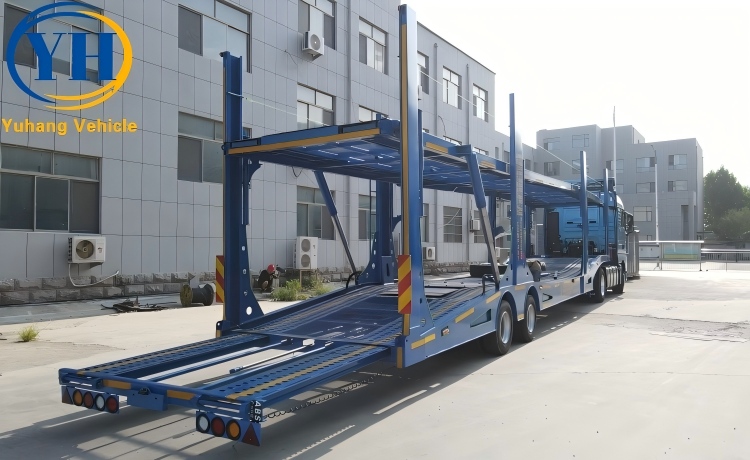

It generally consists of lower chassis, upper chassis, columns, hydraulic system, air suspension, braking system, circuit system, landing gear and hub cooling system. There is a drawer ladder at the rear.
Dimensions: 13750*2550*4000mm
King Pin: JOST50#
Suspension: American air suspension
Axle: 2 axle*BPW brand
Spare Tire Rack: 1 pcs
Tires: 235/75R17.5-16PR*8 pcs
ABS: Comet ABS-4M2S
Hub: 6.75-17.5*8 pcs
Toolbox: 1 pcs
Brake Air Chamber: Ruili 4 double-chamber air chamber
Relay Valve: WABCO
Others: circuit air circuit and hydraulic oil pipe low temperature resistant material
After the car transport trailer is loaded with the car, the loaded commercial car must be limited and fastened to avoid the jumping of the vehicle during driving and ensure the integrity of the car. There are two main ways to fix the car: one is the car wheel fixing method, and the other is the frame fixing method, which is implemented according to the actual needs of customers.
Among them, the wheel fixing method adopts the car tire limit frame and the car tire tightener, so as to lock the tire and prevent the car from moving forward and backward. The limit frame is a standard steel pipe structure. The frame fixing method is to fix the frame of the car transport trailer and the frame of the commercial vehicle together to prevent the suspension device of the commercial vehicle from bouncing up and down.
Finally, for the driver of the car transport trailer, although the cargo weight of the car transport trailer is not particularly large, the center of gravity of the vehicle is high, the body is longer, the wheelbase is long, and the turning radius is large, these have greatly increased the difficulty of driving the car transport trailer. Therefore, the safety awareness must be high, and the driving process must be more careful and highly concentrated.
We are a semi trailer manufacturing factory with nearly 30 years of experience. We can provide a full range of 6 car, 8 car, 10 car transport trailers and retractable hidden design solutions according to your actual transportation needs. 100% quality assurance, 100% lowest discount price, 100% after-sales service, to ensure that all rights and interests of customers are not damaged in any way.
If you also want to get the best car transport trailer, please hurry up and contact YUHANG factory, we will reply your message as soon as possible.
