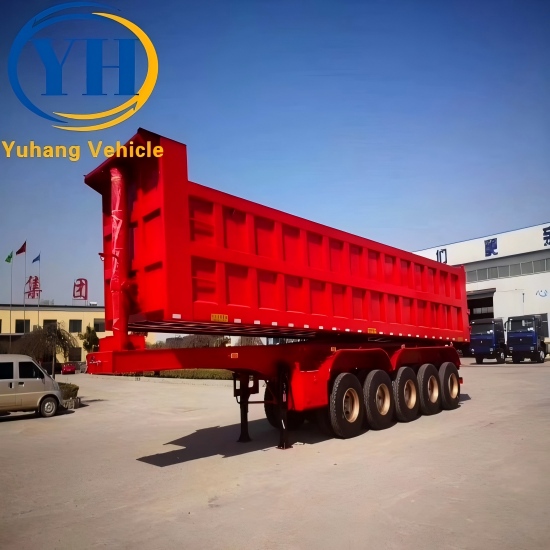

5 Axle Tipper Truck Trailer
50 Ton U Shape Tipper Trailer

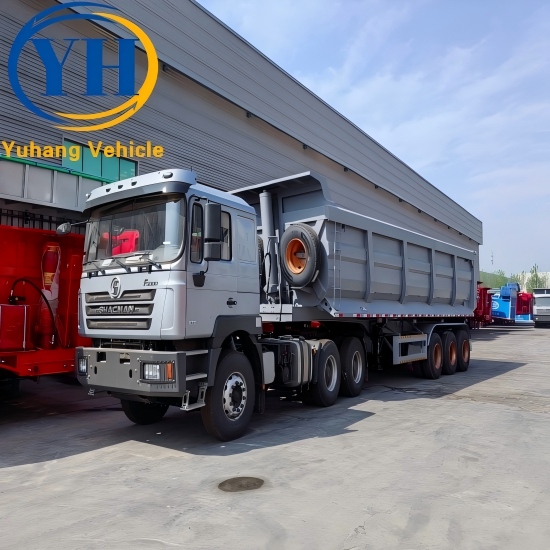

Triaxle Dumper Semi Trailer
35CBM Hydraulic Dump Trailer
120 Ton Heavy Duty Tipper Trailers
4 Axle End Dump Trailer

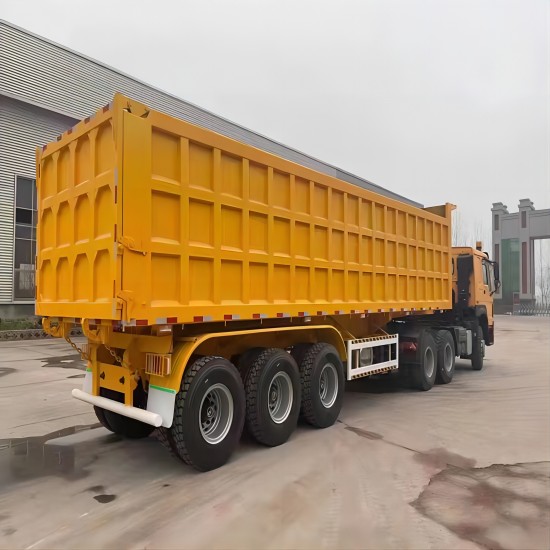

3 Axle Tipper Trailer Price
China New Tipper Semi Trailer

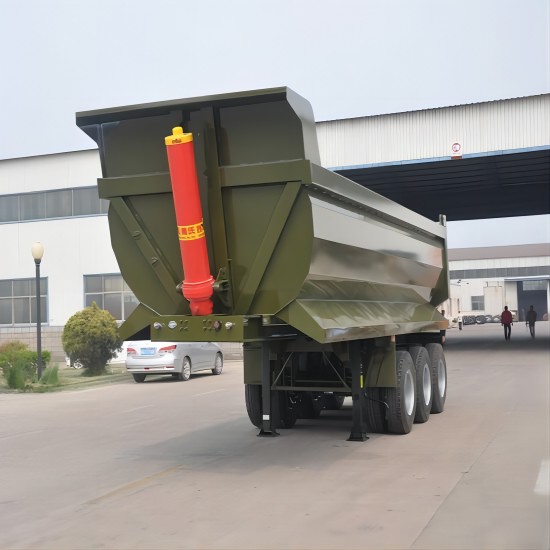

80 Ton Semi Tipper Trailer
42 Cubic Dump Semi Trailer
Table of Contents
1. What is a tipper semi trailer?
Tipper semi trailer is also known as semi tipper trailer, tipper truck trailer, and dump trailer. It is mainly composed of trailer chassis, hydraulic lifting system, power take-off device and cargo compartment.
We have tipper semi trailer for sale are mainly suitable for the transportation of loose goods, such as: coal, ore, earthwork, sand, and building materials. In the construction industry, it often cooperates with construction machinery, such as: excavators, loaders, and crawler conveyors.
The working principle of the tipper semi trailer is to lift the compartment to a certain angle through the hydraulic lifting system, so that the goods in the compartment can slide out easily. At present, YUHANG brand tipper semi trailers are exported to more than 40 units countries in Africa, Southeast Asia, the Middle East and South America, for example: Tanzania, Uganda, Malawi, Saudi Arabia, United Arab Emirates, Cyprus, Philippines, Vietnam, Indonesia, Guyana, Venezuela , Peru, etc.

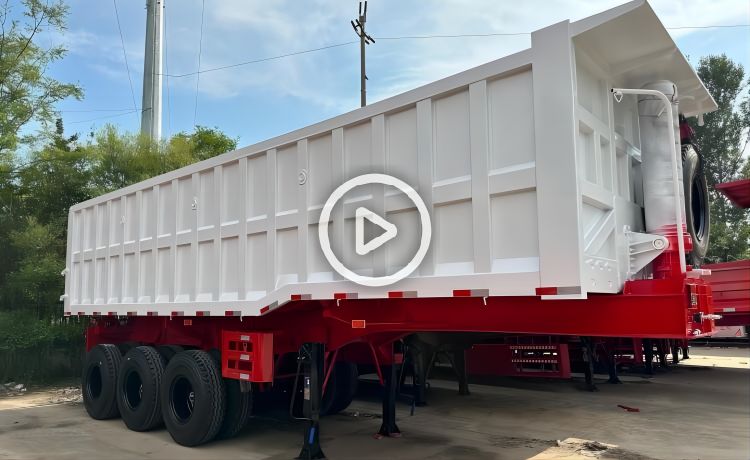

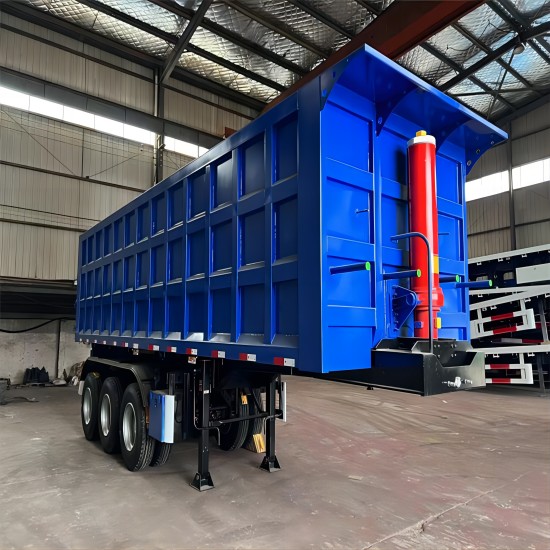

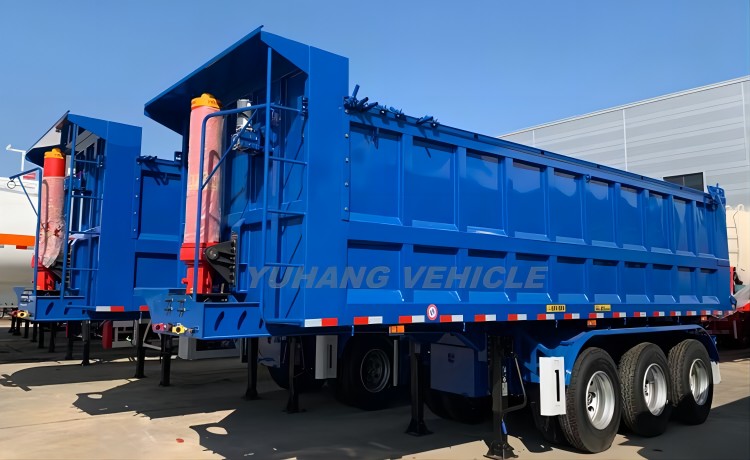

YUHANG factory 3 axle 60t tipping trailer for sale

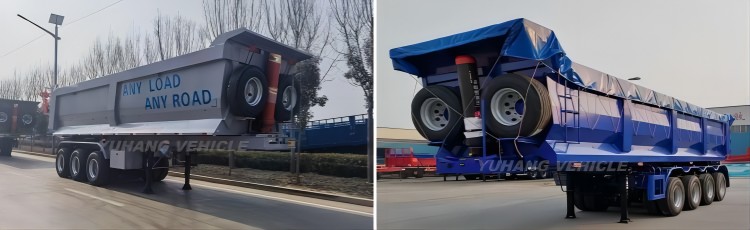

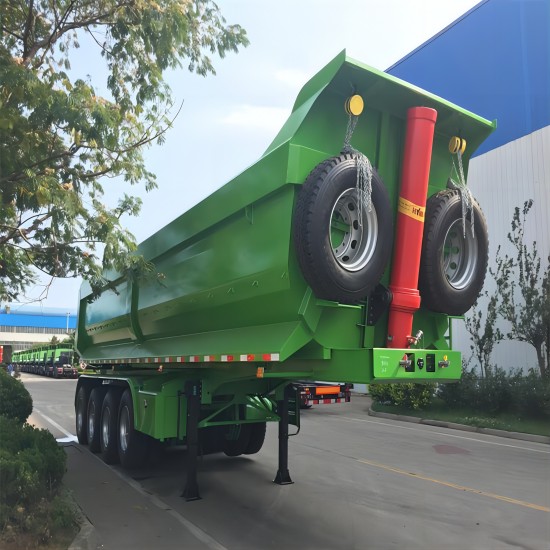

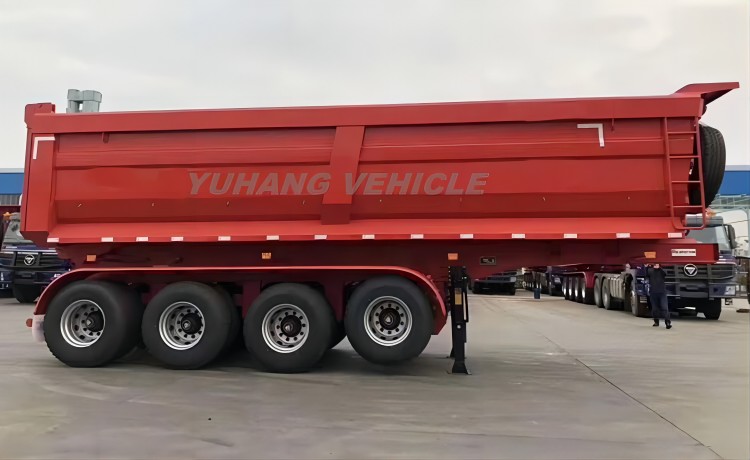

4 axle dump semi trailer with best price
2. Different types of dump trailer for sale
YUHANG dump trailer can be applied in many fields, such as: construction, agriculture, industry, mining, etc. We have different shapes and types of dump trailers for sale, divided into rear dump trailer and side dump trailer.
Rear Dump Trailer
The frame and the main beam of the cargo compartment of the rear dump trailer are all made of high-quality high-strength steel plates, which have a strong loading capacity and no permanent deformation, and can adapt to various complex and bad road conditions. The cargo box has two design structures, U-shaped and rectangular, and the height of the box body can be selected in various ways to effectively meet the diverse and personalized transportation needs of users. The application of the rear dump trailer has effectively improved the efficiency of cargo loading and unloading and transportation.

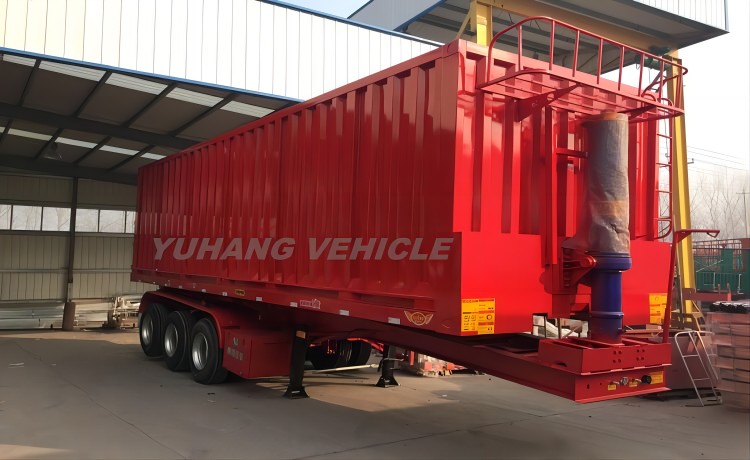

60-80 ton hydraulic lift rear dump trailer
Side Dump Trailer
The side dump trailer has been widely used in real life, and it is mostly used to transport bulk granular goods, such as: building materials, ores, sandstones, and coal. The side dump trailer is equipped with multiple hydraulic lifting structures at the bottom of the compartment, and the cargo unloading operation is performed by turning over the compartment. YUHANG side dump trailer can perform two-way cargo box flipping and unloading operations. All of our side dump trailers for sale are guaranteed to be of the highest quality.

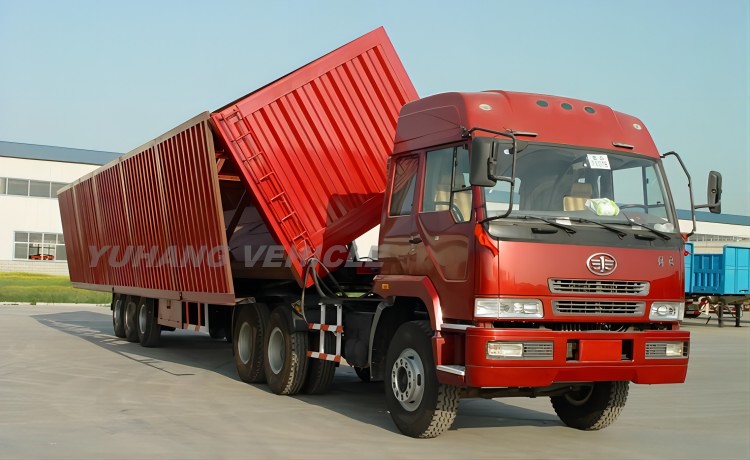

Tri axle side dump trailer for sale near me
3. Dump semi trailer specification and capacity?
As a professional dump semi trailer manufacturer, YUHANG brand tipper semi trailers are well received by users for their excellent quality and humanized design, accounting for 25% of the dump trailer market share. Currently, we have 2 axle, 3 axle, 4 axle, 5 axle, 6 axle, 50 ton, 60 ton, 80 ton, 100 ton dump truck trailers for sale. According to the different loaded goods, the semi dump trailer has a capacity of 30 ton to 80 ton, 80 ton to 120 ton, 120 ton to 200 ton and other different tonnage levels for you to choose.
The common dump semi trailer loading volume is 30 cubic meters, 35 cubic meters, 40 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on. We can customize and design hydraulic dump trailers for you according to your actual shipping needs.
If you need, our YUHANG factory can also customize multi-axle dump semi trailers for you. We have a team of professional engineers who are very familiar with the road conditions and local regulations in various countries, and will answer your questions and provide transportation solutions for you.
Before you place an order, our technical department will confirm the drawing details of the dump trailer with you to ensure that it can serve and work better for you.
Different shape of dump semi trailer for sale
4. YUHANG tipper semi trailer drawings and technical parameters
Model: YUHANG tipper semi trailer for sale
Payload: 30-120 tons or customized
Overall Dimension: 9500mm*2500mm*3900mm or customized
Main Beam: height 500mm, upper plate 16mm, web plate 10mm, bottom plate 18mm
Side Beam: 18mm channel steel
Lifting System: HYVA hydraulic lift cylinders
King Pin: JOST brand 90#
Landing Gear: JOST 28 tons
Suspension: heavy duty mechanical suspension
Leaf Spring: 90mm x 13mm x 10 layers
Axle: 13 ton/16 ton FUWA/BPW brand
Tire:12.00R22.5 or 315/80R22.5
Accessories: one standard toolbox
Brake System: WABCO
Electrical System: 24V, LED lights

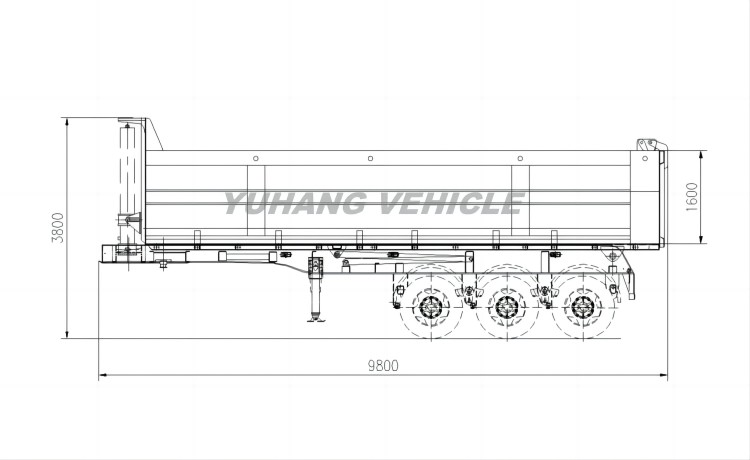

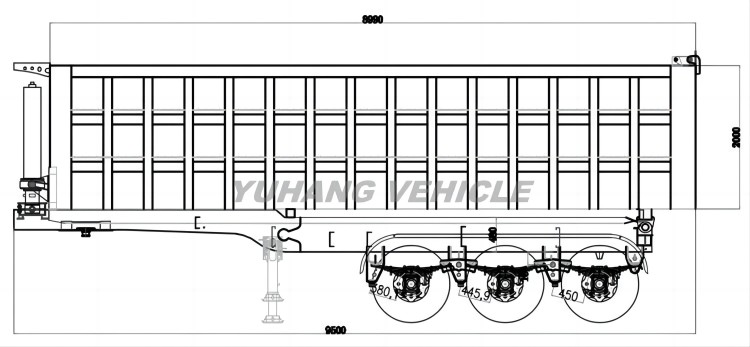

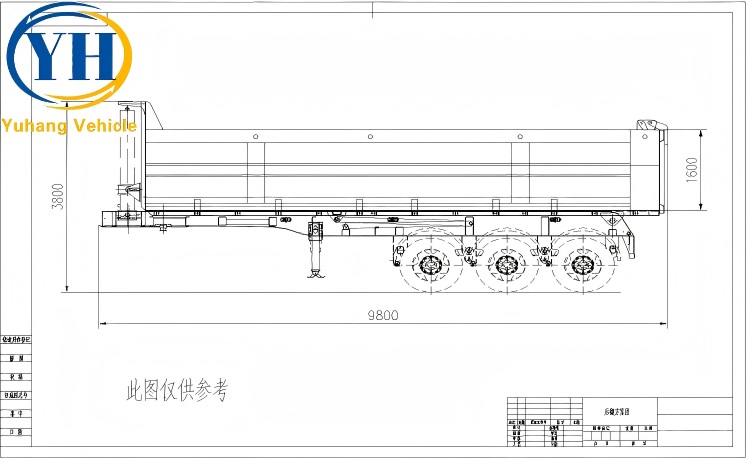

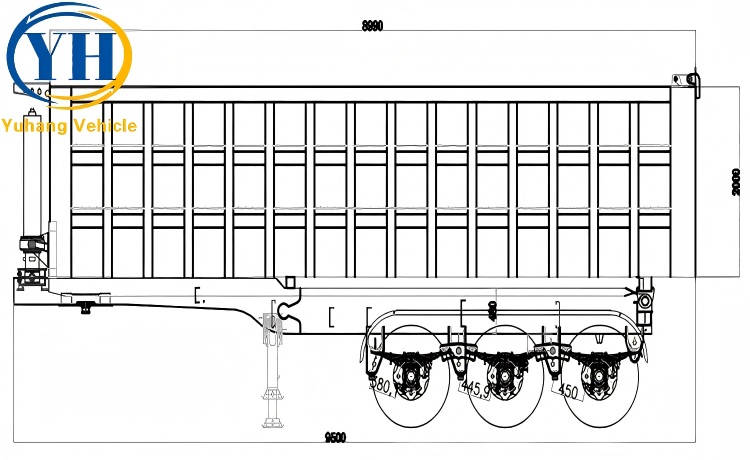

3 axle tipper semi trailer technical drawing
U shape 80 ton semi tipper trailer technical design drawing
5. Dump trailer picture & video
Through the pictures and videos below, you can learn about our different types of semi dump trailers:

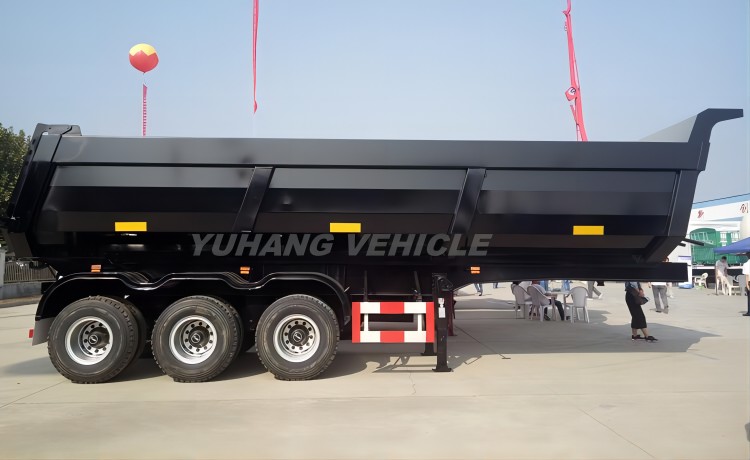

2023 brand new semi tipper trailer for sale

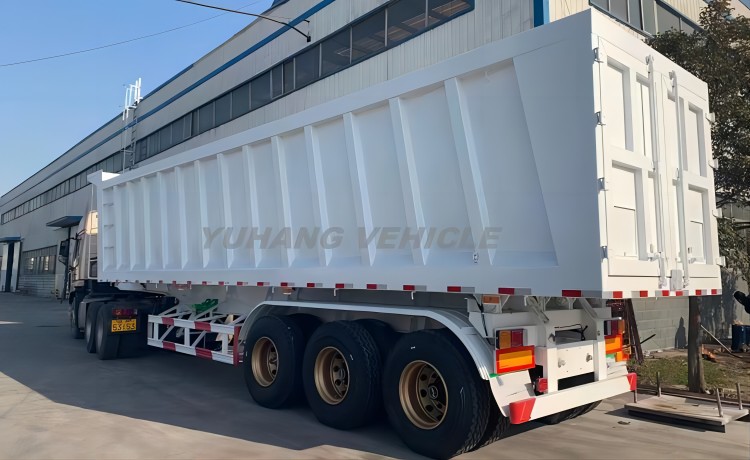

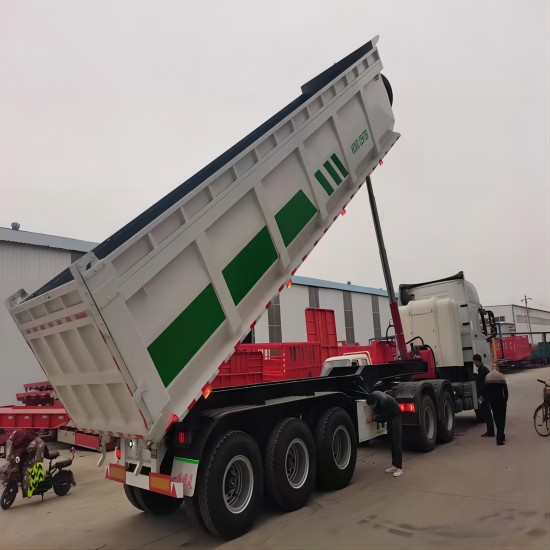

Tri axle rear tipper truck trailer in working
6. What is the working principle of a dump trailer?
The hydraulic lifting system of the dump semi trailer is composed of fuel tanks, hydraulic pumps, distribution valves, lifting hydraulic cylinders, control valves and oil pipes and other components.
The working principle is: the tractor engine drives the hydraulic pump through the transmission and the power take-off device, the high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe, and pushes the piston rod to tip the carriage. By controlling the movement of the piston rod through the operating system, the carriage can be stopped at any desired inclined position. After the cargo is unloaded, the compartment is reset by its own gravity and hydraulic control system.
It is worth mentioning that the YUHANG brand dump trailer can be equipped with an electro-hydraulic lifting system, which can be lifted quickly and smoothly, and can be controlled with a remote control, which has higher safety.
All of our dump semi trailers for sale use high-quality Chinese famous brand HYVA hydraulic cylinders, which have the characteristics of strong lifting force, high lifting height, and fast unloading.

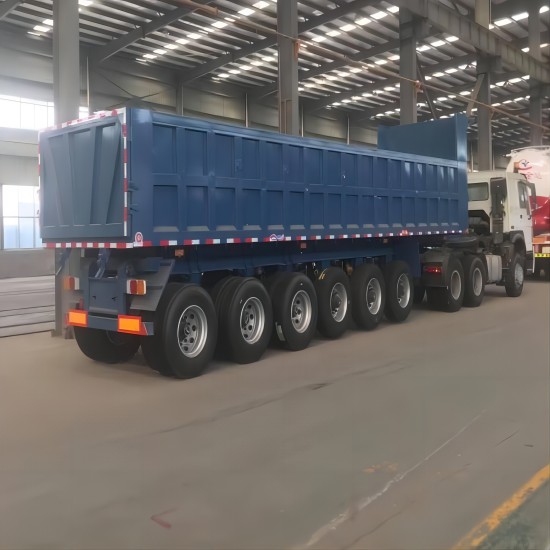

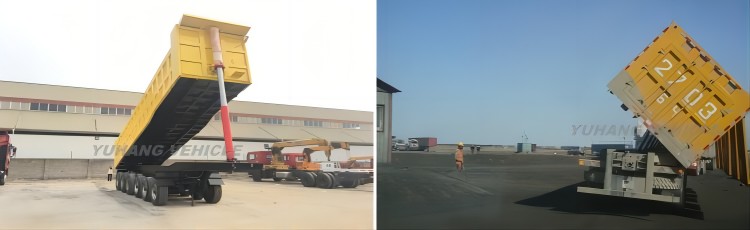

6 axle 120 ton heavy duty tipper trailers VS 3 axle side tipper trailer
7. What are the components and structures of the dump semi trailer:
Dump Semi Trailer Structure
Dump semi trailer is mainly composed of compartment, chassis, hydraulic lifting system, sub-frame, landing gear (support device), suspension, axle (axle assembly), electrical circuit, protective net, tool box and other components.
It is mainly used to restrain the loaded goods. The box body is made of high-strength cold-rolled steel plate, which has strong bearing capacity, large space, and no permanent deformation.
The high-strength performance and complete steel chassis reinforced and welded by the center beam can flexibly cope with the load-bearing gravity. With solid road suitability, it can run safely on many poor road surfaces.
3. Hydraulic Lifting System
Manipulate the power take-off device of the gearbox of the tractor to drive the hydraulic pump to work. The hydraulic pump sucks the hydraulic oil in the hydraulic oil tank through the low-pressure oil inlet pipe and generates high-pressure oil for output. The high-pressure oil output by the gear pump enters the lift valve through the high-pressure oil pipe, and lifts Under the control of the air control valve, the valve sends high-pressure oil to the cylinder or discharges it into the hydraulic oil tank to realize the lifting, stopping and lowering functions of the hydraulic cylinder.
4. Landing Gear
The device used to support the front load of the 3 axle tipper trailer price that is separated from the tractor is composed of a base, a pull rod transmission mechanism, an inner square tube, an outer square tube, a gearbox, and a control handle.
The mechanical leaf spring is fastened on the shaft body of the axle with U-shaped bolts, and the two ends are fixed on the frame, and are connected in series through the balance arm to transmit load and reduce vibration.
6. Axle Assembly
Consists of tires, steel rims, hubs, brakes and axles.
7. Gas Path
A device used for normal driving braking and emergency braking. It is composed of air connector, inflation pipeline, control pipeline, emergency relay valve, air storage tank and brake air chamber.
It plays the role of lighting and signal transmission. It is connected with the tractor by the seven-star plug, and the wiring is generally hidden in the frame.
Prevent external objects from entering the lower part of the car body, and play the role of protection and blocking.
It is used to hold tools, raincloths, ropes and other items that are carried.

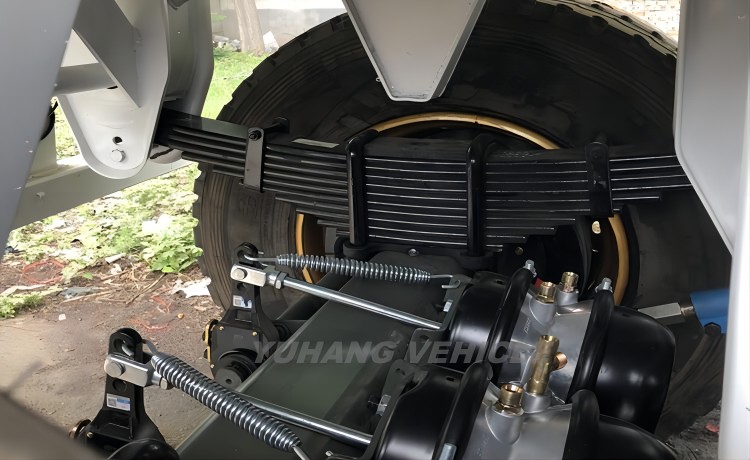

Our dump trailer axle, suspension, leaf spring, air chamber for detail show
8. What are the features of YUHANG dump trailer?
The main features of YUHANG dump trailer are:
(1) Low center of gravity
The sub-beam at the bottom of the carriage adopts the Omega structure, which is organically combined with the main beam of the chassis, which reduces the height of the load-bearing surface and the center of gravity of cargo loading, and improves the safety and stability of the vehicle.
(2) Optimized design structure
Advanced computer-aided design software is used to optimize and analyze the vehicle structure, and the chassis structure is scientifically designed by using tracking data, and the load is divided reasonably to ensure that the trailer always has the best load-bearing performance.
(3) Lightweight frame
Lightweight frame, optimized load rating. The scissor brace and double web structure are adopted in key parts. It ensures the structural strength while reducing the weight, increases the stability of the car body lifting, and greatly reduces the risk of rollover.
(4) High-strength steel
The carriage floor and side panels are made of high-strength steel, which has the advantages of wear resistance and impact resistance. Improve trailer application ability and prolong service life.
(5) New specification accessories
In order to further reduce the weight of the trailer itself, accessories such as light-duty outriggers, aluminum alloy toolboxes, aluminum alloy guardrails, and aluminum alloy steel rings are optional.

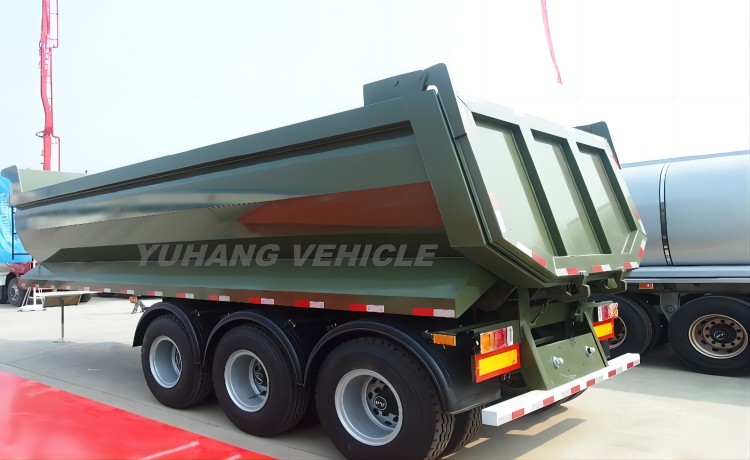

3 axle 60t tipper trailer for sale in Nigeria

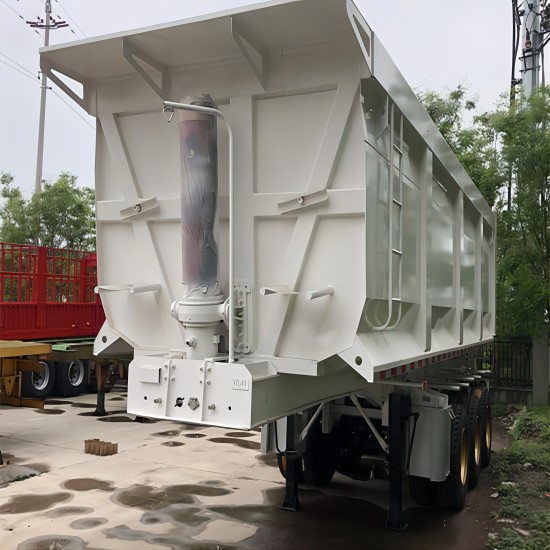

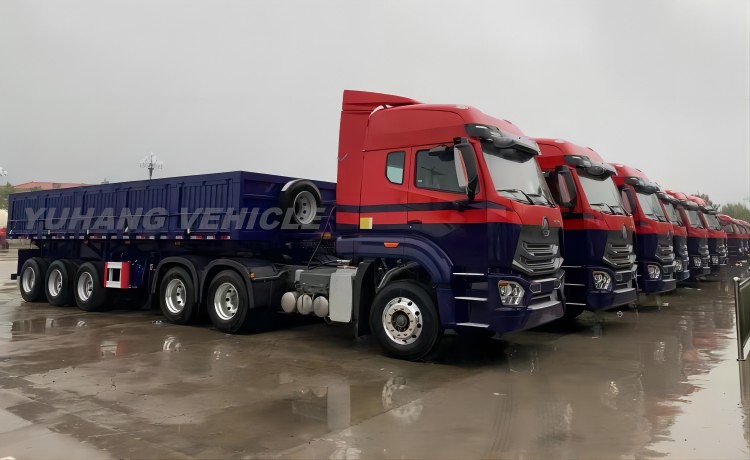

35cbm hydraulic dump trailer will be sent to Ghana customer
9. How to pack and ship the dump semi-trailer for customers?
YUHANG factory usually use bulk carriers or Ro-Ro ships to transport semi dump trailers, and sometimes choose HQ high cabinet containers for loading. We have professional and strictly trained staff responsible for the packaging and transportation of semi dump trailers, which can provide you with a good solution, saving time and cost.
Before transportation, we will spray wax for anti-corrosion treatment on the dump truck trailer for sale, and then seal them with tarpaulins to prevent seawater and rainwater erosion.
Under normal circumstances, it takes about 30-50 days for the customer to receive the semi dump trailer as scheduled. Please be patient and ready to receive.

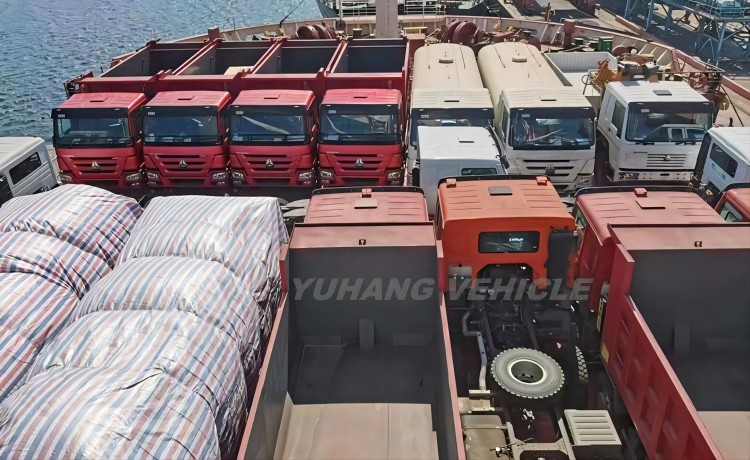

Heavy duty dump truck trailers transport plan
10. How to improve the safety of dump trailers?
Due to the heavy weight, large blind spots and difficult braking of dump semi trailers, the losses caused by accidents are unimaginable. Therefore, customers should not only pay attention to their own needs but also ensure that they have absolute safety before purchasing dump trailers. In fact, as long as the dump trailer is equipped with the necessary safety structure configuration, the safety is still very guaranteed.
The weight of the dump truck trailer is heavy, and the long braking distance has been criticized, especially after the heavy load, it will be more difficult for the vehicle to brake. YUHANG brand dump trailers have been greatly upgraded in this respect. It uses larger brake pads of 410mmx200mm (regularly 400mmx150mm), and is equipped with an ABS anti-lock braking system, which shortens the braking distance of the vehicle and improves safety performance.
Tire pressure detection configuration
Tires are the only part of the vehicle in contact with the ground. Changes in the tire pressure of the vehicle will affect the fuel economy and safety of the vehicle. If the tire pressure is not within the normal range, it may cause increased fuel consumption or tire blowout accidents. The TPMS tire pressure detection system can help drivers know the tire pressure of the vehicle at any time, so as to make timely adjustments to avoid losses caused by excessively high or low tire pressure, and the vehicle will run more safely.
Dump trailer rollover is a common traffic accident. If the driving situation is complicated in rainy or snowy days, problems are more likely to occur. The front and rear axles of the YUHANG dump trailer are respectively equipped with anti-rollover stabilizer bars, which greatly improves the safety performance, and there is also a horizontal double hydraulic shock absorber under the cab, which can also prevent the vehicle from rolling over.
11. Common problems and solutions in the process of using dump trailers
Let’s take a look at the common problems and solutions of dump trailers:
(1) Why press the lift switch on the instrument panel, the car is lowered; press the down switch on the instrument panel, the car is lifted?
Answer: This is because the solenoid valve controlling the lifting and lowering is reversed. There are three ways to eliminate: ① swap the wires of the lift and lower switches on the dashboard; ② swap the wires of the solenoid valve that controls the lift and drop; ③ swap the two air pipes of the distribution valve.
(2) The dump semi trailer does not lift?
Answer: The dump semi-trailer does not lift and the following components should be checked.
Power take-off: first check whether the transmission shaft connected to the oil pump rotates. If it does not turn, it means that there is a problem with the power take-off (the solenoid valve of the power take-off or the power take-off itself); if it turns, it means that there is no problem with the power take-off, and other parts should be further checked.
Oil pump: ① Whether the rotation direction of the oil pump is correct. Stretch out the left hand, the thumb is facing the spline of the oil pump, and the rotation direction of the other fingers is the same, it is a left-handed pump, otherwise it is a right-handed pump. ② Whether the oil pump is damaged. If the oil pump is worn out, the high and low pressure chambers of the oil pump will be connected, making it impossible to pump oil.
Distribution valve: ① Check whether there is air in the air pipe on the distribution valve. Press the lift and lower switch to see if there is air in the two air pipes on the distribution valve. If there is no air, it means that the solenoid valve controlling the lifting and lowering is faulty, and the solenoid valve should be replaced. ② Whether the distribution valve is damaged.
(3) Is the lifting speed of the carriage adjustable, and is it a fault that the automatic lowering is faster?
Answer: The lifting speed cannot be adjusted. If the lifting speed is too fast, it is a fault phenomenon and should be checked in time.
(4) What are the important components of the hydraulic lifting system, and what are their functions?
Answer: Oil pump—oil supply; one-way valve—controls the flow of oil; distribution valve—controls the lifting and lowering of the carriage; oil cylinder—produces thrust.
(5) Why does the gear pump have “tooth beating” phenomenon? How to exclude?
Answer: Sometimes when the PTO takes power, the gear pump makes a rapid “click, click… sound”, which is mostly caused by insufficient oil intake of the oil pump. This phenomenon of the new semi dump trailer may be caused by the oil inlet pipe of the oil pump being too thin or the oil inlet pipe being sucked. The oil inlet pipe should be thickened and the oil inlet pipe with higher strength and hardness should be used. The dump truck trailer that has been used for a period of time may be caused by the aging of the oil inlet pipe and the suction, or the filter screen of the oil outlet of the oil storage tank is blocked, resulting in poor oil inlet. If all possibilities are ruled out, the oil pump is only damaged and should be replaced in time.

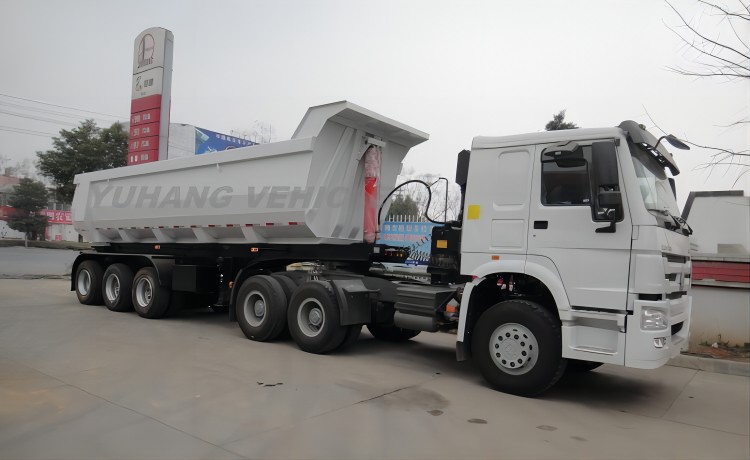

Triaxle dumper semi trailer for sale

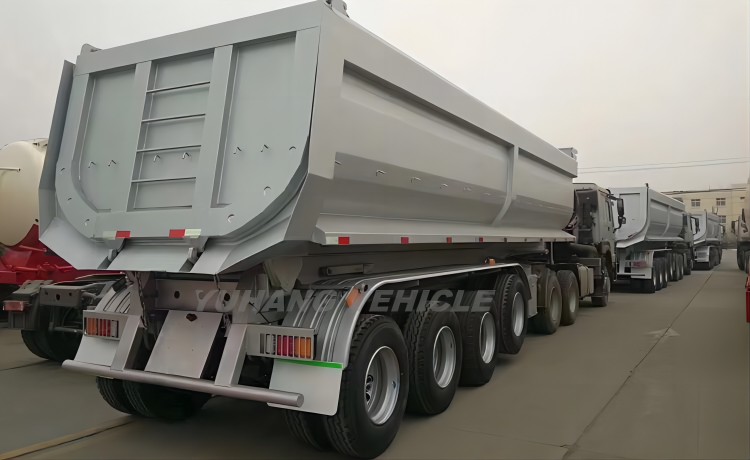

High quality 4 axle dump truck trailer manufacturer—YUHANG
12. How to properly maintain our dump semi trailer?
Semi dump trailers are special vehicles that unload cargo by themselves through hydraulic or mechanical lifting, and require frequent maintenance. In order to prolong the service life and working performance of the trailer, the following will give you a detailed introduction to the maintenance knowledge of dump trailers.
1. To maintain the hydraulic system of the tipper semi trailer, the impurities inside the hydraulic oil tank must be cleaned before changing the oil, and the oil must be kept clean at all times and replaced regularly. If there are impurities in the operation of the hydraulic system, they will enter the valve group and the oil cylinder along with the pipeline, which will cause the valve group to get stuck or damage the seal in the oil cylinder, affecting the normal use of the lifting system.
2. Regularly test the battery of the dump truck trailer to check whether the battery is firm and whether the electrolyte is within the normal range. It is also necessary to check the tires of the vehicle, and check the tire pressure of the vehicle at room temperature. If it is lower than the normal standard, the tire pressure should be replenished in time.
3. Always check whether the parts of the vehicle are damaged or missing, and check whether each screw is fastened one by one to protect the safe operation of the vehicle.
4. Regularly check whether the retarder is working normally, and whether there is any hidden danger in the meshing of the connecting rod gear.
5. Since the chassis of the trailer is close to the ground, it is inevitable that there will be sewage splashed on the chassis when passing through some puddles or muddy puddles, and the stones on the road will also form a certain external impact on the chassis, which will cause damage to the chassis over time. Therefore, we must pay attention to the cleaning and anti-rust treatment of the vehicle chassis, and repair it immediately when the chassis is found to be damaged.
6. The acidic substances in the rainwater will cause strong corrosion to the metal surface of the vehicle and accelerate the damage of the dump trailer. Therefore, the vehicle body can be waxed and glazed to form a dense protective film on the surface to avoid rain erosion.
13. How to buy a qualified tipper trailer?
First, we need to determine whether the semi dump trailer waiting to be purchased is up to the job. You can tell YUHANG the type and load level of the goods that need to be transported, and we will provide you with professional advice.
Second, refer to the local laws and regulations of the country and use whether there are clear loading weight restrictions and regulations on dump semi-trailers. This is very important, and it is related to whether the dump trailer can successfully have a license plate and put it into work.
Third, what is the working environment and road conditions of the dump trailer? Because bad road conditions and flat road conditions have different configuration requirements for dump trailers. According to the conditions, we need to make some adjustments to ensure that the dump truck can serve you better.
Fourth, you need to inform the sales manager about the detailed technical data of the dump trailer, and then we will confirm the specific specifications, trailer drawings and price range for you.
Welcome to you contact us at any time or send inquiry information directly to the “YUHANG” website, and we will reply to you as soon as possible.
