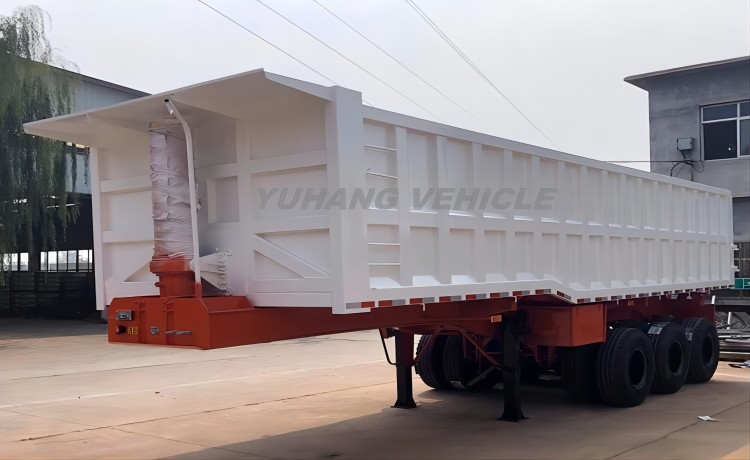

45CBM Rear Dump Trailer

The structure of the 45cbm rear dump trailer includes: chassis, box body and lifting system. YUHANG tipper semi trailer has strong loading capacity, high work efficiency and save labor cost for you.

16800 USD

Model: 45cbm rear dump trailer

Hydraulic System: HYVA cylinder

Delivery Date: 15-25 days

Applications: transport coal, sand, earthwork, building materials




The 45cbm rear dump trailer is widely used for the transportation of bulk goods such as: sand, coal, grain, earthwork, construction materials, and is usually used in conjunction with excavators or other machinery.

We have different types tipper semi trailer for sale, it is composed of chassis, box body, lifting system and other structures. The hydraulic cylinder is used to lift the cargo compartment to the designed angle, and the cargo slides out.

YUAHNG 45cbm rear dump trailer is made of high-strength steel plate, which has strong loading capacity, good compression resistance, and is durable.

Our dump trailer have the best quality and the lowest price, and have accumulated valuable success stories in more than 40 countries in Southeast Asia, Africa, and South America. Welcome to your inquiry!

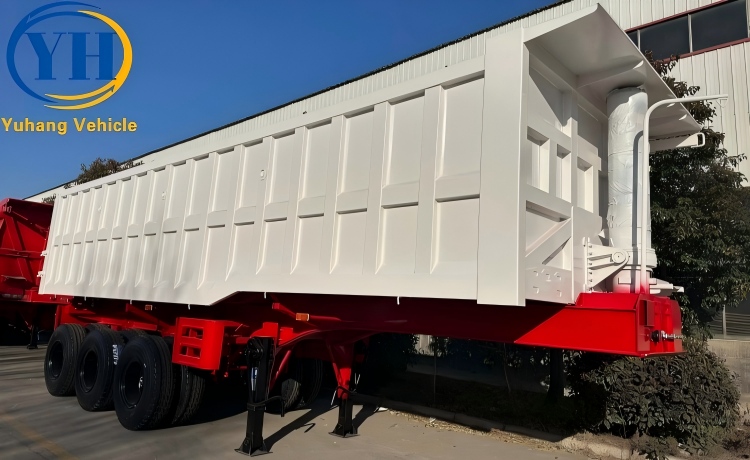

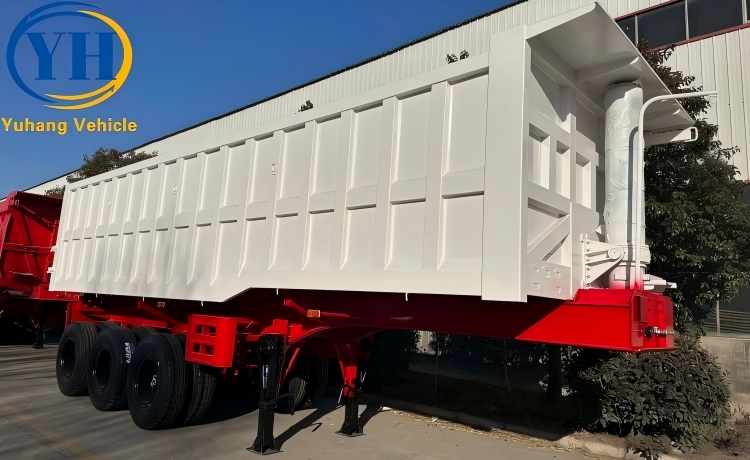

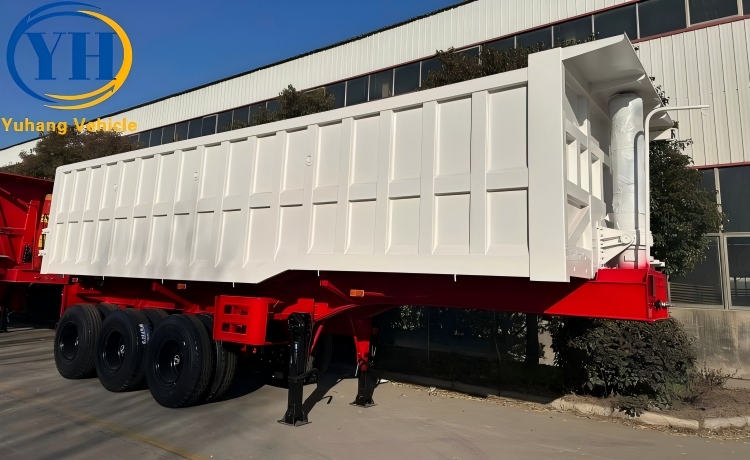

45CBM Rear Dump Trailer-YUHANG VEHICLE45cbm rear dump trailer for sale

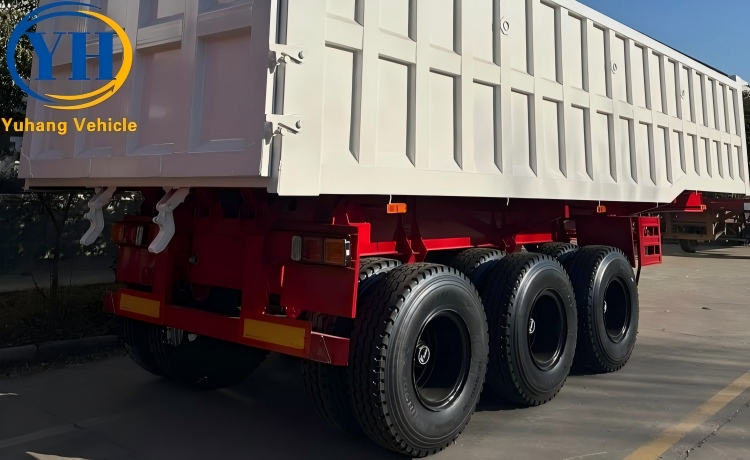

45CBM Rear Dump Trailer-YUHANG VEHICLE3 axle tipper semi trailer price


The beam and longitudinal beam of the 45cbm rear dump trailer are made of high-quality manganese plates, which have high strength and good toughness, and meet the requirements of heavy cargo.

The trailer frame adopts robot automatic tracking welding technology throughout the whole process, with high welding quality, dense and firm solder joints, and no missing welding.

Equipped with widened and thickened leaf spring suspension to reduce the impact of cargo and can be applied to more rugged and complex road conditions.

Heavy-duty HYVA hydraulic cylinder with wider diameter, stronger lifting capacity, higher height, stable lifting and no rollover.

All accessories are selected from world-renowned brands, long-term repeated cooperation, the service life can reach more than 10 years.


Manufacturer: YUHANG 45CBM Rear Dump Trailer

Dimension: 11.5m*2.5m*3.5m or customized

Main Beam Height: 500mm, high strength steel

Box Thickness: side 4mm, bottom plate 6mm

Lifting System: HYVA hydraulic cylinder

Loading Volume: 45cbm or customized

Axle: 13T/14T/16T BPW/FUWA brand

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: heavy duty mechanical suspension

King Pin: JOST brand 3.5 inch

Landing Gear: JOST brand 28 tons lifting capacity

ABS: optional

Painting: polyurethane anti-corrosion paint

Accessories: one standard tool box and spare tire carriers

Shipping Terms: bulk carrier or Ro-Ro ship
