1. What is a removable gooseneck lowboy trailer?
Here I will highlight the removable gooseneck lowboy trailer for you.
Removable Gooseneck Lowboy Trailer (RGN): the removable gooseneck lowboy trailer falls into the category of lowbed semi trailer. Mainly used for transporting excavators, bulldozers, loaders and other large machinery and equipment. Removable gooseneck lowboy trailers with 2 axle, 3 axle, 4 axle, 5 axle and more axles are the most used vehicle models with loading capacities of 60/80/100/120/150/180 tons or more.
The characteristic of this kind of trailer is that the gooseneck is equipped with a power unit and a hydraulic device, which can quickly separate the gooseneck from the load-bearing platform, allowing the mechanical equipment to move from the front end of the trailer to the working platform, thus completing the entire loading process. You can do this by raising the trailer chassis as high as possible above the ground, depending on the height of the tow vehicle’s “fifth wheel.”
Relatively speaking, this loading and unloading method is faster, more convenient, safer and more reliable. It is your best transportation choice for excavators, bulldozers and other large and heavy machinery and equipment.

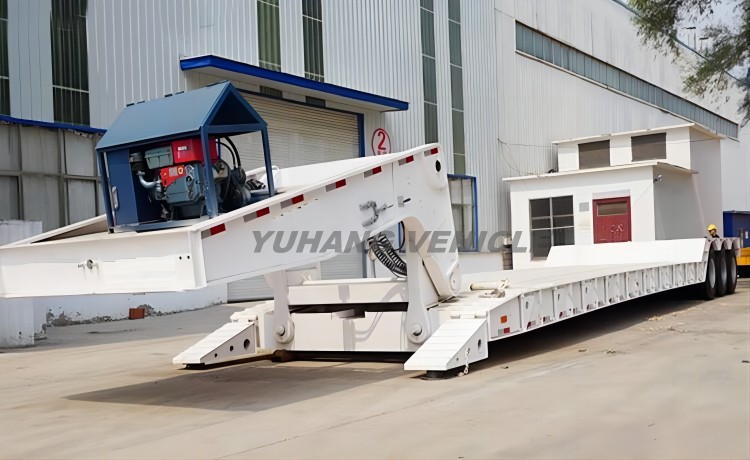

3 axle removable gooseneck 60 ton lowboy trailer for sale

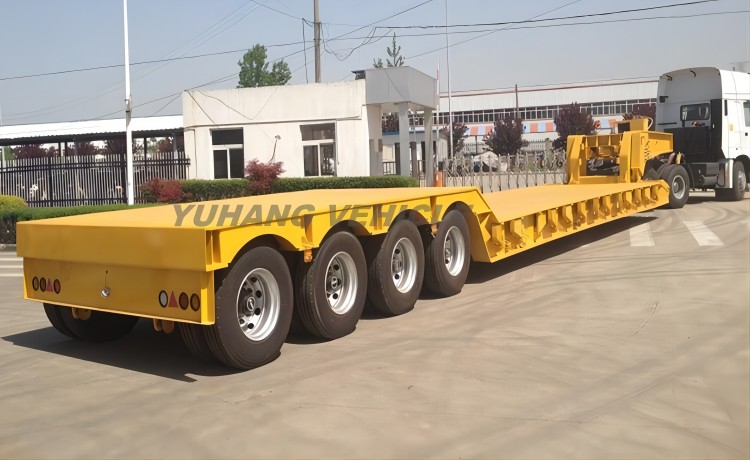

YUHANG 4 axle 100 ton detachable gooseneck trailer with best price
2. Two common structures of detachable gooseneck trailer.
Detachable gooseneck trailer have a wide range of applications. This vehicle was originally designed to load and transport heavy cargo without violating safety standards and without placing the driver in a dangerous transportation environment. For example, using traditional trailers to transport heavy machinery equipment and other goods, even if there is no height limit, will bring transportation risks due to the high center of gravity of the goods.
However, the transport performance of the detachable gooseneck lowbed trailer is more stable than other trailers. This detachable gooseneck design structure allows many lowbed transport trailers to more easily move large machinery and equipment and other cargo without violating height restrictions, and has a higher safety factor in situations, such as: large-angle turns.
YUHANG factory mainly serves the transportation of large and heavy goods, providing customers with the most economical, environmentally friendly and efficient transportation solutions. YUHANG is the best semi trailer manufacturer and service provider in China. The number of axles, load-carrying level, external dimensions and composition of our detachable gooseneck trailers can be deeply designed and customized based on actual transportation needs.
Ordinary detachable gooseneck trailer is mainly used to transport 50 ton, 60t RGN lowboy trailer for sale, 80 ton and 100 ton bulk cargo and 120 ton heavy machinery and equipment. The number of axles is generally 2 axle, 3 axle, 4 axle, or 5 axle for you to choose. The other type is a detachable gooseneck heavy-duty transport trailer, which is mainly 2 line 4 axle, 3 line 6 axle, 4 line 8 axle or 5 line 10 axle. The rear end of the vehicle has a “well-shaped” design structure and the tires are exposed. Its advantage is that through the “double drop” height, the overall height of the cargo loading and unloading area can be further reduced, making the center of gravity of the cargo lower and the transportation process safer. It can be used to transport a variety of heavy-duty and extra-long, extra-wide and extra-height cargo, including industrial equipment, oil and gas storage tanks, rail vehicles or oversized containers.

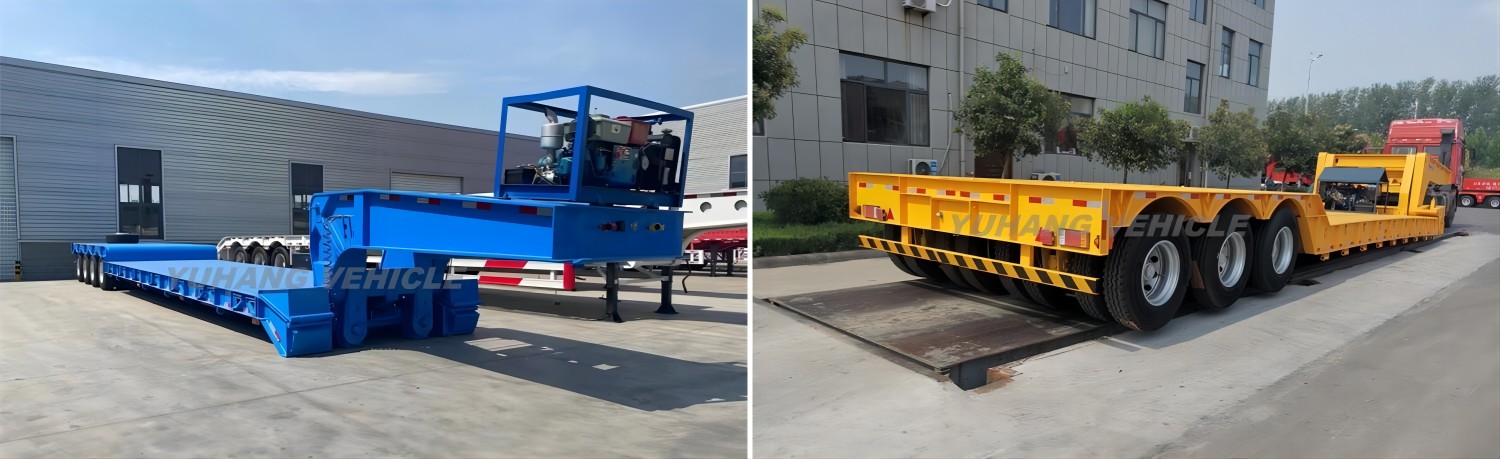

Triple axle hydraulic detachable gooseneck lowboy trailer VS 3 line 6 axle detach lowbed trailer
3. How do our detachable gooseneck semi trailer work?
Pay attention to detachable gooseneck semi trailer for sale near me. During the process of removing the gooseneck, you must first detach the front gooseneck of the trailer from the tractor saddle. The principle of operation of most types of detachable gooseneck trailers is the same.
The detachable hydraulic gooseneck consists of the traction section and base. Among them, the traction part has horizontal longitudinal beams (side longitudinal beams) spaced at a certain distance from each other, and the two are fixedly connected through a series of cross beams. The rear end of the traction part is inclined backward and downward at 45 degrees relative to the front end.
Connected to the front end of the gooseneck and the cross beam is a traction pin plate, on which is fixed a traction pin that is connected to the tractor saddle.
A mobile support is also included between the longitudinal beams on both sides of the traction part. The support includes a support arm with one end hinged to the cross beam and a cylindrical buffer at the other end. The buffer supports the frame at the rear end of the tractor saddle. Since the support arm is articulated, the buffer can be raised or lowered via a hydraulic cylinder connected to it. The control lever controls the expansion and contraction of the hydraulic cylinder through the oil circuit. When the hydraulic cylinder is extended and the support arm is lowered, the buffer supports the tractor frame and prevents the tractor part from rotating downward. This device can support the gooseneck during and after the separation of the gooseneck from the semi trailer to prevent it from rotating downward. Actuation of the control lever drives the hydraulic system to raise or lower the gooseneck of the support arm.
The bottom end of the gooseneck base is a flat surface that slopes forward and downward. This slope matches the slope of the front end of the semi trailer. The guide pin extending from the bottom end of the base can enter the area formed by the two guide plates at the front end of the semi trailer. At the front end of the gooseneck base near the bottom edge is a hole plate extending downward and beyond the bottom edge of the gooseneck base. The orifice plates are spaced a certain distance apart from each other, and the diameter of the circular holes on them can allow the protruding pin at the front end of the semi trailer to be smoothly inserted into the circular hole when the gooseneck is connected to the semi trailer. The stop pin shaft at the rear end of the gooseneck base passes through the fixing plate fixed on the base and is inserted into the stop pin hole on the semi trailer cargo bed to connect the gooseneck base and the semi trailer together.
Four hydraulic cylinders are hinged in parallel between the front end of the traction part and the top lifting lug in front of the base. Like traditional hydraulic cylinders, these four hydraulic cylinders are connected to the hydraulic system of the semi trailer through oil lines, and the telescopic movement of the piston rod is controlled by a control lever.
The gooseneck base consists of a pair of side risers fixedly connected by a top and bottom plate. The base is between the longitudinal beams on both sides of the traction part, and is hinged at the bottom end with the rear ends of the longitudinal beams on both sides through pins. The base can therefore rotate about a horizontal orthogonal axis relative to the traction portion.
The front end of the semi trailer is an inclined plane with a foldable slope on it. When the slope is turned down, it can be combined with the slope of the front end of the semi trailer to form a slope required for loading and unloading mechanical equipment. The distance between the two foldable ramps ensures that when the gooseneck is connected to the semi trailer, the gooseneck can enter the gap between the two without interference. At the front end of the semi trailer, a pair of forward protruding pins are fixed below the cargo platform plane. The pins can be smoothly connected to the orifice plate on the base of the gooseneck under the joint action of the guide pin and the guide plate.
Detachable hydraulic gooseneck lowbed semi trailers also include a safety lock system that prevents rotational movement of the base relative to the towing section. The safety lock system includes a cylinder connected by a pneumatic line and controlled by a control lever. The safety lock is controlled by the cylinder through a connecting rod system. Therefore, when the piston rod is extended, the telescopic pin is retracted into the inactive position, and when the piston rod is retracted, the telescopic pin is extended into the locked position.
As the gooseneck height decreases, the front bottom corner of the 80 ton removable gooseneck trailer lowers toward the ground and stays on the ground. Once all connecting components are safely removed, lower the cargo platform far enough to allow the tractor to tow the gooseneck. At this time you can easily load cargo from the detachable gooseneck semi trailer platform.

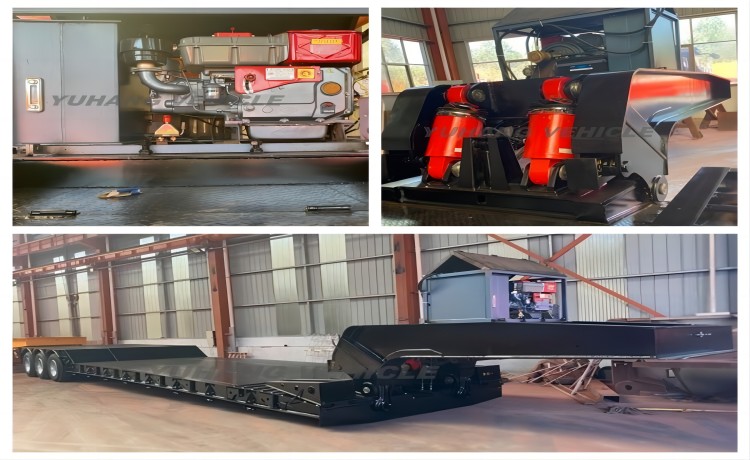

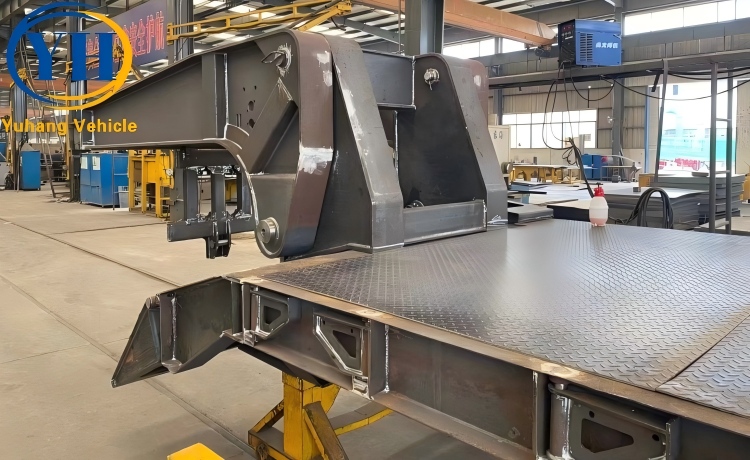

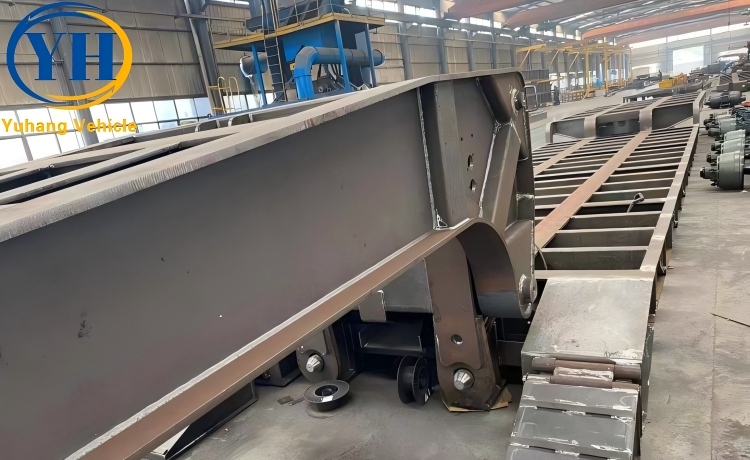

Our detachable gooseneck (RGN) lowboy trailer main structure
4. YUHANG RGN lowboy trailer specs, dimension and drawing
We export a large number of RGN lowboy trailers to many countries in Africa, Southeast Asia, South America, the Middle East and so on every year to help these customers conduct their transportation business more smoothly. Especially the 3 axle detachable gooseneck 60 ton lowboy trailer is the most popular.
Overall Dimension: 16000mm * 3000mm * 2500mm
Loading Capacity: 60 ton lowboy trailer for sale
Main Beam: height 500mm, upper plate: 22mm, middle plate: 10mm, lower plate: 20mm, material: Q345B high strength steel
Bottom Platform: 5mm thick checkered plate
Gooseneck: hydraulic removable gooseneck
Hydraulic Cylinder: 12KW diesel engine with hydraulic station
Axle: 3 axle * BPW/FUWA brand
Suspension: heavy duty mechanical suspension
Spring Leaf: 100(w)mmx16(thickness)mmx10 layers
Tire: 12 units
King Pin: JOST brand 50# or 90#
Landing Gear: JOST
Brake System: WABCO valve
Electrical System: 24V, LED lights
Color: optional
More Gooseneck Lowboy Trailer Drawing Display

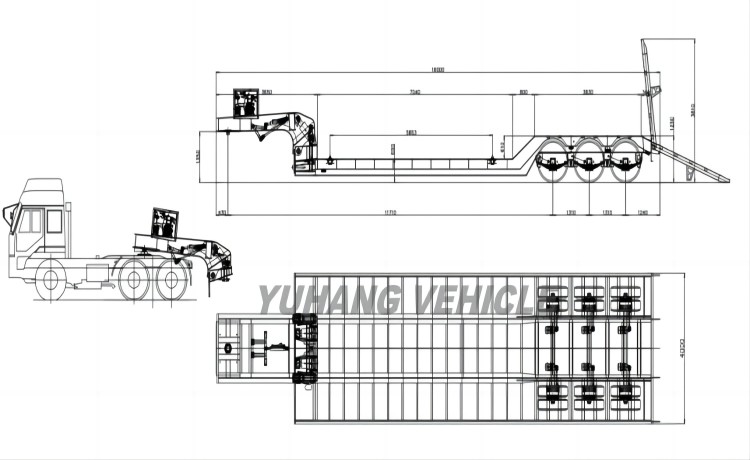

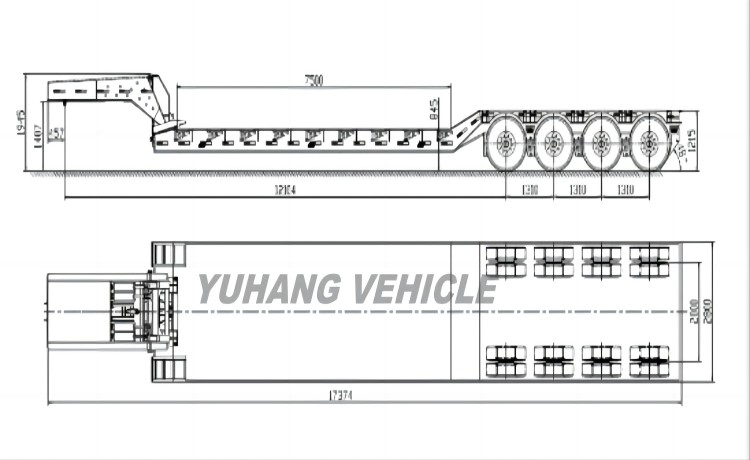

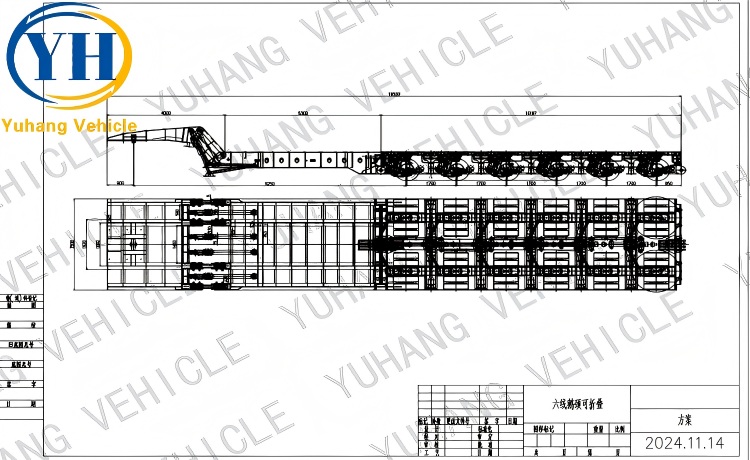

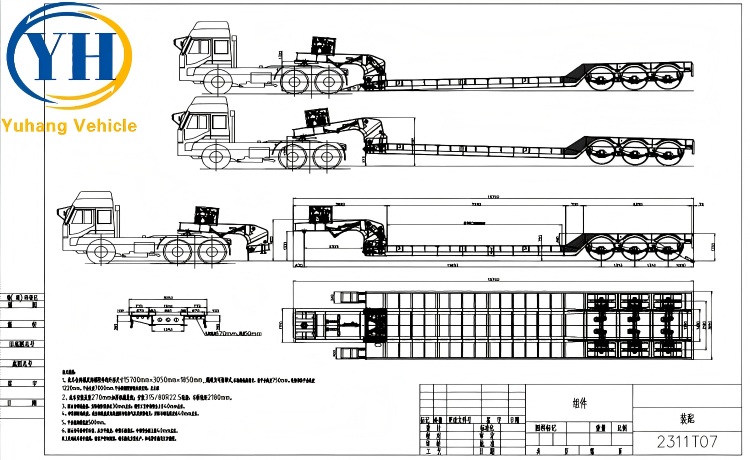

3 axle 16.5m detachable gooseneck lowboy trailer design drawing4 axle rgn lowboy semi trailer for sale drawing

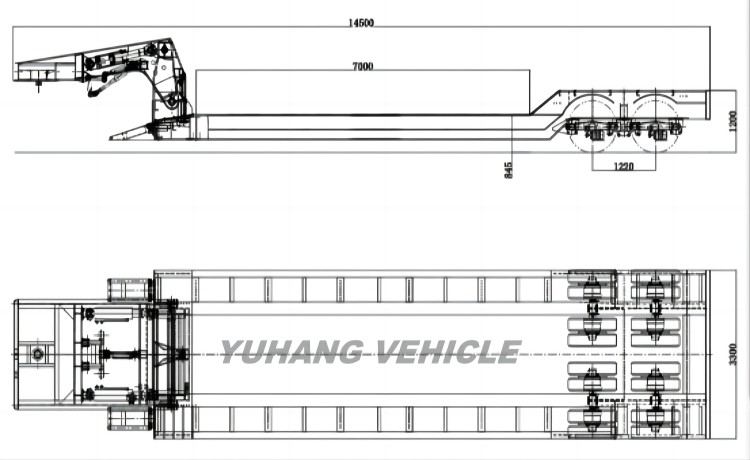

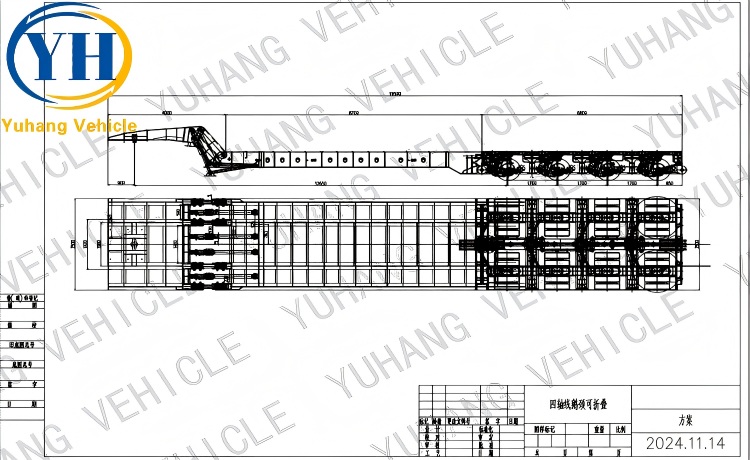

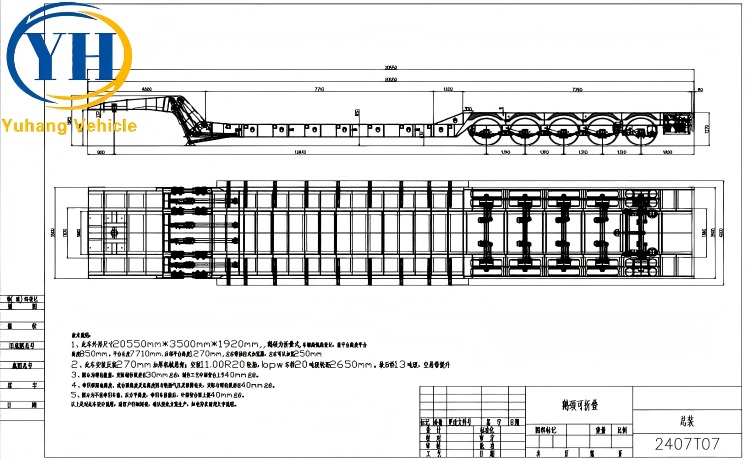

YUHANG 2 line 4 axle lowboy detachable trailer technical drawing

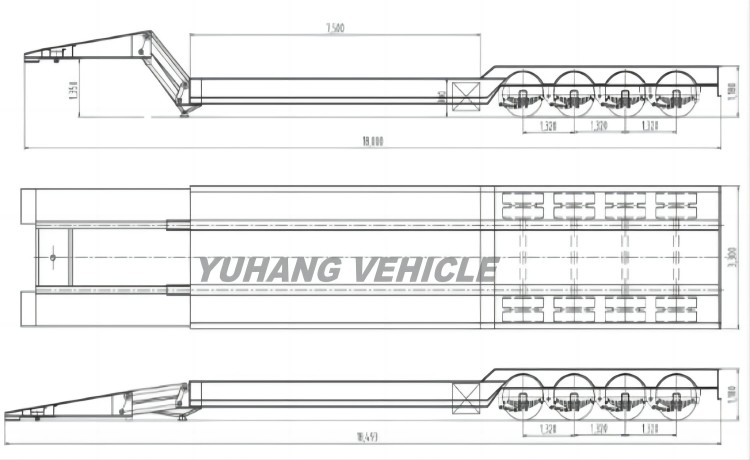

4 axle folding gooseneck lowboy trailer manufacturer

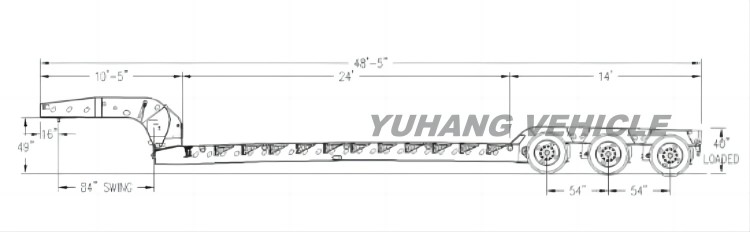

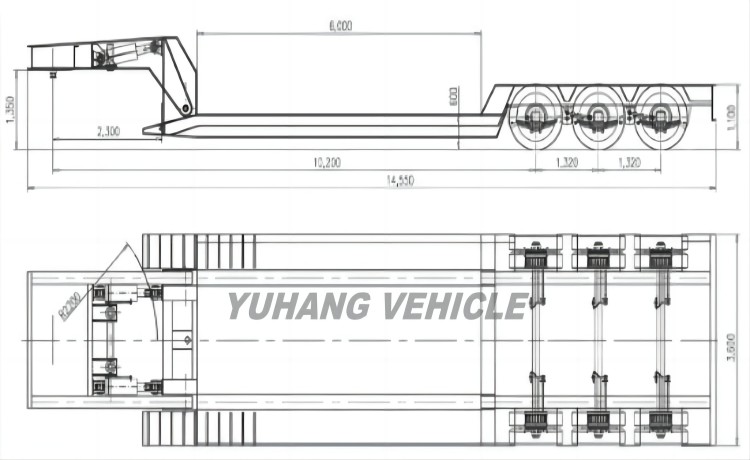

Tri axle lowboy front loading trailer drawing designChina 60 ton gooseneck trailer factory–YUHANG VEHICLE
5. Our detachable gooseneck trailer picture and video display
YUHANG factory will conduct pressure test and loading performance test on all completed hydraulic gooseneck detachable trailer price to ensure that they all have accurate operating data and high quality.
At the same time, we provide you with complete picture and video of the detachable gooseneck trailer for sale to help you understand all the details in more detail.

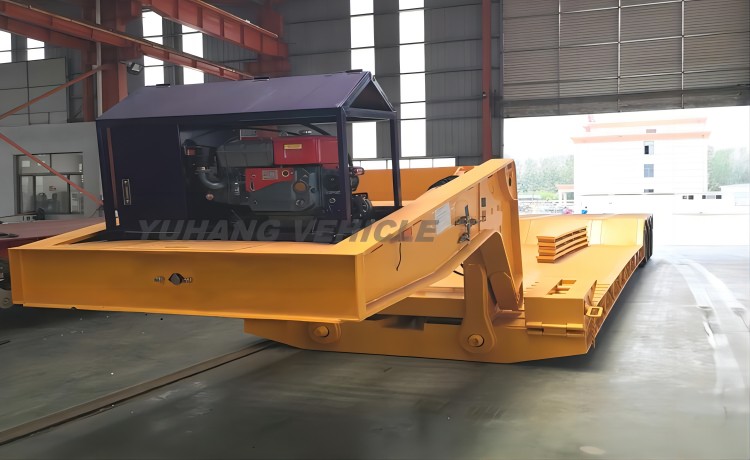

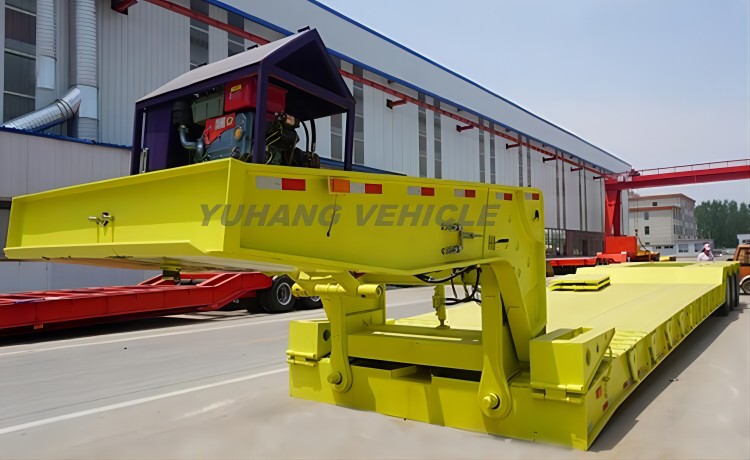

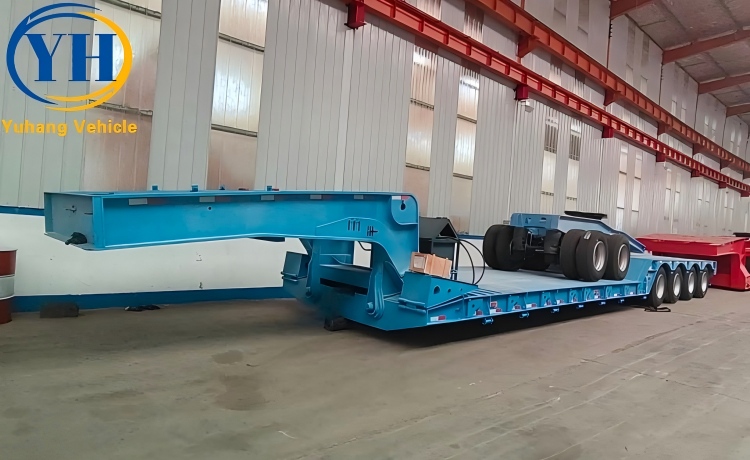

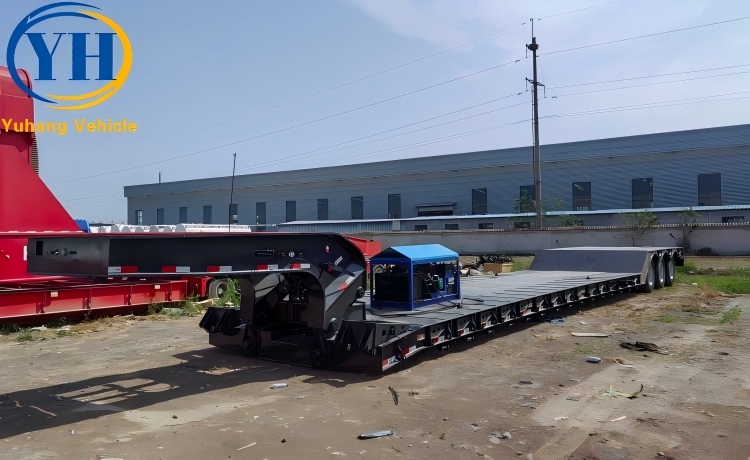

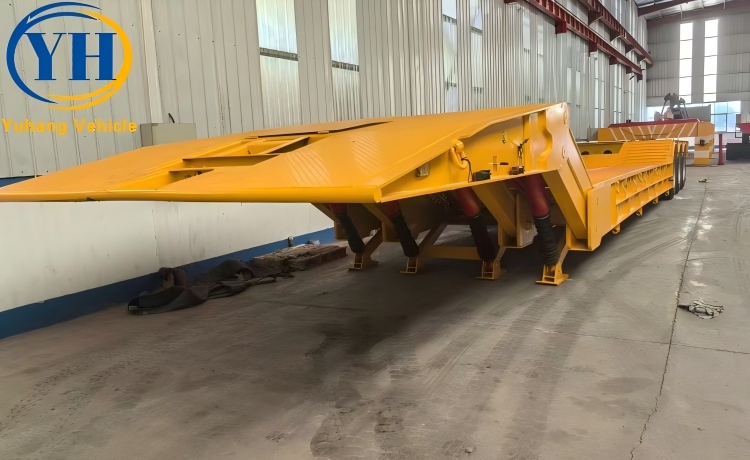

Triple axle 60 ton gooseneck trailer with diesel engines

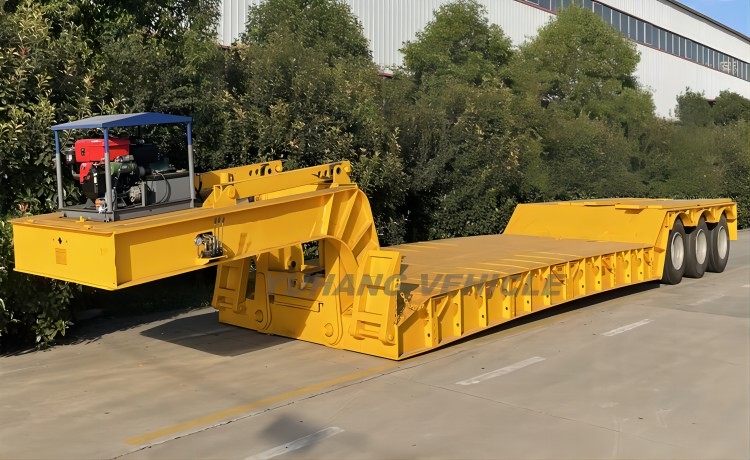

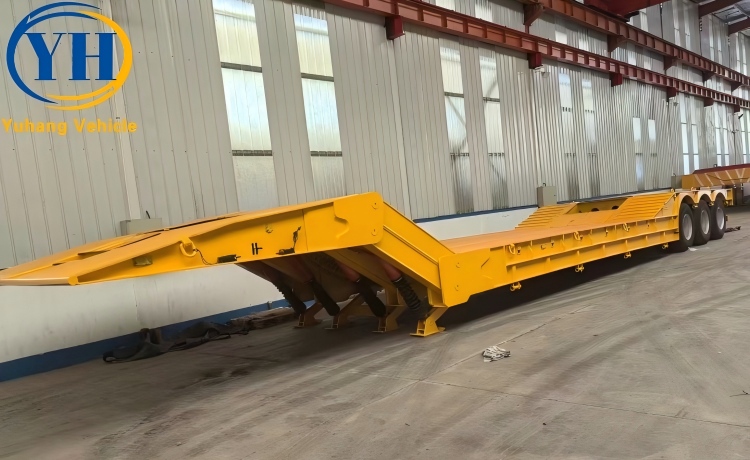

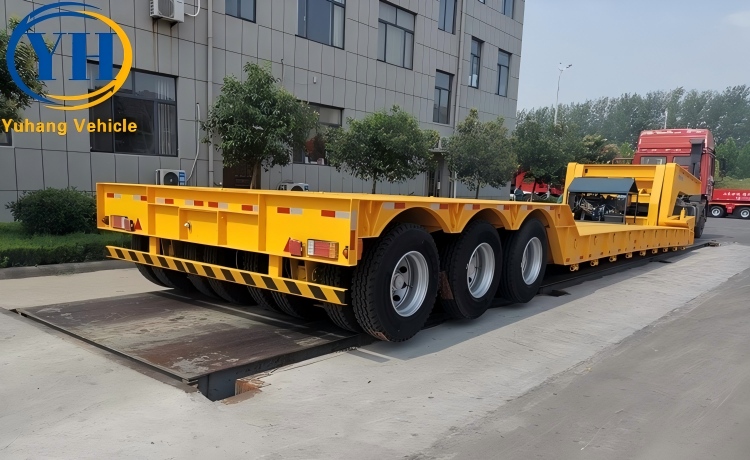

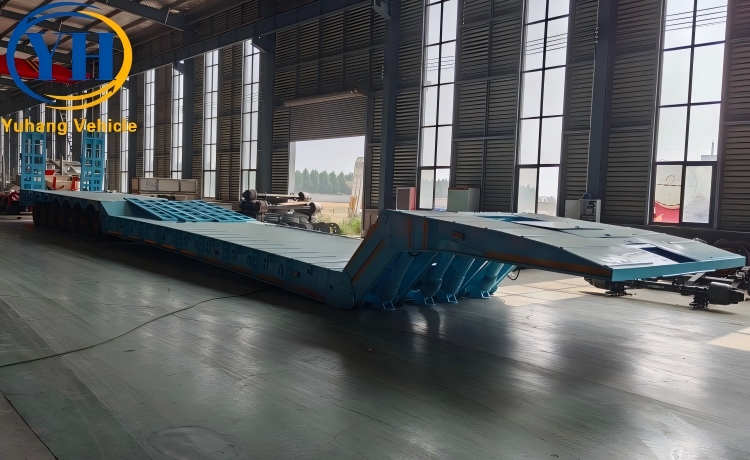

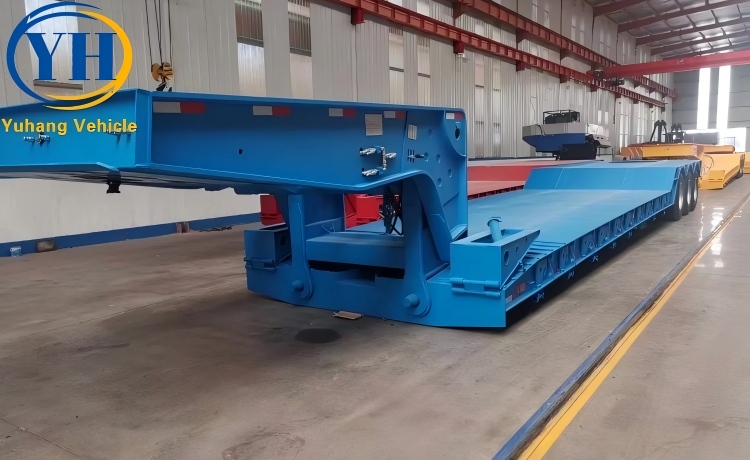

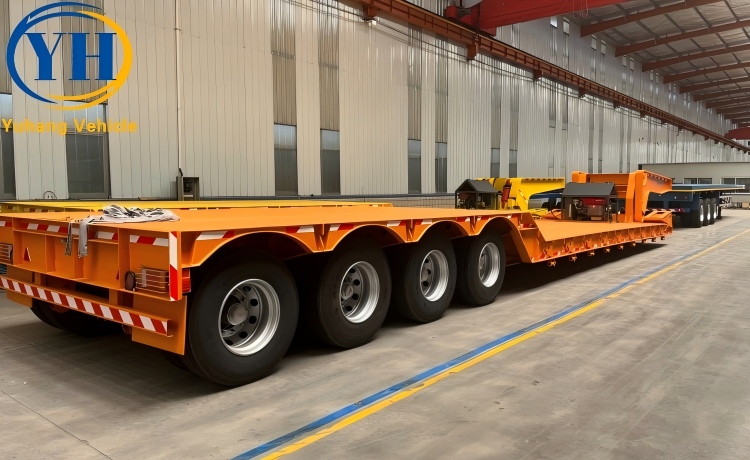

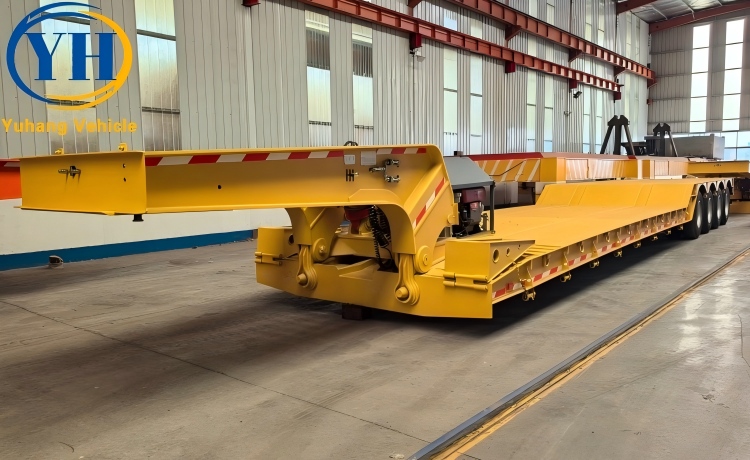

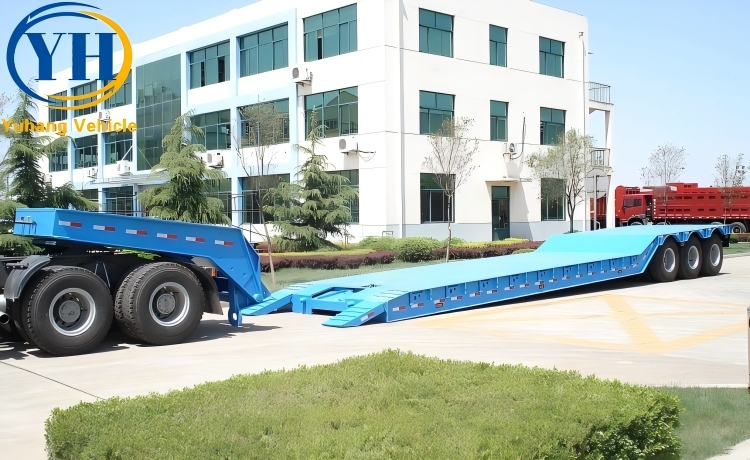

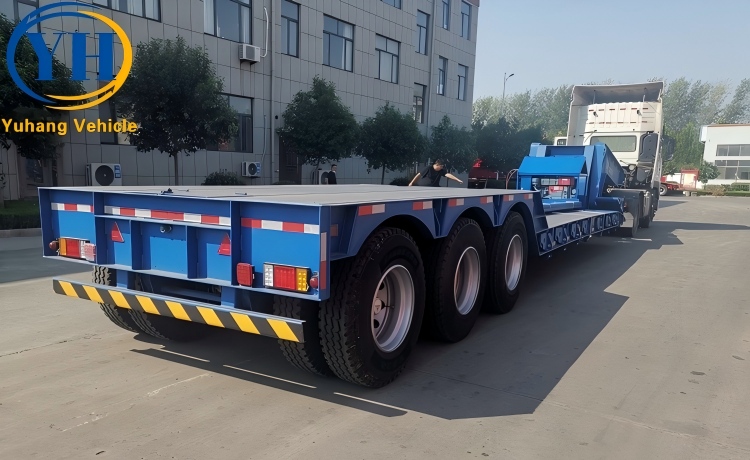

YUHANG brand new removable gooseneck lowboy trailer for sale

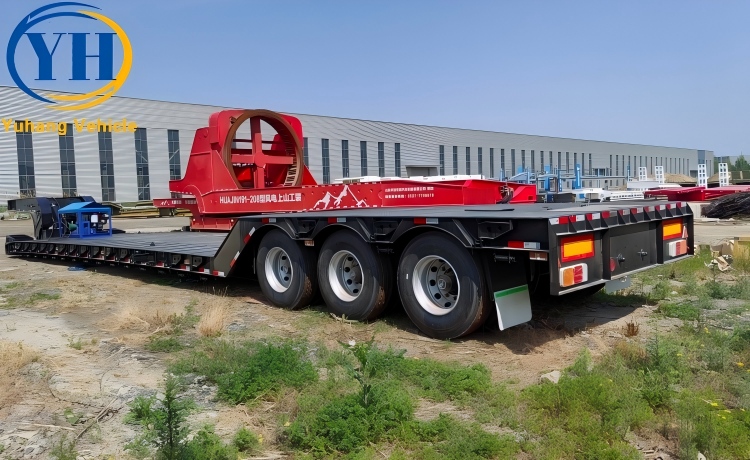

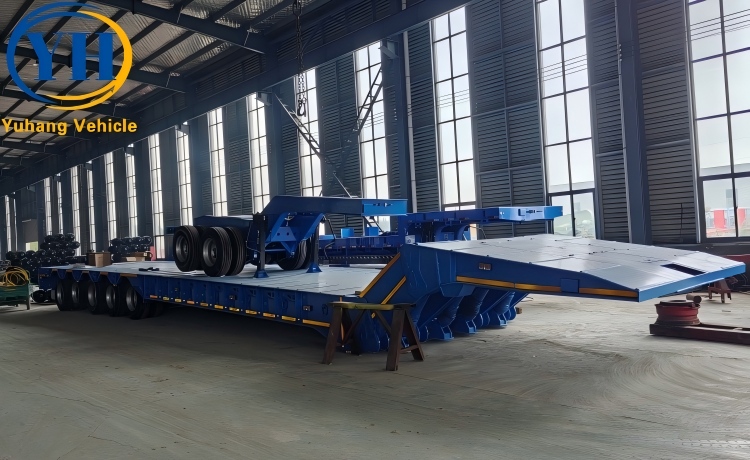

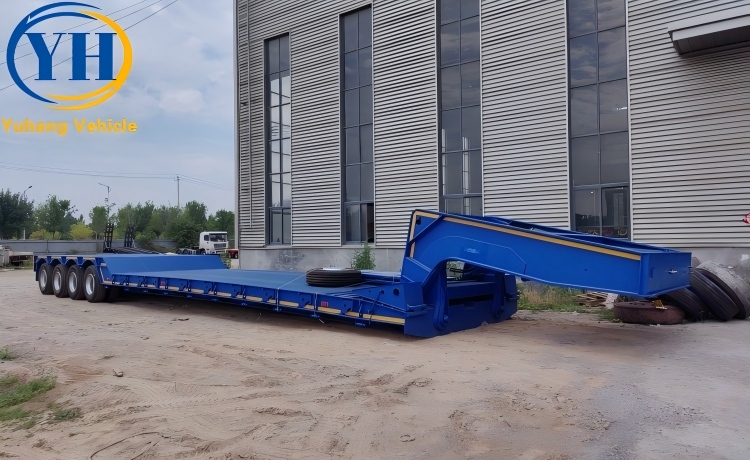

The detachable gooseneck trailer is ready to customer
Tri axle gooseneck detachable lowbed trailer video
6. What is the difference between lowbed trailer and RGN lowboy trailer?
The feature of the hydraulic RGN lowboy trailer for sale is that it allows the gooseneck to be detached from the front of the trailer, so it is also called a front loading lowbed trailer. The loading platform of the detachable gooseneck trailer can be lowered to the ground, so more heavy machinery and equipment can be carried. However, ordinary lowbed trailer usually load cargo from the rear end of the vehicle through a mechanical ladder or hydraulic ladder, and its gooseneck cannot be detached. In this case, the application functions of the RGN lowboy trailer are very advantageous and can be easier for users to master.
Furthermore, you cannot lower the height of the loading platform when loading cargo on a lowbed trailer. This means that you cannot lift the cargo and load it onto the trailer without other auxiliary equipment. This will greatly limit the type of cargo you can transport, but it will not affect the proper functioning of the RGN lowboy trailer.
Due to these remarkable features, the RGN lowboy trailer for sale is easy to load and operate. This capability greatly increases the productivity and hauling value of a detachable gooseneck trailer over a lowbed trailer. Therefore, when faced with many over-height, over-wide, over-length, and over-weight cargo, many customers will first choose RGN lowboy trailer.

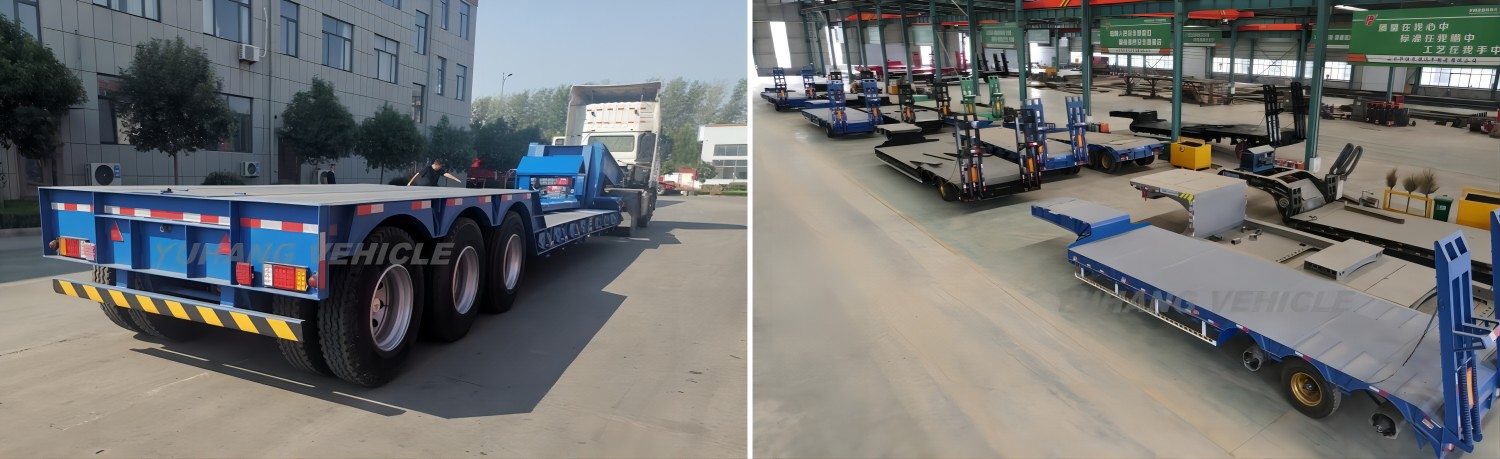

3 axle detachable lowboy trailer and common lowbed trailer
7. The detachable gooseneck trailer transportation plan.
We have an experienced packaging and transportation team that will select the most cost-effective transportation solution based on the customer’s actual situation. In order to prevent the paint of the tri axle gooseneck detachable lowbed trailer from being corroded by sea water and rainwater, we will spray a layer of waterproof wax on the surface of the tri axle gooseneck detachable lowbed trailer before transportation, and then seal it with a waterproof tarpaulin. To a large extent, this will protect the trailer from rust.

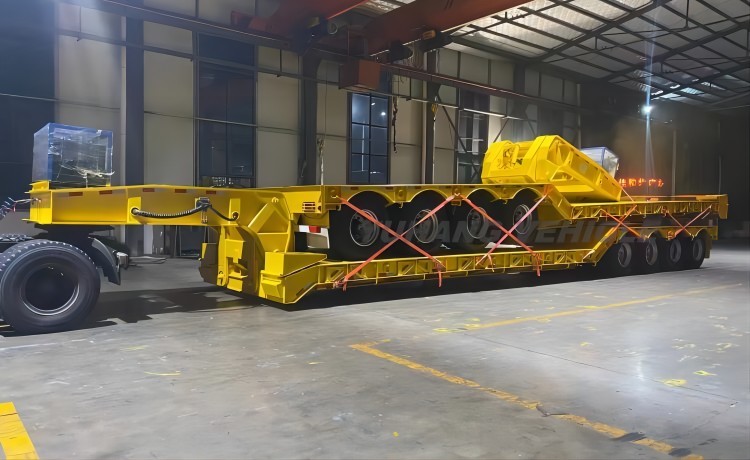

Detachable semi trailer packaging transportation plan
8. What to consider when purchasing detachable gooseneck trailer?
With the rapid development of economy and society and the construction of infrastructure, we often see various types of lowbed semi trailers. At the same time, more and more customers are choosing detachable gooseneck trailers to transport large amounts of cargo. This undoubtedly creates a lot of opportunities for RGN lowboy trailer suppliers, so how should customers choose a qualified detachable gooseneck trailer?
YUHANG has accumulated nearly 20 years of experience in the field of semi trailer production and sales, and has established good supply relationships with customers in more than 70 countries around the world. We have complete production and manufacturing equipment and a first-class designer team, which can design and customize various specifications of detachable gooseneck lowboy trailer according to customers’ actual transportation needs.
1. What steel is used in detachable gooseneck trailer?
Currently, the steel plate material used in our detachable gooseneck trailers is HG60. This is a high-strength structural steel with good toughness, fatigue resistance, weldability and corrosion resistance. It is mainly suitable for various types of construction machinery, large equipment, dump truck and drilling rig, coal mine hydraulic supports and heavy vehicle structural components. This steel plate material is stronger and more durable than the Q345B steel plate used by other suppliers for transporting heavy goods.

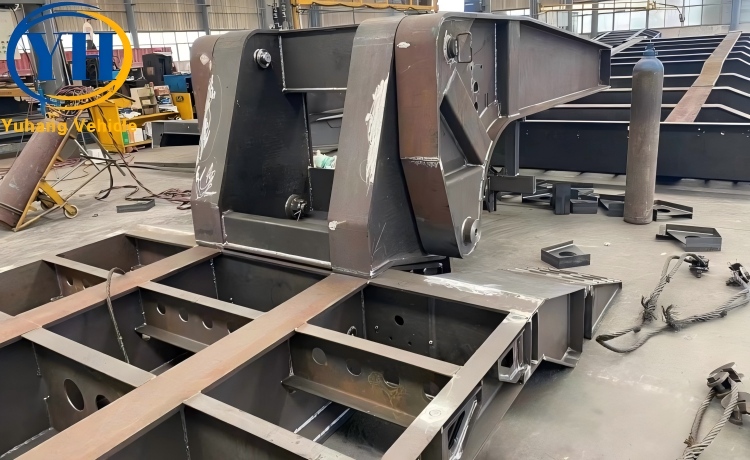

2. The frame of a hydraulic gooseneck lowbed trailer.
The effective loading platform length of the vehicle is generally 5000mm ~ 9000mm, and the width is 3000mm ~ 4000mm. This mainly depends on the legal regulations and actual road conditions in the customer’s country. The cargo carrying platform is welded with a thickness of 10mm high-strength steel plates, with strong loading capacity and longer service life.
3. What is the loading capacity of the RGN detach trailer?
Of course the biggest concern for customers when purchasing an RGN lowboy trailer is the load rating. Common design loading capacities are 60 ton, 80 ton, 100 ton, 120 ton, 150 ton, 180 ton and 200 ton. YUHANG can customize heavy duty transport lowboy trailer according to your actual transport needs.
4. What is the ground clearance of a lowboy trailer?
Our detachable gooseneck lowboy trailer is designed with ground clearance heights of 800mm, 850mm and 900mm, which is the result of our rigorous calculations and experiments and can meet the vast majority of customers’ transportation needs. During actual transportation, the height of the carrying platform can be controlled by the hydraulic system and the vehicle’s “fifth wheel”.

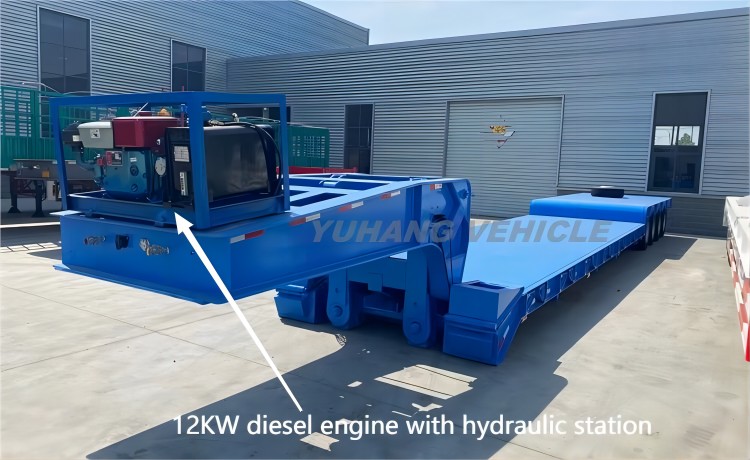

High quality hydraulic gooseneck lowboy trailer

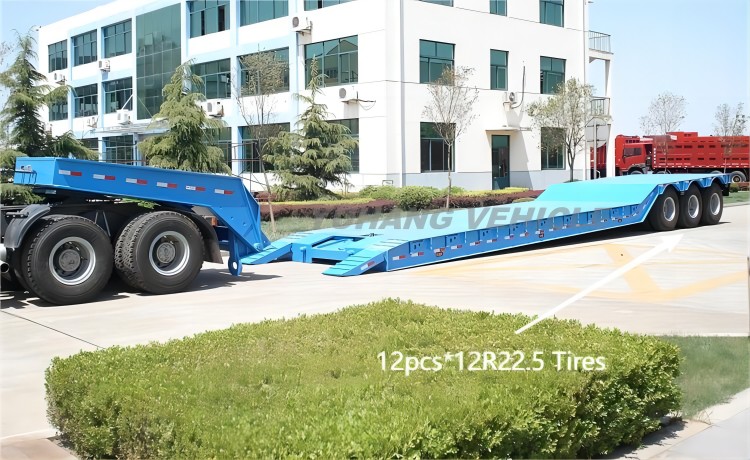

3 axle removable gooseneck transport trailer for sale
Get the best gooseneck detachable trailer quotation
9. Folding gooseneck trailer VS removable gooseneck trailer.
Folding gooseneck trailer and removable gooseneck trailer are both a connection method for lowboy trailer, and the difference between them lies in the structural design of the connection part.
The gooseneck of the removable gooseneck trailer can be separated from the vehicle chassis to enable loading and unloading of mechanical equipment. Generally speaking, the detachable gooseneck lowboy trailer for sale have a stronger and more durable structure and can withstand larger loads.
The gooseneck of the folding gooseneck trailer can be folded and stored using a hydraulic control system. This connection method saves storage space and improves the working efficiency of the trailer. However, the load-bearing structure of the folding gooseneck is slightly weaker and cannot carry heavy loads. Therefore, when choosing a removable gooseneck trailer or a folding gooseneck trailer, it should be determined based on the specific use requirements of the trailer and the tonnage of the cargo.
