80 Ton Removable Gooseneck Trailer
This 4 axle 80 ton removable gooseneck trailer is particularly suitable for transporting large cargo with high volumes and load ratings.
Manufacturer: YUHANG VEHICLE
Model: 4 axle 80 ton removable gooseneck trailer
Material: high strength structure steel plate
Delivery Date: 10-25 days
Application: loading excavators, bulldozers or other heavy machinery
This 4 axle 80 ton removable gooseneck trailer can be used to load and transport many types of heavy machinery and equipment, such as: excavators, loaders, bulldozers, scrapers, graders, pavers, milling machines, compactors etc.
Removable gooseneck trailer allow the trailer to be lowered to the ground, creating its own ramp for easier loading and unloading of cargo. As you can see, the cargo moves from the front of the trailer onto the vehicle’s work platform.
The loading platform of our removable gooseneck trailer is only 850mm above the ground, and the center of gravity is very low, so the stability and safety performance are very good. The passability and timeliness of transporting heavy goods are also very high, which greatly improves your transportation value.
YUHANG factory can design and customize 2 axle, 3 axle, 4 axle, and 5 axle removable gooseneck lowbed semi trailer with capacities of 50/60/80/100/120/150 tons. Meet your special shipping needs and comply with local laws.

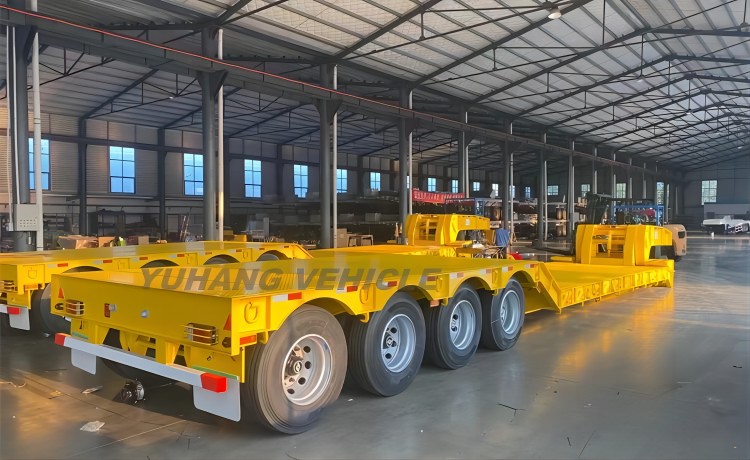

80 ton removable gooseneck trailer for sale

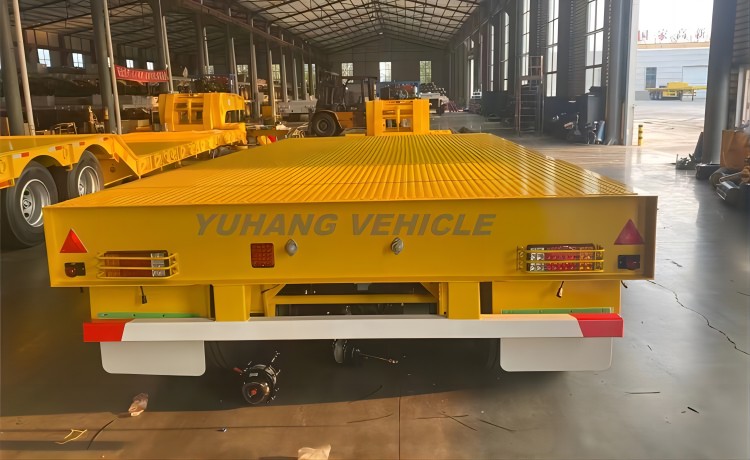

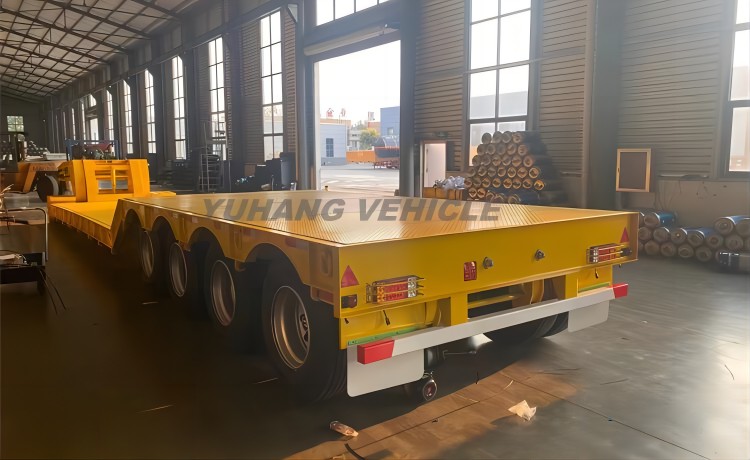

YUHANG brand 4 axle detachable gooseneck trailer with best price

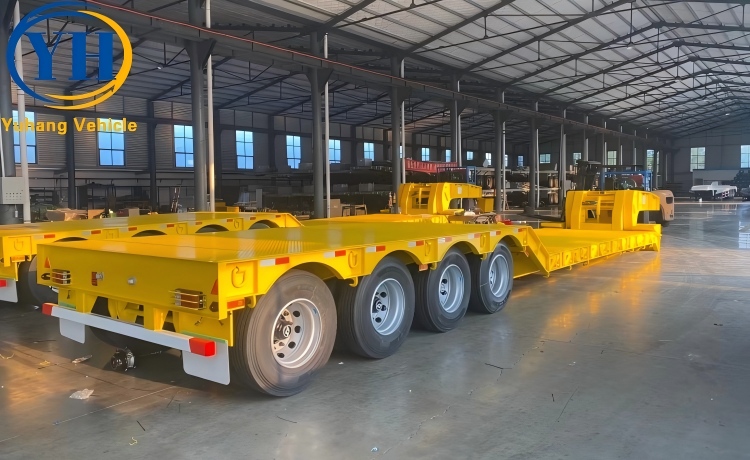

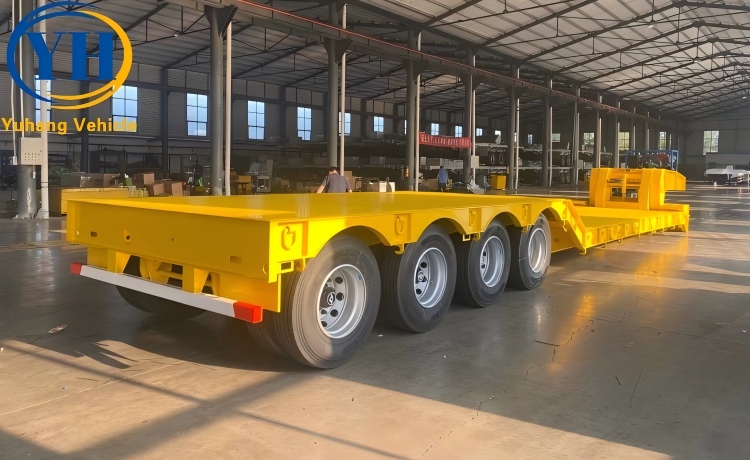

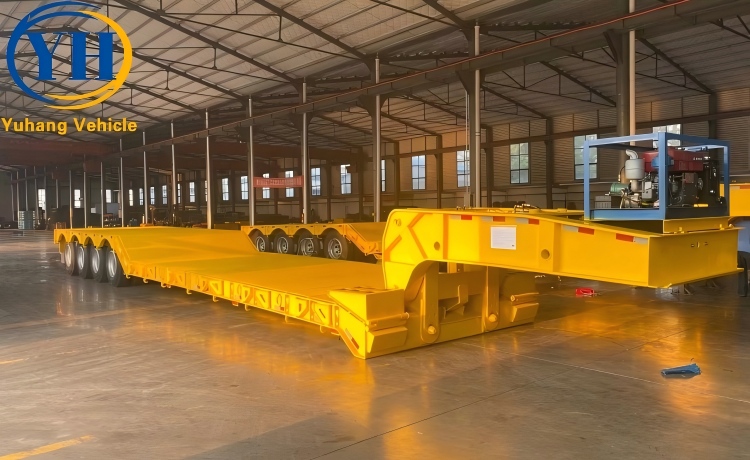

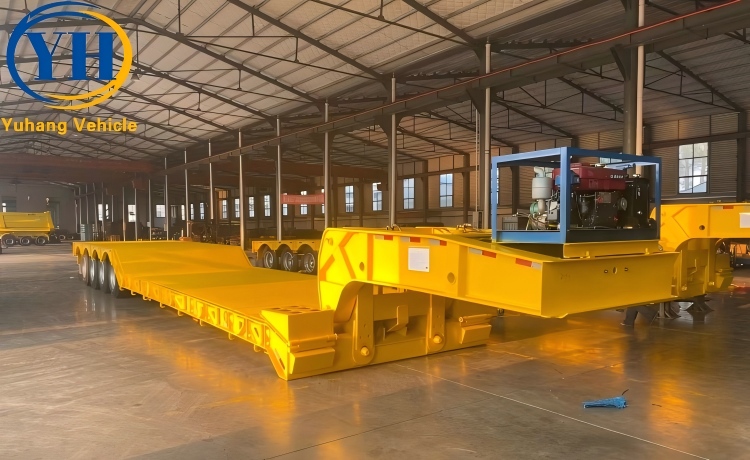

Our factory customized gooseneck detachable lowbed trailer ready shipped to customer
1. Our removable gooseneck trailer is made of high-strength steel plate material and has a ballast-resistant, tensile-resistant and sturdy and durable structural model.
2. The main beam adopts modern robot welding technology, and the welding joints are strong and reliable, which improves the overall quality and strength of the vehicle and meets the loading requirements of more complex and harsh road conditions.
3. The loading working platform has a low center of gravity and can be adapted to more types of heavy goods, making the transportation process smoother and more efficient.
4. World-renowned factory brand accessories with long service life, greatly reducing maintenance costs and time.
Dimension: 17900mm x 3000mm x 2500mm (or customized)
Loading Capacity: 30-80 ton
Tare Weight: about 9.5 ton
Main Beam: height 500mm; width: 240mm; side beam: 250mm, material Q345B high-strength steel
Bottom Platform: 5mm thick, checkered plate
Hydraulic Cylinder: 12KW diesel engine with hydraulic station
Ramp: spring ramp
Axle: 4 axle * BPW/FUWA brand
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: heavy duty mechanical suspension
Spring Leaf: 100(w)mmx12(thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing Gear: JOST brand
Valve: WABCO valve
Light: LED light
Tool Box: 1 set
Packing: by Ro-Ro shipment or bulk ship
Through the video below, you can learn more details about the hydraulic detachable gooseneck lowbed trailer. Please click to view it.
We look forward to you leaving your inquiry information on the website, and we will provide you with more picture, video, drawing, catalog and the best price.
