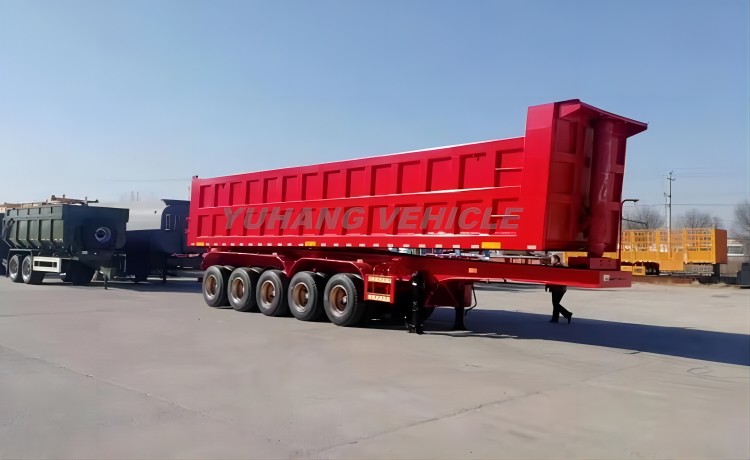

5 Axle Tipper Truck Trailer

Our 5 axle tipper truck trailer is commonly used to transport construction materials such as: sand, earth, ore and scrap iron. We can 100% customize dump semi trailer according to your special needs.

18000 USD

Model: 5 axle tipper truck trailer for sale

Hydraulic System: HYVA cylinder

Delivery Date: 15-25 days

Applications: transport coal, sand, earthwork, building materials




YUHANG 5 axle tipper truck trailer is a very popular model in Africa, South America, Southeast Asia and other markets, and has won the trust and love of customers.

The dump semi trailer is often used for medium and long-distance road transportation, mainly responsible for the loading and turnover of bulk goods such as: sand, coal, building materials, and grain, and is usually used in conjunction with a loader.

Our tipper truck trailer box body has two different loading structure styles, u shaped and rectangular, with a load capacity of 40 ton, 60 ton, 80 tons, 100 ton, 120 ton for you to choose.

We can customize dump trailer according to your transportation needs, they all have the highest quality and the best price to help you start shipping business better.

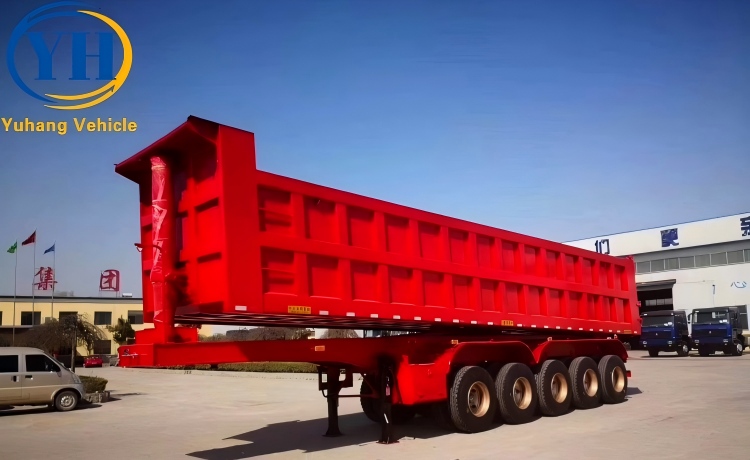

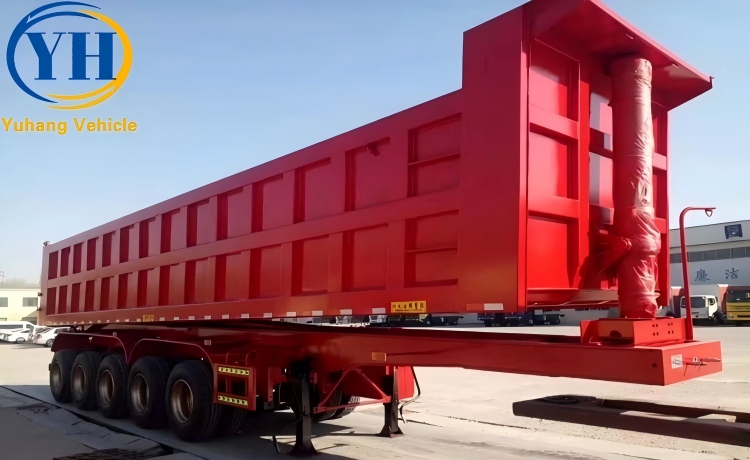

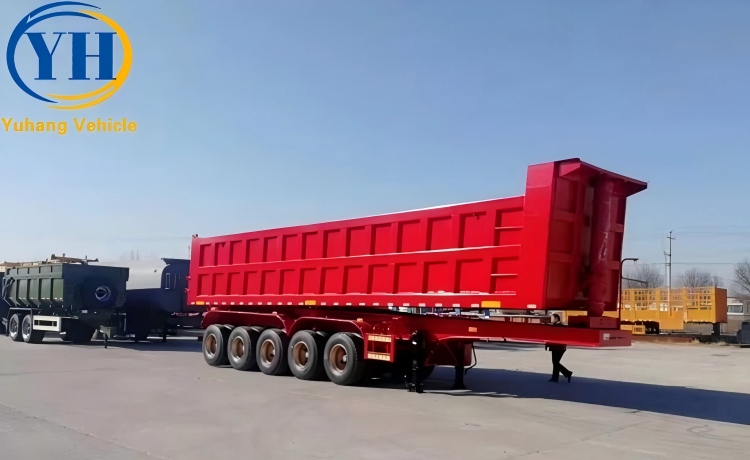

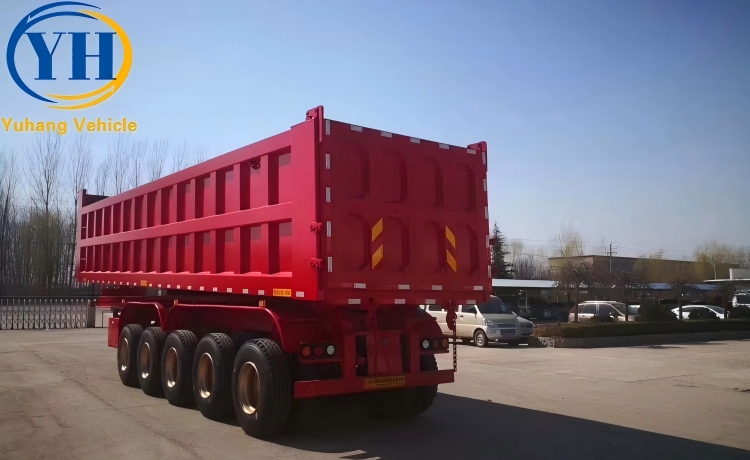

5 Axle Tipper Truck Trailer-YUHANG VEHICLE5 axle tipper truck trailer for sale

5 Axle Tipper Truck Trailer-YUHANG VEHICLE100 ton dump semi trailer with best price


1. The 5 axle tipper truck trailer main beam is made of high-strength wear-resistant T700 steel plate, which has stronger loading capacity and longer service life.

2. The box body is reinforced with reinforced ribs, and the unique structural design increases the payload and reduces the impact of the cargo on the dump trailer.

3. The main components adopt advanced processing equipment, and the assembly machine is used for precise proportioning to ensure stable performance of the dump semi trailer and easy maintenance.

4. The trailer frame adopts robot automatic welding technology, the weld seam is uniform and full, the solder joints are tight and strong, and the appearance is beautiful.

5. YUHANG dump trailer is subjected to hundreds of stress test analyzes and compression performance tests before delivery to ensure that they are in the best working condition.


Manufacturer: YUHANG VEHICLE 5 Axle Tipper Truck Trailer

Dimension: 11500mmx2500mm x3800mm or customized

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, lower plate 16mm, material high strength steel

Bottom Platform: 6mm thick checkered plate

Sidewall: 4mm

Lifting System: HYVA lifting cylinder

Axle: 5 axles, 13T/16T, FUWA/BPW brand

Rim: 8.0-20 or 9.00-20

Tire: 20 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: heavy duty mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

King Pin: JOST brand 2 or 3.5 inch detachable type

Landing Gear: JOST brand 28t, two speed

ABS: optional

Color: optional

Brake System: WABCO valve

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: polyurethane anti-corrosion paint

Accessories: one standard tool box, spare tire carrier

Shipping Terms: bulk carrier or ro-ro ship
