Benin customer customized two sets 3 line 6 axle detachable gooseneck trailer in February, mainly for transporting heavy machinery and large equipment. According to the customer’s needs, Selina, the sales manager, quickly sorted out the relevant technical information, and immediately sent the quotation of the most favorable price of the 3 line 6 axle detachable gooseneck trailer to the customer. After screening and full comparison, the customers finally chose YUHANG.
We are a semi trailer manufacturing enterprise focusing on production and R&D. We have advanced production lines and skilled welding processes to ensure that customers can use our trailers for a long time and stably. Factory engineers are also ready to provide the most practical solutions and drawings for customers’ complex road transportation.

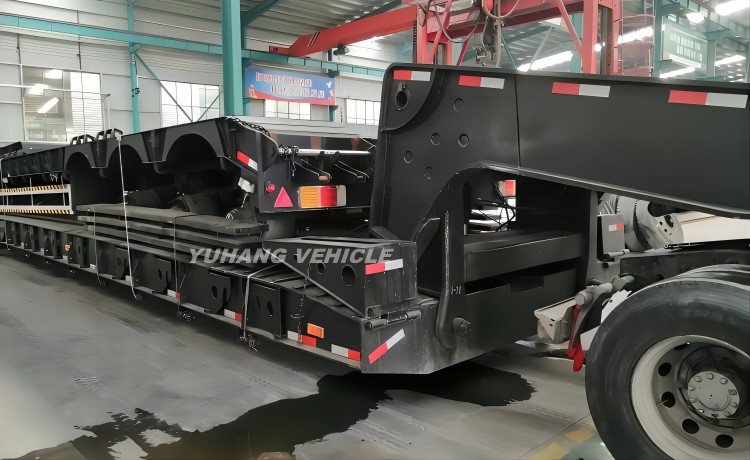

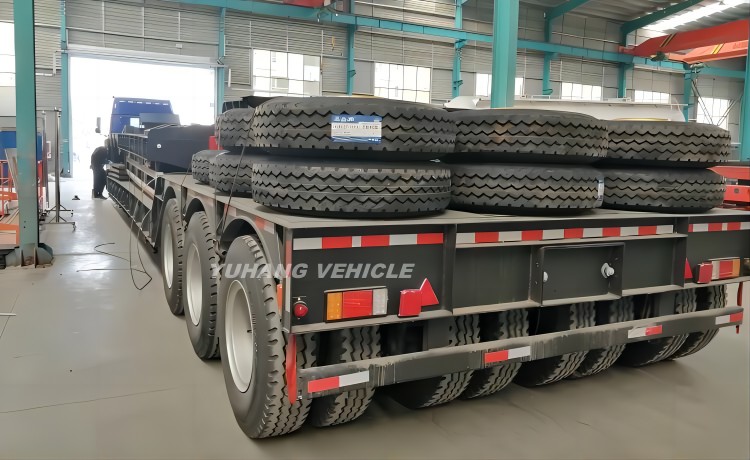

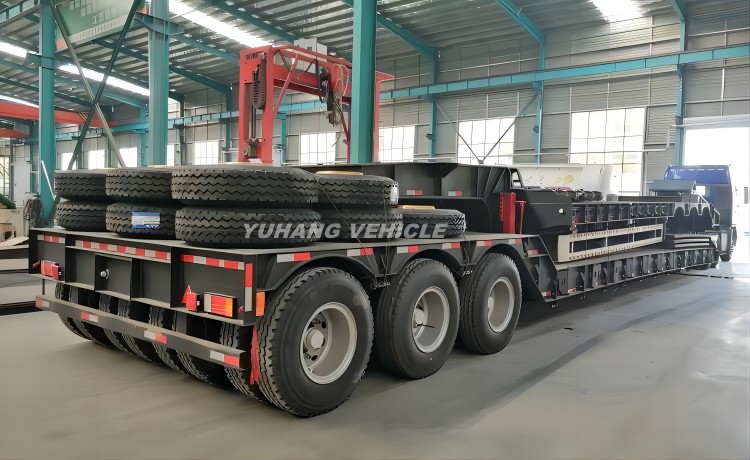

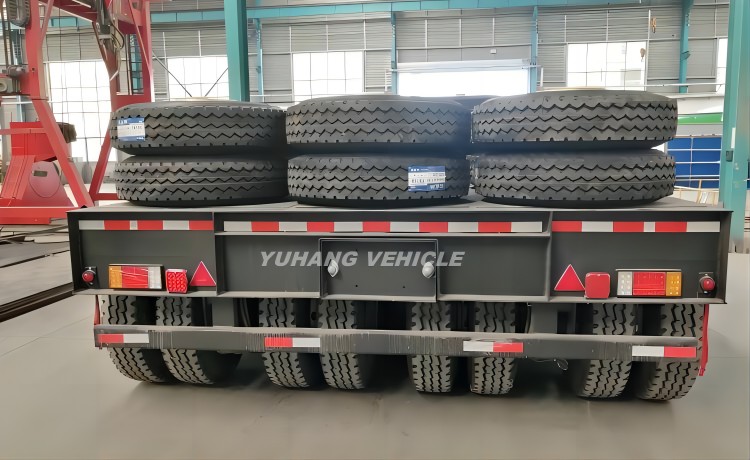

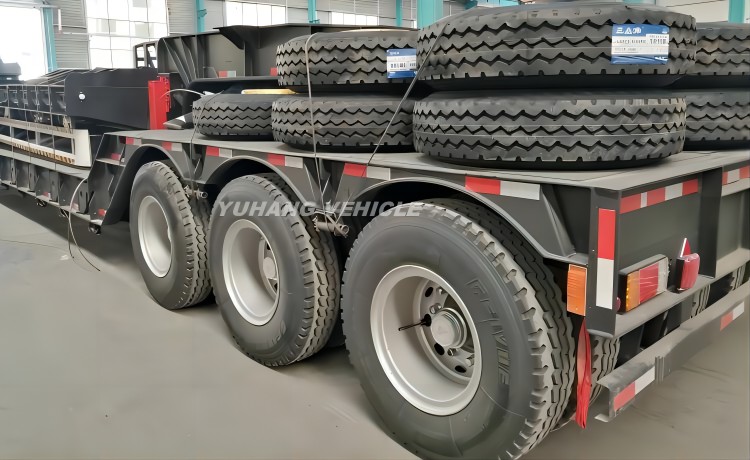

Now, this 120 ton detachable gooseneck trailer specially designed for transporting heavy machinery and equipment has successfully rolled off the assembly line. Will be sent to Benin customers soon. Of course, we wrap the trailer with tarpaulins and spray wax to keep it out of the sea.
The main feature of the 3 line 6 axle detachable gooseneck trailer is that the gooseneck is equipped with a power unit and a hydraulic device system, which can quickly separate the gooseneck from the loading platform, allowing heavy machinery to drive from the front end of the trailer to the working surface to complete loading.
The detachable gooseneck trailer for sale is usually equipped with a 12KW diesel engine and 4 sets hydraulic cylinders, 2 vertically and 2 horizontally.
YUHANG detachable gooseneck lowbed semi trailer is durable, top-notch quality, and the loading capacity varies from 80 to 150 tons. We can provide you with customized services to better meet your transportation needs.
The working principle of detachable gooseneck trailer:
Start the hydraulic device, operate the pull rod, the hydraulic device of the longitudinal beam is lifted up and down, and the lifting platform is realized!
Start the hydraulic device, operate the pull rod, and the hydraulic device of the beam moves back and forth to realize the separation of the gooseneck and the carrying platform!
The lower height of the working platform ensures the safety and stability of the cargo loading.
Advantages of detachable gooseneck lowbed trailer:
1. Strong carrying capacity
The main beam of the detachable gooseneck trailer is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥620MPa, which is more durable and stronger than ordinary steel, and its bearing capacity is 5 times that of Q345 steel.
2. Low center of gravity
The detachable gooseneck lowbed semi trailer has low ground clearance, low longitudinal beam height, and the carrying platform is 300-400mm lower than the normal concave center detachable gooseneck trailer sold, which effectively reduces the height of the center of gravity of the loaded cargo.
3. Good stability
The bottom plate is made of 5 mm thick checkered steel plate, which is more durable and will not deform, and has good anti-skid effect, which improves the stability during transportation.
4. The effective length of the bearing surface can be customized
According to the actual transportation requirements of customers, the carrying platform can be extended appropriately and the inclination angle of the gooseneck can be increased to effectively load more goods, improve loading efficiency and create greater profit margins.
The 120 ton detachable gooseneck trailer uses an independent power system or a tractor to take power to drive the combined operation of four hydraulic devices at the gooseneck, so that the gooseneck and the loading platform can be quickly disassembled.
At this time, large machinery and equipment (such as: excavators, road rollers, agricultural machinery and road machinery) can climb from the front end of the trailer to the deck, so as to realize the transportation function.
YUHANG VEHICLE will conduct strict quality inspection on every trailer exported to ensure that they are durable and can last for more than ten years.
We can provide customers with detailed design drawings of 3 line 6 axle gooseneck detachable trailer, manufacturing process, test video, customer feedback and other materials to help you understand it in all aspects.
This type semi trailer design has many advantages and features. If you also need a detachable gooseneck trailer to help you work better, please contact us as soon as possible.
