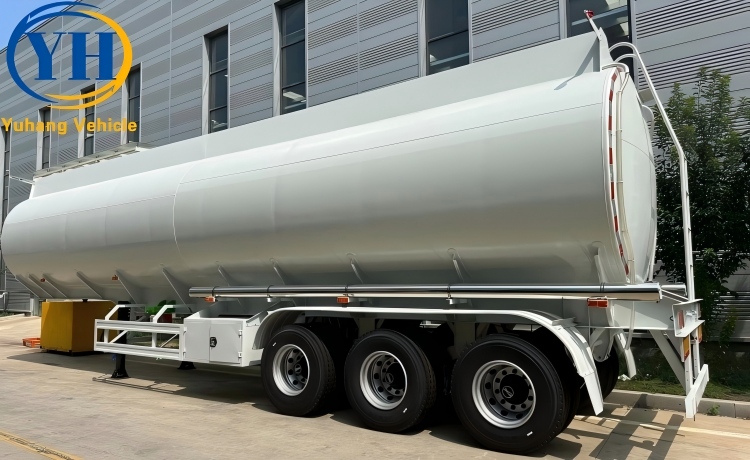

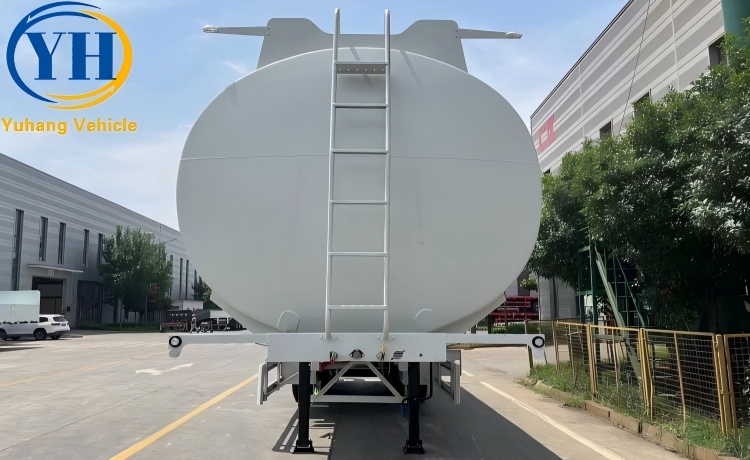

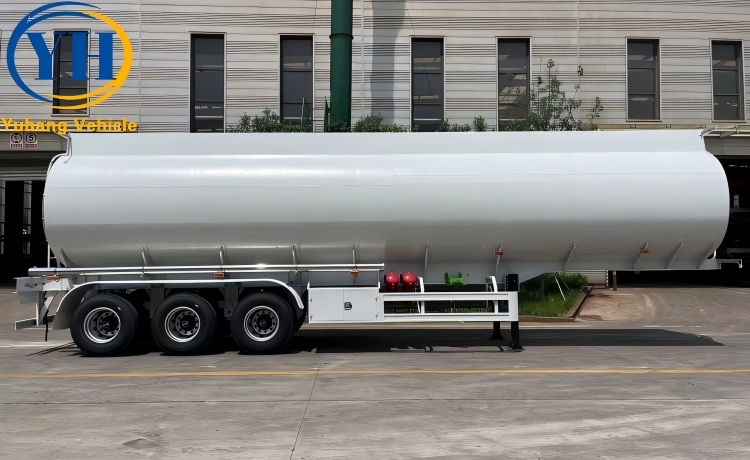

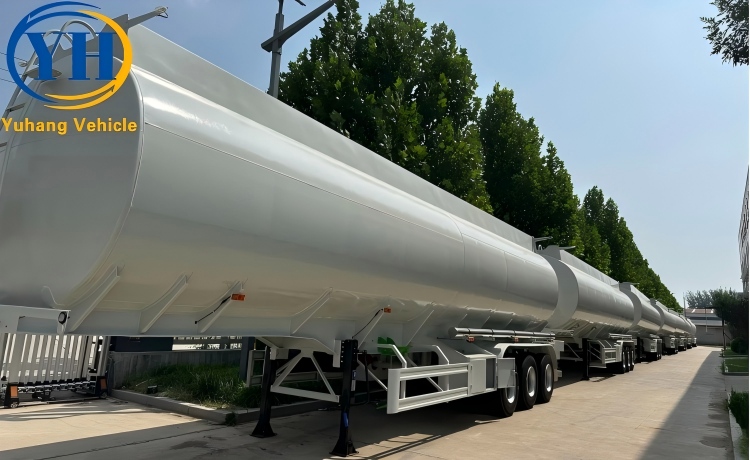

First of all, I would like to thank Malawi customers for choosing YUHANG tri axle fuel tanker trailer. Customers in Malawi liked the YUHANG brand very much, and directly rejected the quotation proposals of other competitors in the same industry. The customer ordered 40,000 liters diesel tanker trailer after talking with the sales manager John for 3 days.
YUHANG has nearly 20 years of manufacturing and sales experience in the field of 3 axle 40,000l tank semi trailer, and it is very correct for Malawian customers to choose YUHANG VEHICLE as their supplier for diesel transport trailer business.
As the largest semi trailers production base in China, we sell directly to customers, without middlemen to make the difference, with greater price concessions; product quality is more guaranteed. We determined the technical drawings of the fuel tanker trailer according to the customer’s needs, and after the customer’s confirmation, we quickly completed the production and delivery of the diesel tanker trailer.
For a long time, the fuel tanker trailer sold by YUHANG have been well received and recognized by consumers in many countries, and there has never been a quality problem. Because we carry out a full system check and performance test on all our completed tanker trailer to guarantee them to be of the highest quality.
If you happen to need tanker trailer, you can leave specific information on our website or send an inquiry directly, and our staff will introduce more detailed details and information to you. If you have any questions after receiving the YUHANG brand fuel tanker trailer, you can also contact the after-sales staff at any time.

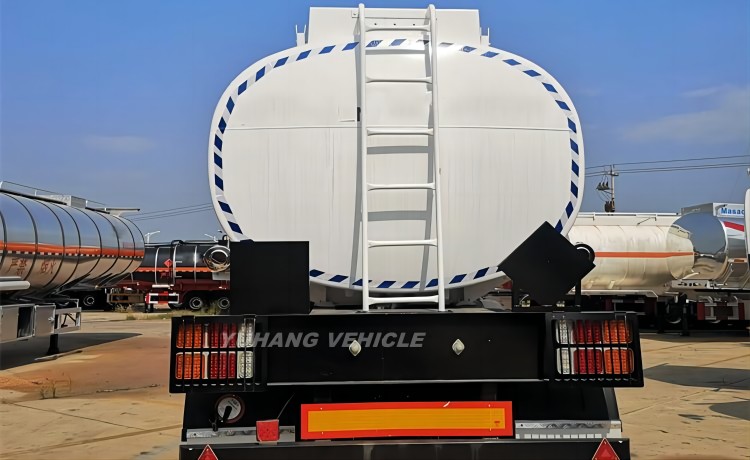

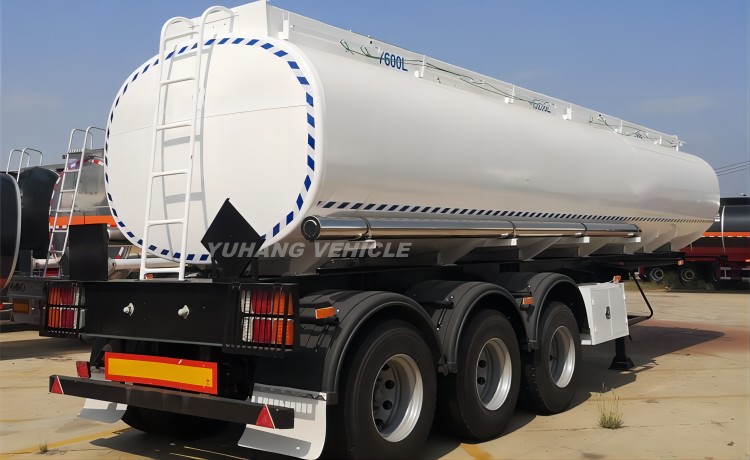

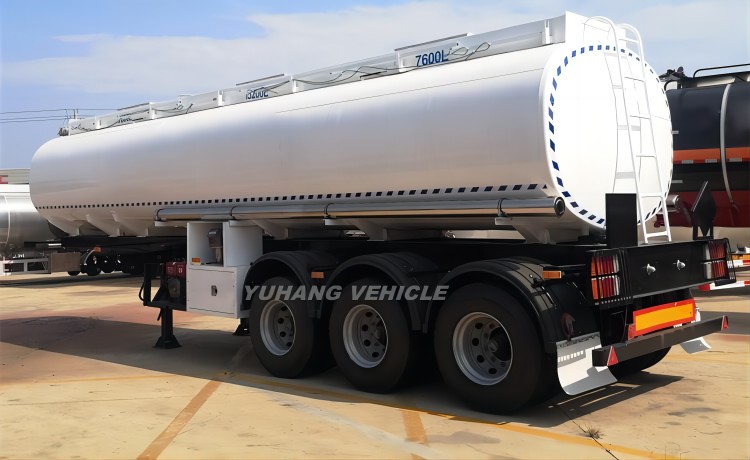

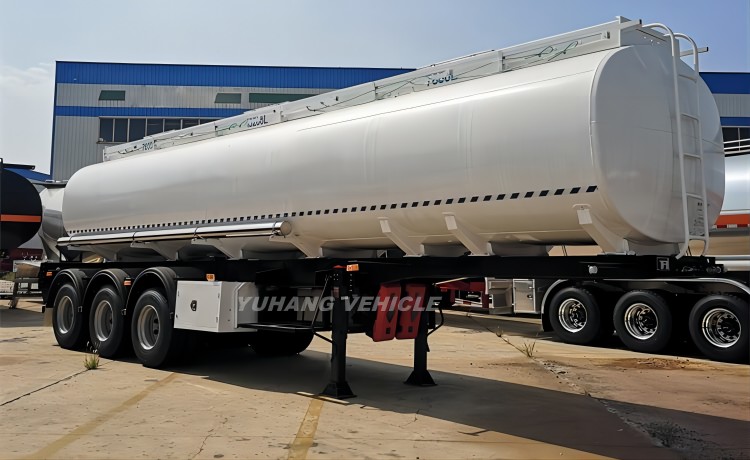

40,000 liters diesel tanker trailer is a common transportation vehicle with a tank structure for loading cargos. It is mainly suitable for the transportation of gasoline, diesel oil, palm oil, edible oil and other liquids. The 40,000 liter tanker trailer has a strong loading capacity and high transportation efficiency, so what are the structures of the fuel tanker trailer?
The external structure of the fuel tanker trailer is round, square or oval, and is made of high-quality steel plates. The whole tank body can be divided into single compartment or multiple compartments, each compartment is welded with a reinforced wave partition, and the lower end of the partition has a through hole to reduce the impact of liquid sloshing on the tank when the vehicle is running.
In order to prevent rust and corrosion, the outer surface of the tank will be sprayed with anti-rust primer and decorative paint, and a container indicator needle can be installed in the middle of the side of the tank, which can directly display the volume inside the tank.
There are one or more manhole covers with a diameter of 500mm on the top of the tank for repair and maintenance. The explosion-proof well cover is fastened to the tank mouth position on the top plate of the tank body by bolts, and the small cover and the large cover are connected together by a support pin and an ear plate. When turning clockwise, the small cover can be pressed tightly; when reversed, the small cover can be opened after the lug plate is disengaged.
One of the important parts of the 3 axle 40,000 liters diesel tanker trailer is the breathing valve, also known as the safety valve. The function is to automatically adjust the pressure inside the tank to ensure that the pressure inside the tank is basically consistent with the atmospheric pressure, and at the same time reduce the loss of oil volatilization.
The breathing valve is made of nickel-chrome stainless steel, and there is a breathing valve in all compartments of the 40000 liters fuel tanker trailer.
The anti-overflow probe is an alarm installed on the well cover. The anti-overflow sensing system will automatically alarm when the liquid level reaches the detection position during oil filling, thus stopping oil filling.
When the internal pressure of the tank rises sharply, the emergency exhaust device will automatically open to release the internal pressure of the tank, thereby preventing accidents and greatly improving the safety performance of the trailer.
You can learn about different types and specifications of diesel tanker trailer for sale, such as applications, drawings, photos, videos, production process, and customer feedback.
At the same time, YUHANG 3 axles 40000 liters tanker trailer will bring benefits and value to your transportation work, please do not hesitate to contact us!
