60/80/100/120 Ton Sidewall Cargo Semi Trailer Design Specs

1. What is a sidewall cargo semi trailer?

The sidewall cargo semi trailer is a transport vehicle that has a wide range of applications and a long service life. It is a device with only side plates and no roof. If we fully open or remove the side plates, it becomes an open deck platform. At this point, it is very similar to a flatbed semi trailer working on the highway.

Sidewall cargo semi trailers provided by YUHANG factory can be used to load and transport many types of bulk cargo and materials. For example: steel coils, wood, sand and gravel, bagged cement, fruits, fertilizers, electrical appliances, vegetables, express delivery and other daily necessities. At the same time, we can also carry out container transportation after installing a container twist locks.

What is the loading capacity of the sidewall cargo trailers? We have sidewall truck trailer with load ratings of 50/60/80/100/120 tons for sale direct from the factory at the best prices. Among them, 60 tons is the most popular model. Depending on the length, we also have 20 foot, 40 foot, 45 foot and 48 foot cargo transport trailers for you to choose.

The height and color of the side plate of the 3 axle 4 axle sidewall semi trailers can be designed and customized according to your actual transportation needs. Our production process, welding technology, and transportation plans are all ahead of other suppliers. This essentially ensures that every trailer we deliver to our customers is high quality and 100% qualified.

60/80/100/120 Ton Sidewall Cargo Semi Trailer Design Specs-YUHANG VEHICLE

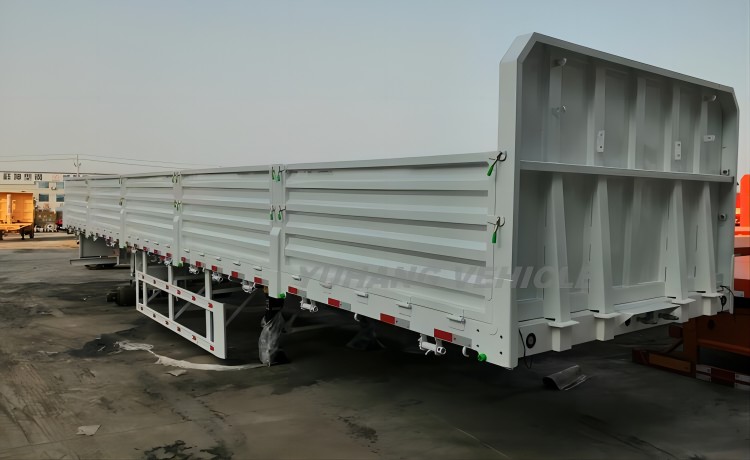

3 Axle 60 Ton Sidewall Semi Trailer Price For Sale

2. 60 Ton Sidewall Truck Trailer Specification

Dimension(L*W*H): 12500x2490x3200mm or customized

Tare Weight: about 7.5t

Loading Capacity: 60 ton or customized

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, material Q345B steel

Side Beam: 16mm or 18mm channel steel

Platform: 3mm-thick checkered plate

Axle: 3 axle*13T/16T, FUWA/BPW brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: mechanical suspension or airbag suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers

King Pin: JOST brand 2.0 or 3.5 inch

Landing Gear: JOST brand 28 ton

Twist Locks: 4/8/12 sets (lifting or screw type)

Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin socket (for 7 wire harness)

Painting: 1 layer of anticorrosive primer and 2 layers of top coats

Accessories: one tool box, spare tire rack

Shipping Terms: bulk carrier, Ro-Ro ship or container

60/80/100/120 Ton Sidewall Cargo Semi Trailer Design Specs-YUHANG VEHICLE

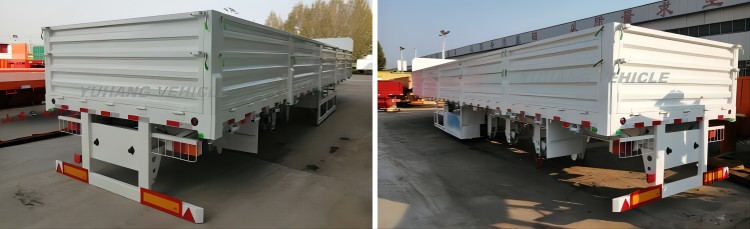

60 Ton Sidewall Truck Trailer In YUHANG Factory

3. Maintenance of sidewall semi trailer

The sidewall semi trailer is a very powerful cargo transport vehicle with a flexible folding structure, strong load-bearing capacity, and high transportation efficiency.

In the actual use process, we should pay attention to the maintenance and upkeep of the sidewall cargo semi trailer. This will ensure its proper working operation and prolong its service life.

Maintenance includes frame cleaning, lubricant oil replacement, electrical circuit inspection, bolt tightening, etc.

In terms of maintenance, it is necessary to pay attention to whether the axles, braking system, and lighting equipment are intact and functioning properly to ensure the safe operation of the entire vehicle.

The safety and stability of the sidewall cargo trailer have been fully considered, providing an effective guarantee for the transportation business.

60/80/100/120 Ton Sidewall Cargo Semi Trailer Design Specs-YUHANG VEHICLE

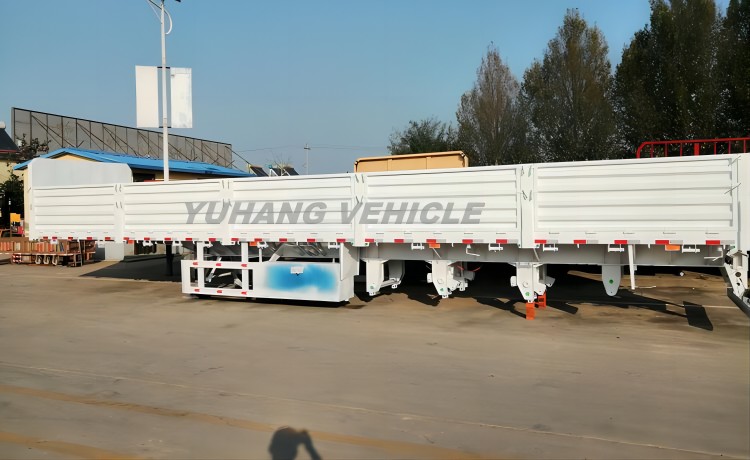

Triple Axle 60 Ton Fence Cargo Trailer

4. Advantages of YUHANG sidewall semi trailer

● We use high-strength steel plates to manufacture side wall semi trailers, giving them higher loading capacity and longer service life.

● All parts of the vehicle adopt robot automatic welding technology, making the welds smoother and more beautiful. Therefore the main beam is stronger and more durable.

● The cross beams, side beams, and the lower and bottom plates of the main beam are all reinforced to ensure that they will not deform or break during use.

● The distance between the two inclined brackets is less than 500mm, which can help the main beam have better load-bearing capacity.

● The working platform is made of non-slip and wear-resistant pattern plates to ensure better stability for loading and transporting bulk goods.

● The German WABCO brake valve is used to greatly shorten the braking distance and ensure the safety of the trailer and driver.

● Widen and thicker mechanical spring suspension can adapt to more complex and rough road conditions. Of course, we can also provide you with safety airbag suspension.

● Spraying polyurethane paint makes the vehicle more beautiful, has strong paint adhesion, will not fade after long-term use, and extends the life of the vehicle.

5. Our sidewall cargo truck trailer video

You can watch the following video to learn more about the different types of sidewall semi trailers for sale. Including drawing design, manufacturing process, welding process, testing and testing, packaging and transportation, customer feedback, etc.

60/80/100/120 Ton Sidewall Cargo Semi Trailer Design Specs-YUHANG VEHICLE
60/80/100/120 Ton Sidewall Cargo Semi Trailer Design Specs-YUHANG VEHICLE

If you want to know more about the advantages and features of this sidewall cargo semi trailer, please contact us quickly.
