40 Ton Curtain Side Semi Trailer

YUHANG brand 40 ton curtain side semi trailer for sale with best discount price. It can load more different types of bulk goods, and has high transportation capacity and practical performance.

14300 USD

Model: 40 Ton Curtain Side Semi Trailer

Delivery Date: 15-25 days

Applications: transport pallets, packaging, steel coil type goods




40 ton curtain side semi trailer, also known as the curtain trailer, is a special type of fully enclosed van transport semi trailer and an important means of transportation.

This type of vehicle is particularly suitable for transporting household appliances, beverages, paper rolls, beer, couriers, auto parts, palletized goods or other bulk goods.

Our side curtains are durable yet flexible PVC-coated vinyl that can be retracted from the front or rear of the trailer for easy loading and unloading. The top adopts a “horizontal bar + tarpaulin” structure, which can also be fully opened.

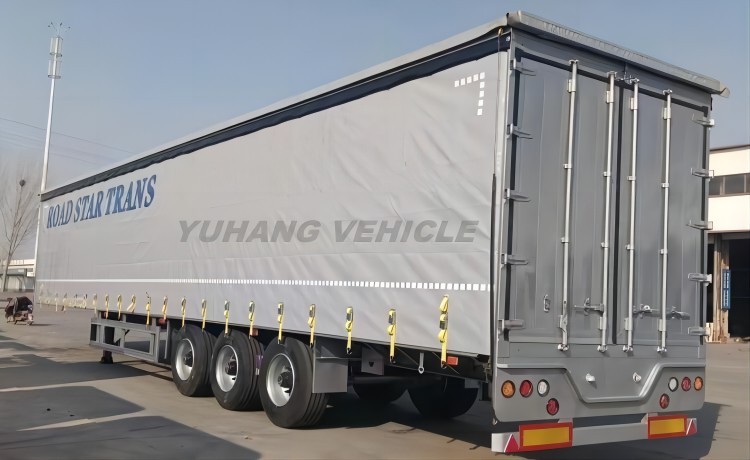

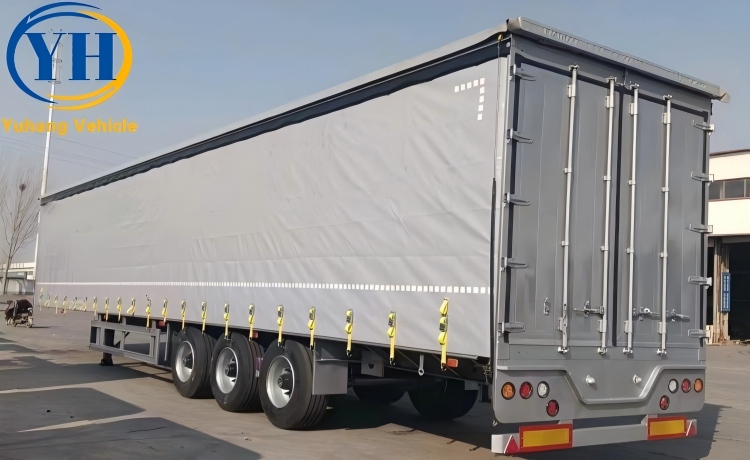

40 Ton Curtain Side Semi Trailer-YUHANG VEHICLE40 ton curtain side semi trailer for sale

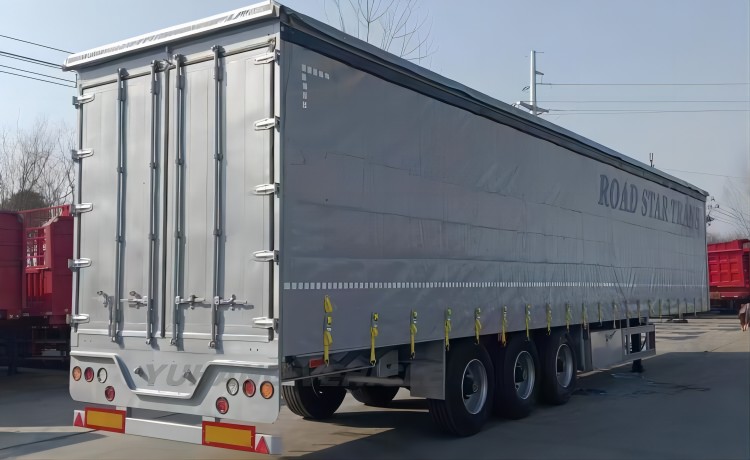

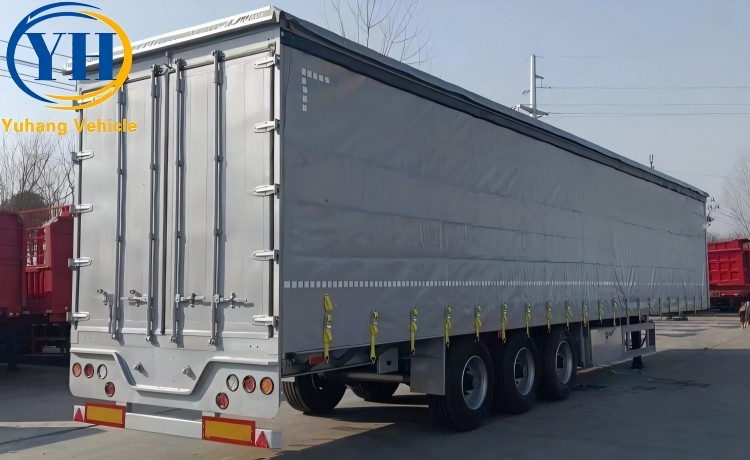

40 Ton Curtain Side Semi Trailer-YUHANG VEHICLE3 axis curtain trailer with best factory price

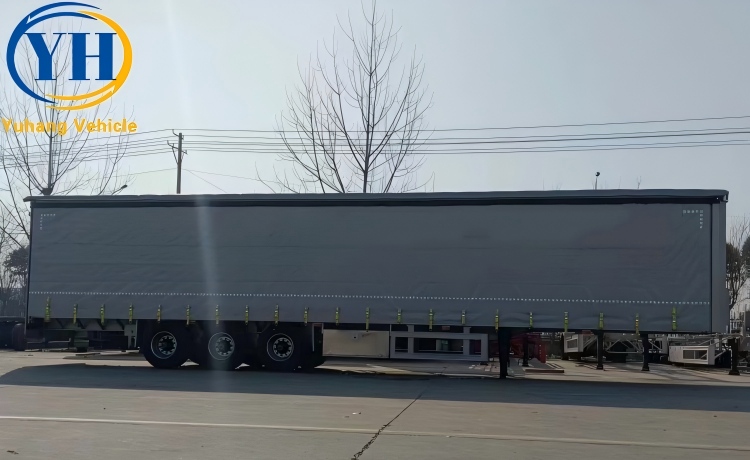

40 Ton Curtain Side Semi Trailer-YUHANG VEHICLEChina curtainsider semi trailer truck trailer manufacturer — YUHANG VEHICLE


1. Compared with traditional cargo trailers, the curtain semi trailer significantly reduces its own structural weight, and can open the top and side curtains to a maximum extent, which greatly improves the loading and unloading efficiency of cargos.

2. The 40 ton side curtain trailer is transported on standard pallets, which can maximize the use of space, and the cargo layout is more reasonable, avoiding concentrated loads and reducing excessive wear on the vehicle chassis or a certain part.

3. This series of trailers fully enclosed the load, providing weatherproof protection and safety for the goods, and can meet the transportation requirements of more adverse environments.


Brand: YUHANG 40 Ton Curtain Side Semi Trailer

Overall Dimension: 13000*2500*4500mm

Payload: 40 ton

Side: PVC waterproof curtain

Frame Beam: upper and lower plate is 14mm and 16mm, web plate 8 mm, height is 500 mm

Axle: 3 axle 13 tons, BPW/FUWA brand

Tire: 12 units

Suspension: mechanical suspension or air suspension

Landing Gear: JOST brand 28 tons double speed

King Pin: 2.0 or 3.5 inch

Brake System: WABCO brake valve

Electrical System: 24V, LED lamp

ABS: optional

Accessories: one standard tool box, spare tire carrier
