3 Axle 40Ft Curtain Trailer

We have high quality 3 axle 40ft curtain trailer for sale, which has strong loading capacity, light weight itself, high transportation efficiency and wide application range, low investment cost.

15500 USD

Model: 3 Axle 40Ft Curtain Trailer

Delivery Date: 15-25 days

Applications: transport pallets, packaging, steel coil type goods




The curtain trailer is also known as the side curtain semi trailer, and its appearance is very similar to the van semi trailer. This type of trailer can transport palletized goods, as well as bulk goods or beverages, etc., and has a wide range of uses.

Our 3 axle 40ft curtain trailer is made of flexible materials, such as: soft tarpaulins on both sides, and there are locking devices on the top and bottom rails. The side curtains can be pushed to any position to load goods, or the sides can be fully opened.

YUHANG brand curtain semi trailer combines the common advantages of flatbed trailer and van semi trailer. It has a reasonable design structure and simple and convenient operation, which can make your transportation business more standardized and efficient.

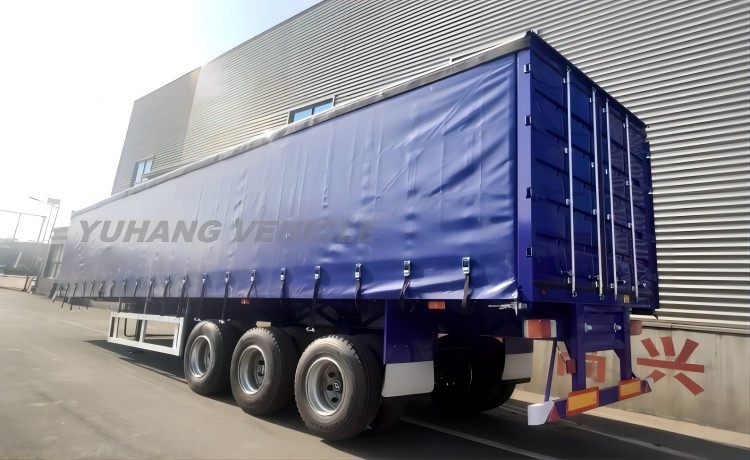

3 Axle 40Ft Curtain Trailer-YUHANG VEHICLE3 axle 40ft curtain trailer for sale

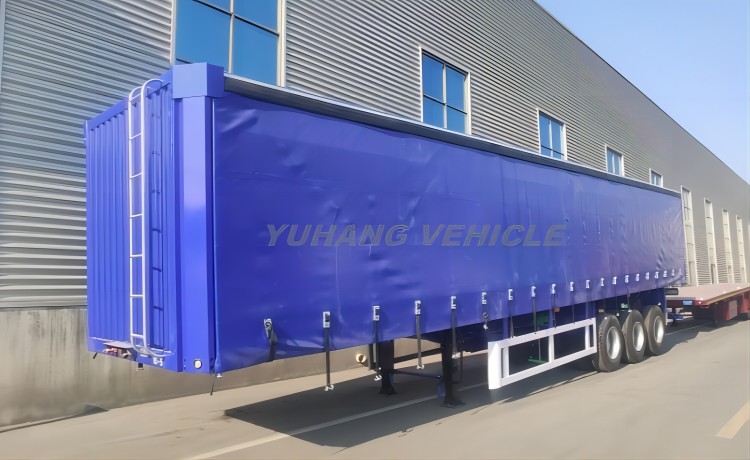

3 Axle 40Ft Curtain Trailer-YUHANG VEHICLEYUHANG brand curtain side trailer with best price

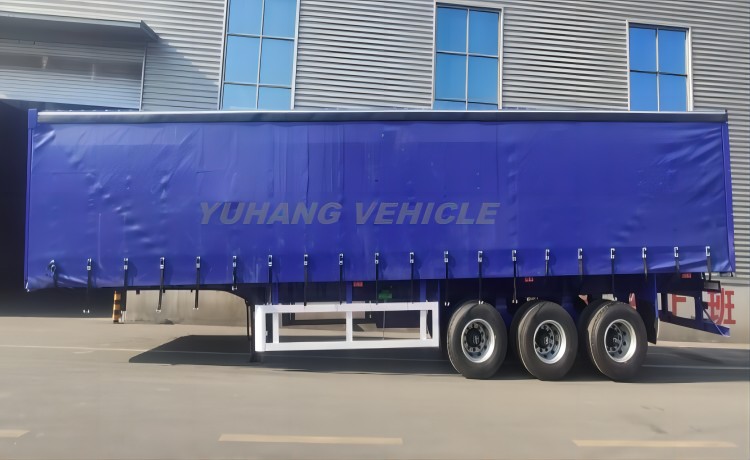

3 Axle 40Ft Curtain Trailer-YUHANG VEHICLEChina famous curtain trailer manufacturer


1. Both sides of the 3 axle 40 foot curtain trailer are covered with tarpaulins; the internal structure is mostly made of aluminum alloy; at the same time, air suspension is applied; compared with traditional cargo transport trailers, the weight can be reduced by 30-40%.

2. The top of the curtain trailer and the curtains on both sides can be fully opened, allowing multiple forklifts to operate at the same time, reducing labor input and improving loading and unloading efficiency.

3. The columns, curtains, sliding locking devices and other components of the curtain trailer are all made by mature supply chain manufacturers, which ensures the basic quality and stronger functionality.


Manufacturer: YUHANG 3 Axle 40Ft Curtain Trailer

Overall Dimension: 13300*2500*4500mm

Payload: 50 tons

Side: PVC waterproof curtain

Frame Beam: upper and lower plate is 14mm and 16mm, web plate 8 mm, height is 500 mm

Axle: 3 axle 13 ton, BPW/FUWA brand

Tire: 12 units

Suspension: mechanical spring suspension or air suspension

Landing Gear: JOST brand 28 tons

King Pin: 2.0 or 3.5 inch

Brake System: WABCO brake valve

Electrical System: 24V, LED lamp

ABS: optional

Accessories: one standard tool box, spare tire carrier
