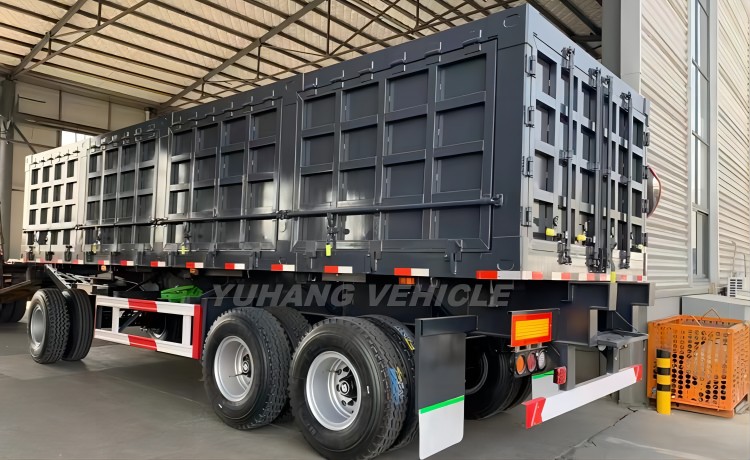

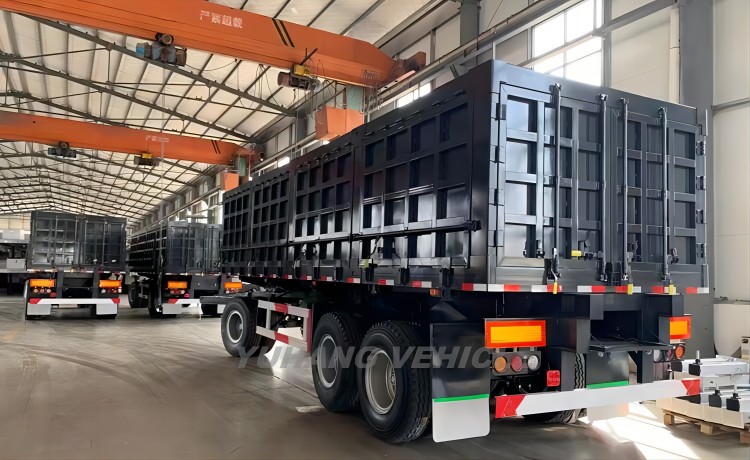

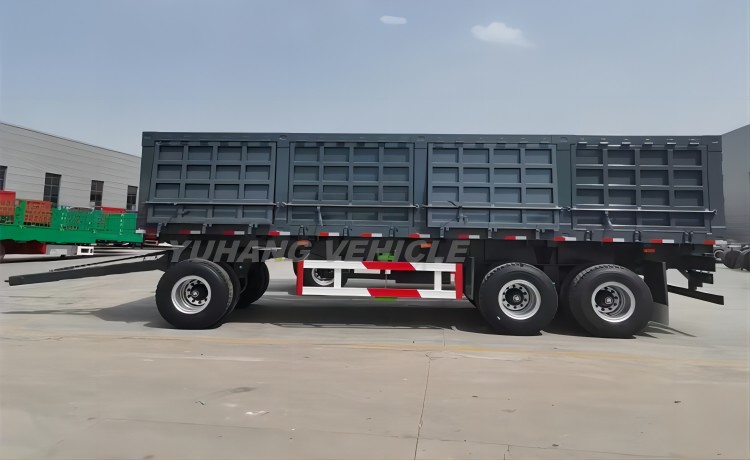

Tri Axle Dump Full Trailer
Tri axle dump full trailer is our very popular model, which is mainly used to transport grain, daily necessities, cotton and other bulk goods. 100% quality assurance, 100% lowest price.
Manufacturer: YUHANG VEHICLE
Type: tri axle dump full trailer
Loading Weight: 20-40 ton
Delivery Date: 10-25 days
Price: discuss in detail
Tri axle dump full trailer is mainly composed of frame, traction device, steering device, suspension, walking system, braking system, hydraulic system and other structures.
Our full trailer trailer completely bears the weight of the cargo by itself, and is only connected to the tractor with a hook, and the tractor provides power to help it overcome frictional resistance.
YUHANG brand full dump trailers are widely used in airports, ports, railway stations, factories and large warehouses, greatly improving the efficiency of cargo transfer and reducing the cost of manpower consumption.
We have more different types and specifications of dump semi trailer for you to choose, which can meet all your transportation needs.
Tri axle dump full trailer for sale
China 50 ton dump drawbar trailer supplier–YUHANG
Dump drawbar full trailer with best price
1. The drawbar of the tri axle dump full trailer can swing up and down, left and right, making it more flexible to drive on uneven or rugged roads.
2. The dump full trailer is a unique trailer-type transportation method, which can be connected to multiple drawbar trailers at the same time, greatly improving its loading and transportation capacity.
3. The drawbar full trailer is easy to maintain and reduces additional investment costs.
4. Low fuel consumption, fuel consumption per 100 kilometers is about 35% lower than that of truck and semi trailer.
Overall Dimension: 7500mm*2500mm*3500mm
Axle: 3 axle, 13t, BPW/FUWA brand
Lifting System: HYVA hydraulic cylinder
Tire: 12 units*12.00R22.5 or 315/80R22.5
Suspension: mechanical suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers
Brake System: WABCO
Electical System: 24V, LED lights
