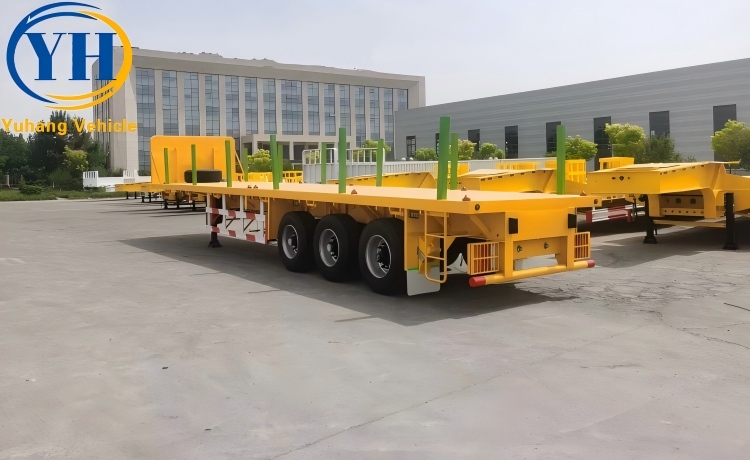

3 Axle Wood Transport Trailer

Description

Description：

The 3 axle wood transport trailer is mainly used in the field of forestry or wood processing to transport logs, timber, wood or containers. This is our very popular vehicle and a favorite with many customers.

It can meet all the transportation requirements of customers in the wood industry, and has the characteristics of large loading capacity, flexible operation, easy fixing and low investment cost.

YUHANG has its own physical factory, which directly produces and sells wood transport trailer to customers, which will make it have the best quality and the lowest price.

3 axle wood transport trailer for sale

High quality timber semi trailer with best factory price

China’s famous log trailer manufacturer — YUHANG

Advantage：

A: The main beam is made of Q345B high-strength steel plate, which has high loading capacity and long service life.

B: All components adopt robot automatic welding technology, with high welding quality, tight weld seams, no deformation and no breakage.

C: Electrophoretic powder spraying and baking paint process, the whole vehicle is full of gloss, and the color of the body is softer.

D: Spray wax and cover tarpaulin during transportation to prevent seawater and rainwater erosion and ensure that the vehicle is intact.

Specification:

Brand: YUHANG 3 axle wood transport trailer

Application: transport log/timber or containers

Overall Dimension: 12,500mm*2,500mm*1,550mm

Side Column: 12 pcs or customize

Frame Beam: upper and lower plate is 14mm and 16mm, web plate 8 mm, height is 500 mm

Axles: 3 axle*13 ton, BPW or FUWA brand

Tire: 12 units

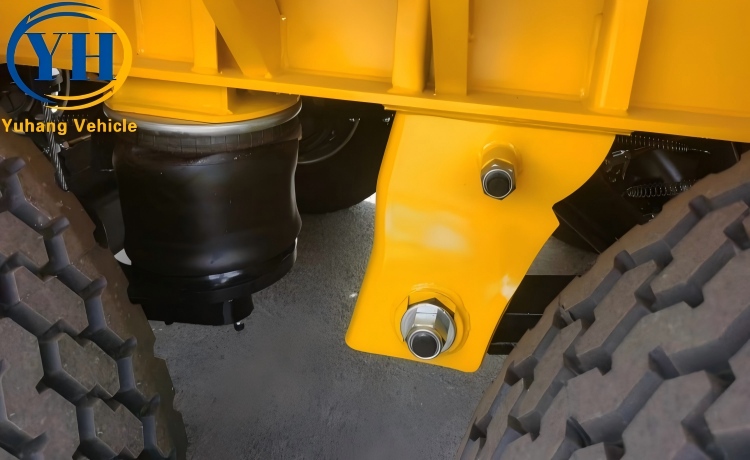

Suspension: mechanical spring suspension or air suspension

King Pin: 3.5 inch JOST brand

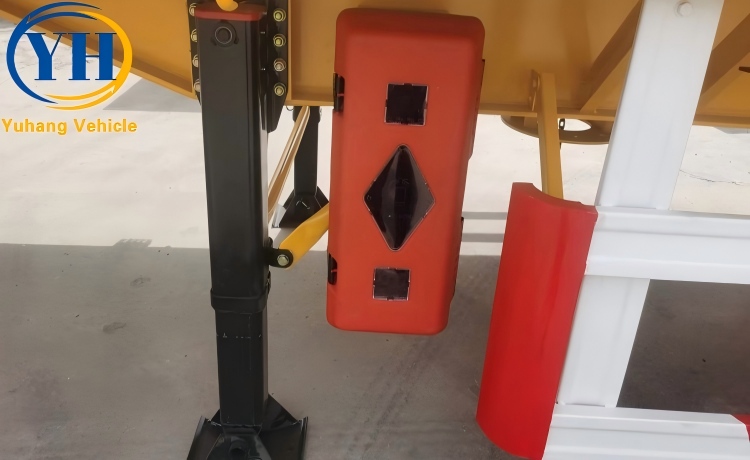

Landing Gear: JOST brand 28 ton

Brake System: WABCO

Electical System: 24V, LED lights

ABS: optional

---
