60 Ton Bulk Grain Trailer For Sale

Description

Description：

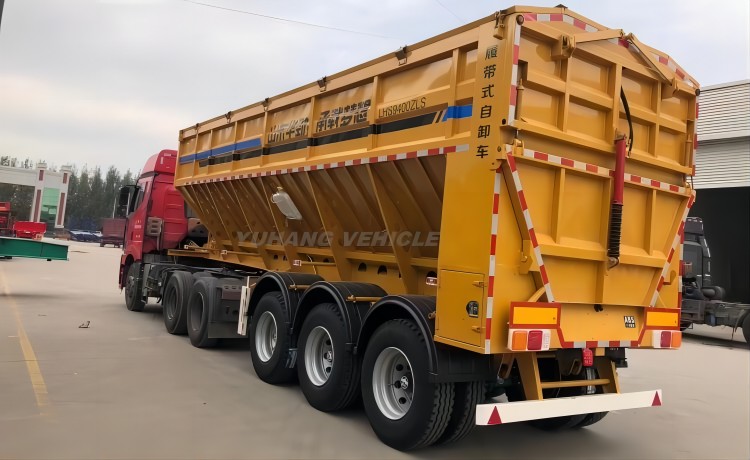

60 ton bulk grain trailer uses an intelligent conveyor belt to unload goods. It is a new type of semi trailer independently developed and produced by Shandong YUHANG VEHICLE.

This series of trailer is mainly suitable for the transportation of bulk goods, such as: gravel, coal, grain, asphalt, clinker, etc. The unloading speed of the goods is fast, clean and free of residue.

Our bulk grain trailer compartment is a square box body welded as a whole, with a large load-carrying capacity and an anti-expansion box frame structure, which can be adapted to more types of goods and working environments.

YUHANG brand crawler dump trailers will be equipped with waterproof rain cloth or aluminum alloy canopy to protect the integrity of the cargo and protect the rights and interests of customers.

Tri axle bulk grain trailer for sale

China 60 ton conveyor belt dump trailer manufacturer—–YUHANG

Advantage：

1. The 60 ton bulk grain trailer is made of high-strength steel plate with a more scientific structure. The vehicle itself is light in weight and has a strong effective loading capacity.

2. The conveyor belt unloading method does not lift the carriage, and is not limited by uneven ground, site space and workshop height. The operation is more simple and flexible.

3. The center of gravity of the whole vehicle is low, and compared with traditional dump truck semi trailer, the safety factor is higher, and there is no risk of rollover when unloading goods.

4. The back door is hydraulically opened automatically, saving time and effort, and the two-way monitoring of reversing and unloading allows the driver to complete the whole process of unloading without getting out of the vehicle.

Specification:

Brand: YUHANG 60 Ton Bulk Grain Trailer For Sale

Box Dimension: 9500mm*2500mm*1500mm

Payload: 60 ton or customize

Unloading Method: transport by conveyor belt

Main Beam: Q345B carbon steel, ‘I” type

Frame Beam: upper and lower plate is 14mm and 16mm, web plate 8 mm, height is 500 mm

Box thickness: bottom plate 4mm, side plate 3mm

Axle: 3 axle*13 ton BPW or FUWA brand

Landing Gear: JOST brand 28 tons

King Pin: 2.0 or 3.5 inch

Suspension: heavy duty mechanical suspension

Leaf Spring: 90mm(w)*16mm(t)*10pcs

Tires: 12R22.5, 315/80R22.5

Hydraulic System: HYVA brand

Color/ABS: optional

---
