Tri Axle Curtain Trailer For Sale

Description

Description：

Tri axle curtain trailer is mainly composed of chassis, columns, beams, curtain cloth and other components, and is mainly used for the transportation of pallets, steel coils and other bulk cargos.

We have 2 axle, 3 axle, 4 axle curtain trailer for sale, its loading capacity is 30-80 tons, this type of vehicle is similar to van transport semi trailer, side curtain can be moved to any position, very convenient for loading and unloading goods.

YUHANG factory has designed a special sliding structure, the side curtains and the top of the trailer can be opened independently and freely, and the whole process only takes 30 seconds.

Tri axle curtain trailer for sale

50 ton curtain side trailer prices

YUHANG 2024 brand new curtain trailers factory

Advantage：

1. Our side curtain semi trailer has more application advantages and performance, and the two sides can load and unload goods at the same time, with high work efficiency and can provide customers with more profit value.

2. It is light in weight, and the internal structure and beams are mostly made of aluminum alloy material, which greatly improves the loading capacity of the side curtain trailer.

3. At the same time, our curtain trailers are well ventilated, easy to clean and low maintenance.

Specification:

Model: Tri Axle Curtain Trailer For Sale

Overall Dimension: 13000*2500*4500mm

Payload: 50 ton or customize

Side: PVC waterproof curtain

Frame Beam: upper and lower plate is 14mm and 16mm, web plate 8 mm, height is 500 mm

Axle: 3 axle 13 ton, BPW/FUWA brand

Tire: 12 units

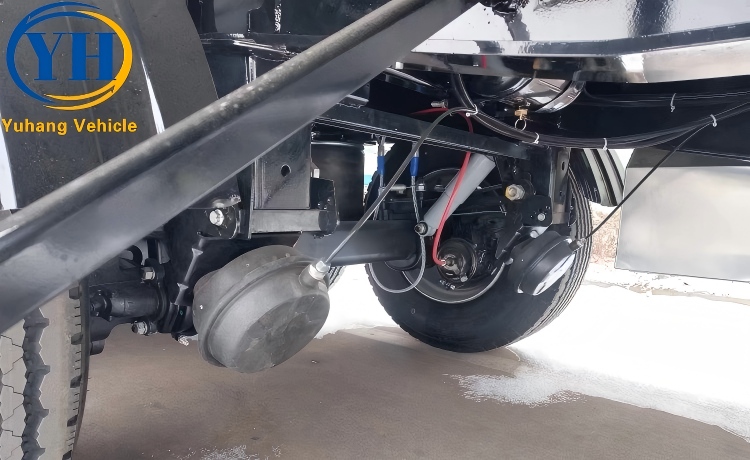

Suspension: mechanical spring suspension/air suspension

Landing Gear: JOST brand 28 tons

King Pin: 2.0 or 3.5 inch

Brake System: WABCO brake valve

Electrical System: 24V, LED lamp

ABS: optional

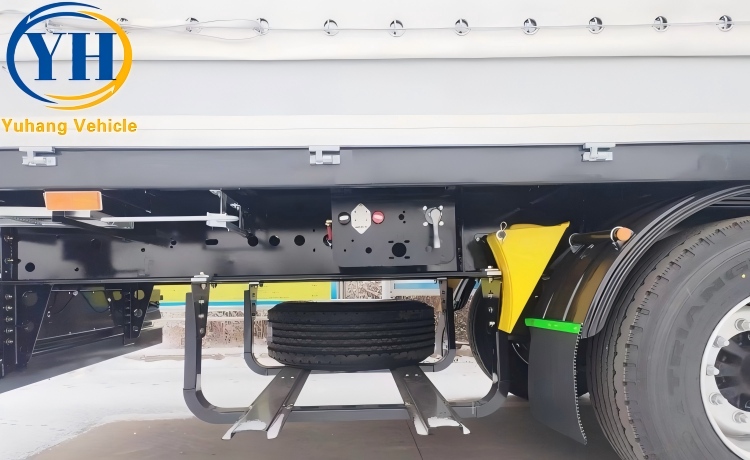

Accessories: one standard tool box, spare tire carrier

---
