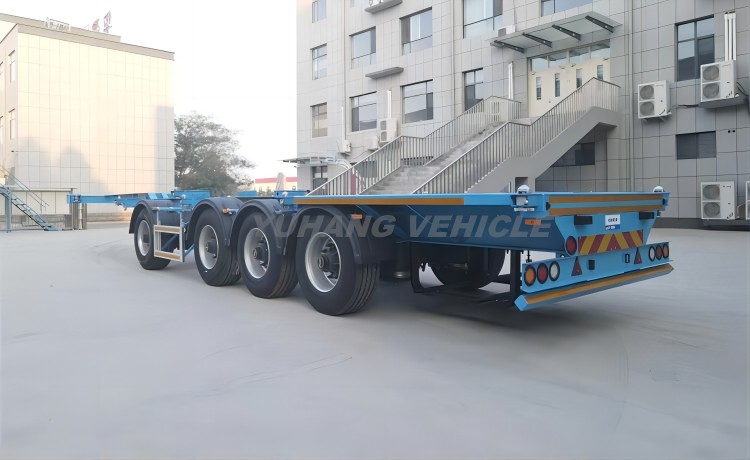

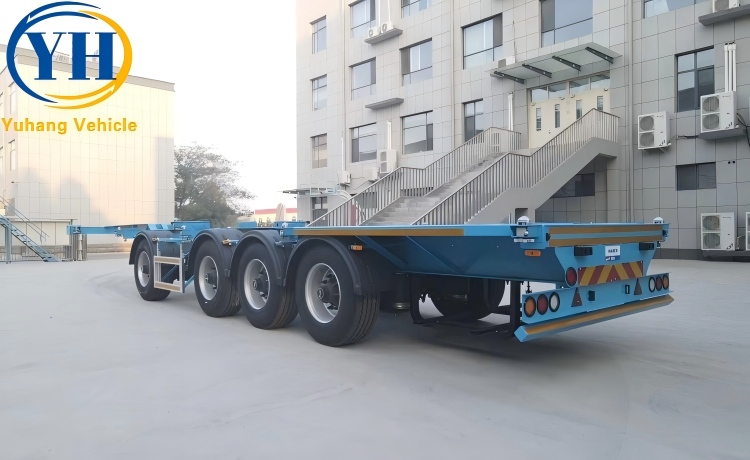

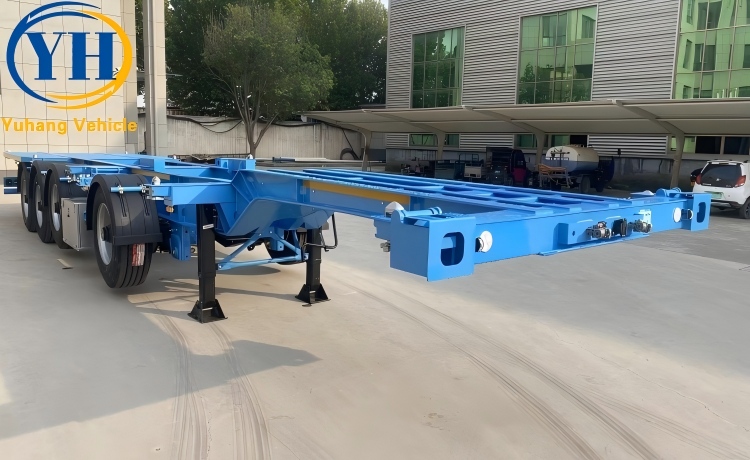

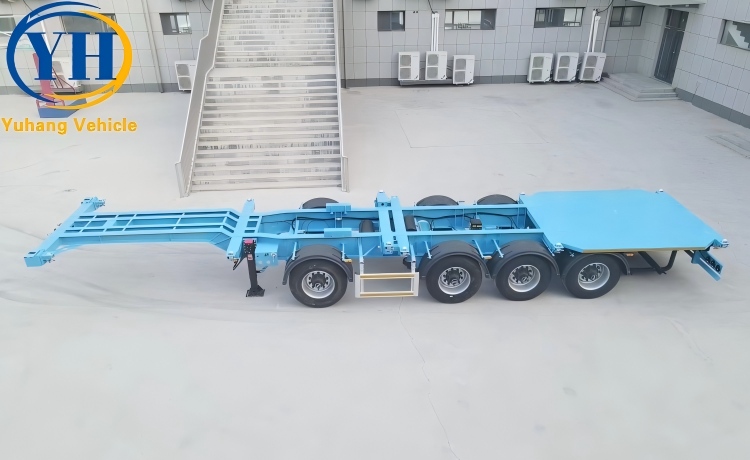

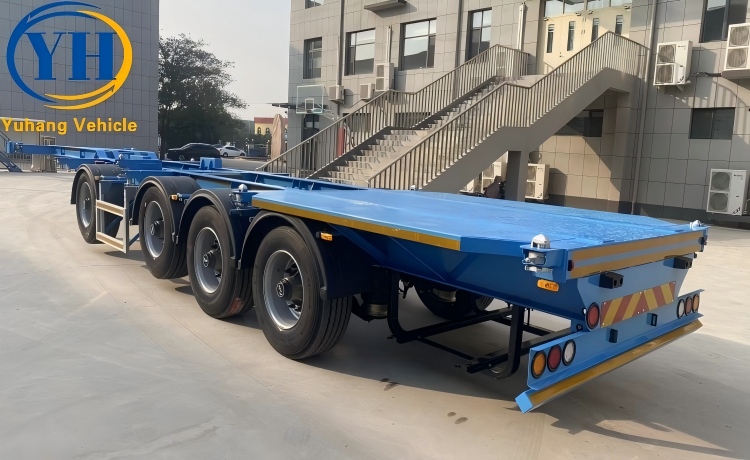

45 Feet Skeletal Trailer

Description

Description：

The 45 feet skeletal trailer is mainly used for container loading and transportation in application scenarios such as: ships, ports, shipping lines, roads, and transfer stations.

We have different types and specifications of skeletal semi trailers for sale, which can be used to transport 20, 40, 45, 48, 53 feet containers. Giving you the lowest price.

Our skeletal trailer can realize the fast loading and unloading of containers, greatly improve work efficiency, reduce labor costs, and create more profit value for customers.

YUHANG brand container chassis trailer has a reasonable design structure, light weight, and flexible steering, which increases the payload of the vehicle and reduces fuel consumption.

45 feet multifunction skeletal trailer for sale

4 axle container chassis trailer with best price

China’s leading skeleton semi trailer manufacturer–YUHANG factory

Advantage：

1. The main beam is made of uncut original steel plate, which makes the 45 feet skeletal trailer stronger and more durable. More adaptable to more loading needs.

2. According to different road conditions, the advanced computer design auxiliary system is used to analyze the stress and bearing data to improve the safe operation factor of the vehicle.

3. Our container chassis trailer go through standard production processes such as: mechanical welding, vehicle shot blasting, primer treatment, and topcoat spraying to ensure that the vehicle meet high-quality standards.

4. YUHANG skeletal trailer will go through strict tests and pressure-bearing performance inspections before leaving the factory.

Specification:

Brand: YUHANG 45 Feet Skeletal Trailer For Sale

Dimension: 12500x2500x1500mm

Loading Capacity: 30-80t

Application: transport 20ft/40ft/45ft container

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, Q345B carbon steel

Axles: 4 axles, 13T/16T, FUWA/BPW/ other brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Twist Locks: 4, 8, 12 sets ISO standard (lifting or screw type)

Brake System: WABCO brake valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: polyurethane anti-corrosion paint

Accessories: one standard tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or 48ft HQ container

---
