2 Axle Skeleton Trailer For Sale

Description

Description：

We have different types of 2 axle skeleton trailer for sale, it is mainly used for container transportation in the scenes of ships, ports, terminals, shipping lines, roads, transfer stations, bridges, tunnels.

Our skeleton trailers can quickly realize container loading and unloading, ensure the integrity of the goods and save time, improve work efficiency, and create more profit value for you.

You can choose 20 foot, 40 foot, 45 foot, 48 foot skeleton trailers according to actual transportation needs, they all have good loading capacity and the best price.

YUHANG has experienced technical engineers to provide you with design and custom container chassis trailers, which are more suitable for your transportation requirements and comply with local regulations.

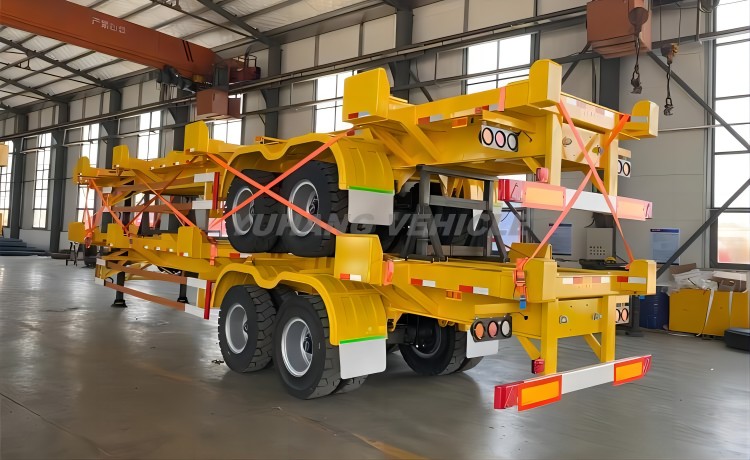

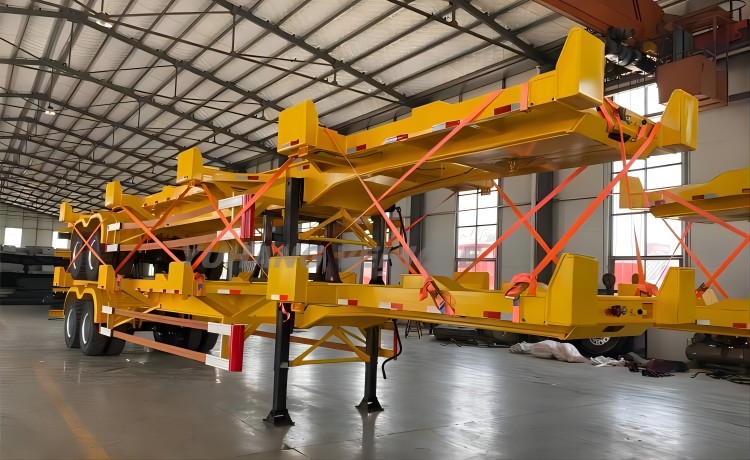

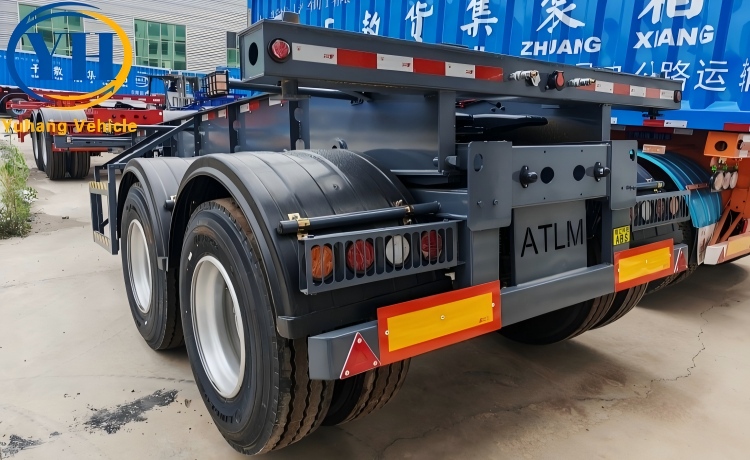

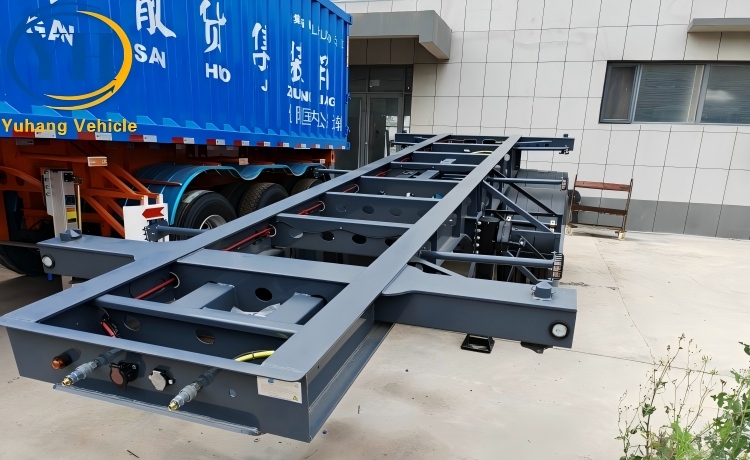

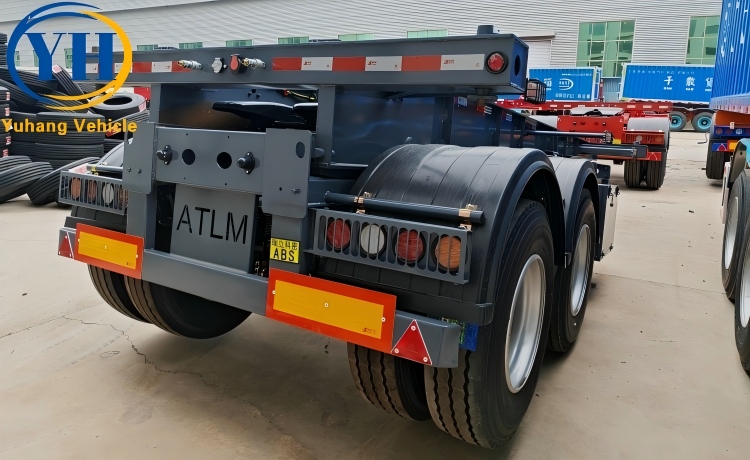

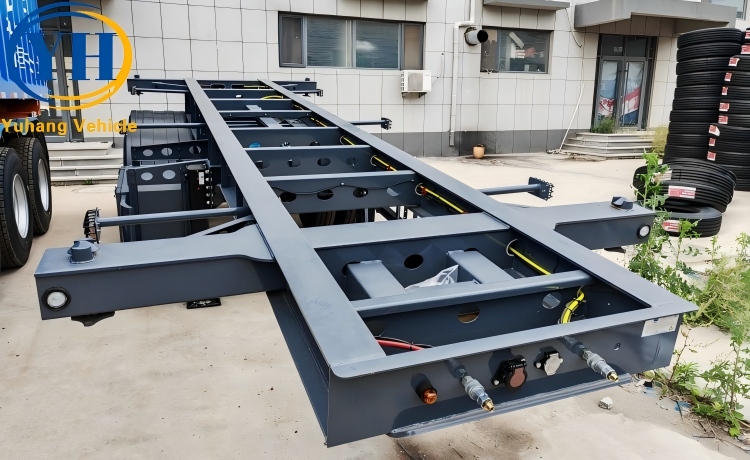

2 axle skeleton trailer for sale

20 feet container chassis trailer price

China famous skeletal trailer manufacturer–YUHANG

Advantage：

1. The main beam is made of uncut original steel plate, which makes the skeleton trailers more sturdy and durable.

2. According to different road conditions, the advanced computer design auxiliary system is used to analyze the stress and bearing data to improve the safe operation factor of the vehicle.

3. The brake system is equipped with WABCO brand to improve the braking performance of the container chassis trailer.

4. The high-strength and wear-resistant tires developed by the factory can safely drive 300,000 kilometers.

5. YUHANG factory directly sells skeleton trailers, reducing customer purchase costs.

Specification:

Dimension: 11000x2500x1500mm

Loading Capacity: 40t or customized

Application: transport 20ft/40ft iso container

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, Q345B carbon steel

Axles: 2 axles, 13T/16T, FUWA/BPW/ brand

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: mechanical suspension or air suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand 28 ton, double speed

Twist Locks: 4,8,12 sets (lifting or screw type)

Brake System: WABCO brake valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: polyurethane anti-corrosion paint

Accessories: one standard tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or 45ft HQ container

---
