40 Feet Container Moving Trailer

Description

Description：

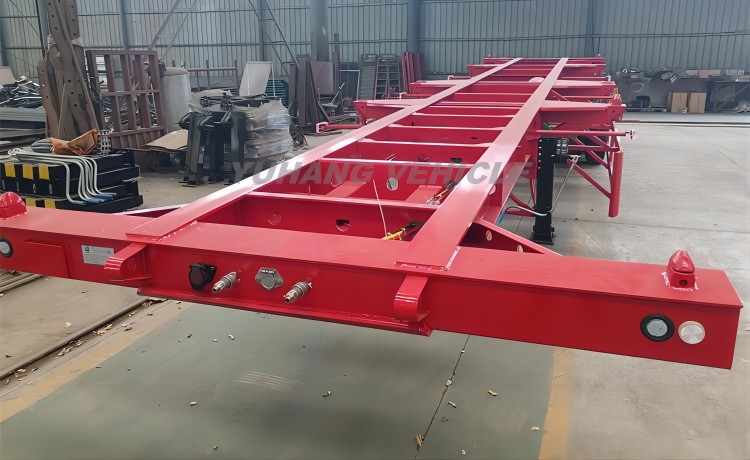

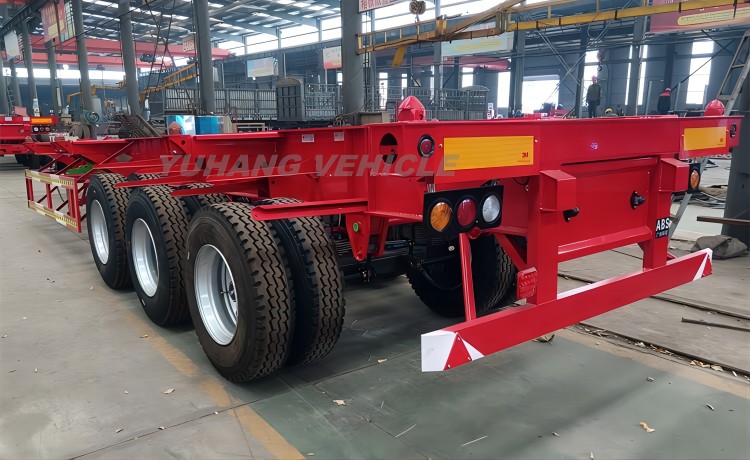

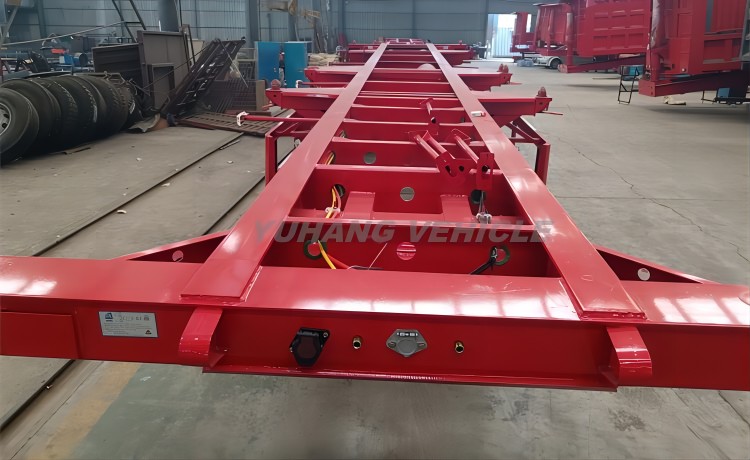

Tri axle 40 feet container moving trailer is mainly used for different types of container transportation in ports, docks, shipping lines, bridges, tunnels, transfer stations.

Our container chassis trailer is reasonable in structure, economical and durable, and easy to operate, which can help customers save transportation costs and create more profit value.

YUHANG have 20 foot, 40 foot, 45 foot, 48 foot and 53 foot skeleton trailers for sale, the factory sells directly, there is no middleman to make the difference, and the quality is 100% guaranteed.

The loading capacity of the container moving trailer is 30-80 ton for you to choose, and we always insist on providing the highest quality and comprehensive services.

40 feet container moving trailer for sale

3 axle skeletal semi trailer with best price

China famous container chassis trailer supplier–YUHANG

Advantage：

● YUHANG uses high tensile strength steel plates to maximize trailer payload and increase customer profitability.

● The vehicle loading platform, especially the stress point, is reinforced with additional welded ribs to increase the service life of the container moving trailer.

● The whole vehicle adopts robot automatic tracking welding, the solder joints are tight and firm, and the welding quality is high.

● Using world-renowned brand spare parts to save maintenance time and cost for customers.

● The whole vehicle has complete side lights and ceiling lights, and the body is eye-catching at night to ensure safer driving.

Specification:

Model: Triaxle 40 Feet Container Moving Trailer

Dimension: 12500x2500x1500mm

Loading Capacity: 30-80t

Application: transport 20ft/40ft container

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, Q345B carbon steel

Axles: 3 axles, 13T/16T, FUWA/BPW/ brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5, Bridgestone/Triangle/Linglong brand

Rim: 9.00-22.5 or 9.75-22.5

Suspension: mechanical suspension or air suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Twist Locks: 4,8,12 sets (lifting or screw type)

Brake System: WABCO brake valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: polyurethane anti-corrosion paint

Accessories: one standard tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or 45ft HQ container

---
