Aluminum Alloy Tanker Trailers

18900 USD

We are a high quality tanker trailers manufacturer from China, we have 45000 liters aluminum alloy tanker trailers for sale with the best price.

Model: 45000 liters aluminum alloy tanker trailers

Material: aluminum alloy

Delivery Date: 10-25 days

Application: transport gasoline, diesel, crude oil, lubricating oil, coal tar, palm oil, etc.




The tankers for sale tank body of the 45000 liters aluminum alloy tanker trailers is made of high-quality aluminum-magnesium alloy, with light weight, high strength and stable center of gravity.

The independent sub-compartment structure design can be used to load different liquids such as fuel, gasoline, diesel, water, palm oil, and edible oil.

The aluminum alloy tanker trailers for sale has good corrosion resistance, the service life can reach more than 15 years, the maintenance cost is low, and the economic benefit is high.

The effective loading capacity of the tanker trailers have 36,000 liters, 40,000 liters, 45,000 liters, 60,000 liters and other configurations. YUHANG VEHICLE can support customization according to the actual needs of customers.

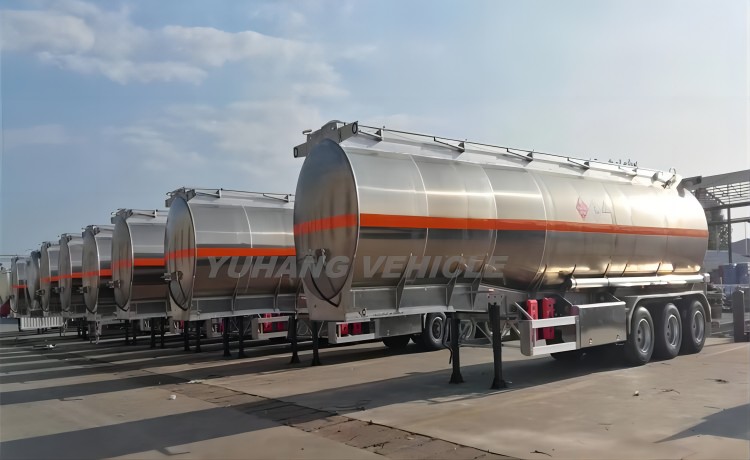

Aluminum Alloy Tanker Trailers-YUHANG VEHICLE45000 liters aluminum alloy tanker trailers for sale

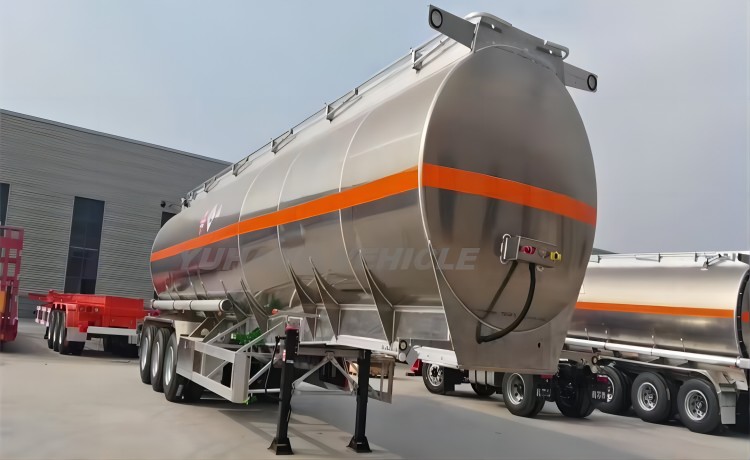

Aluminum Alloy Tanker Trailers-YUHANG VEHICLETriaxle aluminum alloy fuel tank trailer price

Aluminum Alloy Tanker Trailers-YUHANG VEHICLEChina aluminum alloy tanker trailers supplier


1. The tank body is automatically welded by an advanced large-scale special welding machine.

2. The manhole is an explosion-proof cover, and the water outlet at the bottom of the tank is equipped with an emergency shut-off valve.

3. Strict safety performance test to ensure that the tank body is highly sealed to avoid leakage.

4. The anti-wave plate reduces the effective impact of the liquid on the tank body.

5. Spray advanced polyurethane paint, beautiful appearance, easy to clean.

6. Use world-renowned components to save cost and prolong service life.


Dimension: 12000*2500*3800mm

Load Volume: 45000 liters

Application: transport fuel, petrol, oil, etc

Tank Body Material: aluminum alloy

Compartments: 5 compartments or customized

Manhole Cover: 5 Pcs

Discharging Valve: 5 pcs API valve, 3 or 4 inch

Discharging Pipe: 2 pcs, 6m/each

Main Beam: Q345 carbon steel material

Axle: 3 axles, 13 tons FUWA/BPW brand

Landing Gear: JOST brand 28 tons lifting capacity

King Pin: 3.5 inch

Suspension: heavy duty mechanical suspension

Leaf Spring: 90mm(w)*12mm(thickness)*10 Layers

Tire: 12 units, 12R22.5

Brake System: WABCO brand

Electrical System: 24V, LED lights

Color: optional

All the accessories we choose are purchased and processed through formal channels. To ensure the highest quality and working performance of fuel tank semi trailer.

Aluminum Alloy Tanker Trailers-YUHANG VEHICLESteel Plate/Axle/Tires/Leaf Springs/Suspension/Landing Gear

Choose YUHANG:

The fuel tanker trailer tank body we sell use advanced large-scale special automatic welding machinery and equipment. The tank body is formed in one step, which reduces the number of welding times and improves the safety performance of the tank body by at least 30%. After the tank body and other accessories are welded, they will be sanded and painted again to make the tanker semi trailer stronger, safer, more durable, more economical and environmentally friendly.

At the same time, we have advanced testing equipment to analyze and study the composition, hardness, quality, and physical phase of metal at any time to ensure that the processed materials fully meet the standards. YUHANG factory will also inspect and correct weld defects, paint thickness, tank body stress, and penetration to ensure that the trailer is 100% problem-free. The processing conditions under strict procedures make the transportation center of gravity of the fuel tanker trailer more stable and the sales price more stable and reliable, which greatly increases the later working time of the tank truck trailers.

Aluminum Alloy Tanker Trailers-YUHANG VEHICLE

Fuel Tank Semi Trailer Manufacturing Process:

1. Design: The manufacturing factory should carry out the design, configuration, structure and material layout of the tanker trailer based on the actual transportation needs of the customer and market regulations. At this time, factors such as: the trailer’s load, cargo type, usage environment, tank body pressure, etc. need to be comprehensively considered.

2. Manufacturing: This process requires the production of vehicle frames, tank body, manhole covers, wave protection plates and other components according to design drawings. At this time, various professional equipment will be used to perform cutting, stamping, riveting, welding and other related operations to ensure that the structure of the trailer is strong and stable.

3. Assembly: At this stage, the manufactured components need to be installed together with axles, tires, leaf springs, tool boxes, braking systems, lights, etc. During the assembly process, the relationship between each component needs to be considered to ensure the overall performance and work efficiency of the trailer.

4. Inspection: Finally, a comprehensive quality inspection is required on the completed oil tank semi trailer to ensure the safety and reliability of the trailer. The inspection content mainly includes: whether the appearance, size and installation of the trailer meet the requirements, and whether the various functions are normal.

Aluminum Alloy Tanker Trailers-YUHANG VEHICLE

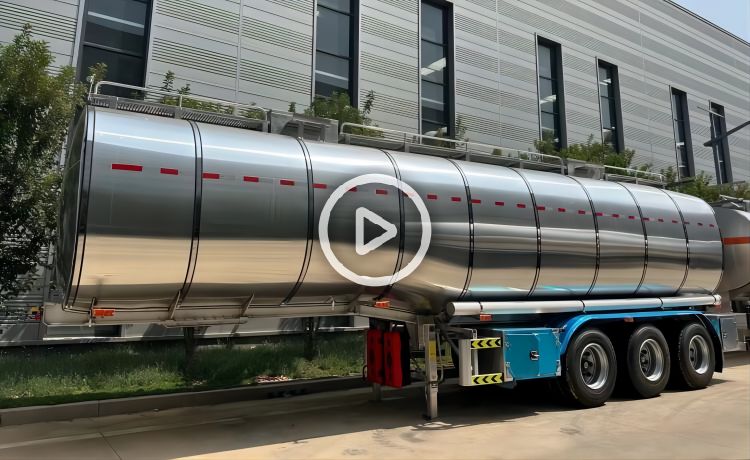

Aluminum Alloy Tanker Trailer Video:

Aluminum Alloy Tanker Trailers-YUHANG VEHICLE

Do you need to know more details or features about our fuel tanker trailers and oil tank semi trailers? Please feel free to contact YUHANG or directly fill in the inquiry information in the form below.
