42000L Diesel Tankers Trailer

Description

Description：

YUHANG factory popular diesel tanker trailer is mainly used for the transportation of liquid goods, such as: gasoline, diesel, palm oil, lubricating oil, water, milk, etc.

3 axle 42000l diesel tankers trailer for sale and we are a professional fuel tanker trailer manufacturer, we pay attention to every production detail of the tanker trailers.

The diesel tankers can quickly realize the loading, unloading, transportation and storage of liquid goods, saving labor and transportation costs.

The loading volume of our tank semi trailer ranges from 10,000 liters to 90,000 liters, and the diesel tankers trailer for sale can be divided into single compartments or multiple compartments.

42000l diesel tankers trailer for sale

3 axle oil tanker trailers with the best price

China fuel tanker trailer supplier–YUHANG

Advantage：

1. YUHANG VEHICLE oil tanker trailers adopts high-strength steel plate, which makes the tank body more uniform in force and stronger in bearing capacity.

2. A climbing ladder is installed inside the tank body for cleaning and repairing the tanker trailers.

3. A heel protector is installed on the top of the tank body, which improves the safety of the vehicle. Ladders and roof walkways are non-slip design structures.

4. Equipped with safety devices: the manhole is an explosion-proof cover, and the water outlet at the bottom of the tank body is equipped with an emergency shut-off valve.

5. The inner and outer double-layer welding ensures good sealing performance of the tank body and avoids leakage.

6. Spray polyurethane paint, beautiful appearance, corrosion resistance.

Specification:

Dimension: 11500mm*2500mm*3900mm

Volume: 42000 liters or customized

Application: transport fuel, oil, diesel, water, milk, etc.

Tank Body: 6mm thickness carbon steel material

Wave Plate: 5mm

End Plate: 6mm*Q235 carbon steel

Compartments: 3 compartments or optional

Manhole Cover: diameter 500mm*carbon steel

Discharge Valve: diameter is 3 or 4 inch

Bottom Valve: aluminum API pneumatic bottom valve

Main Beams: welded design Q345 carbon steel material

Axles: 3 units*FUWA/BPW brand

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10 layers or 10mm x12mmx12 layers

Brake System: WABCO

Rim: 9.00-22.5/8.00-20/8.5-20

Tire: 12 units, 12.00R22.5/315.80R22.5/11.00R20

Accessories: one standard tool box

All the accessories we choose are purchased and processed through formal channels. To ensure the highest quality and working performance of fuel tank semi trailer.

Steel Plate/Axle/Tires/Leaf Springs/Suspension/Landing Gear

Choose YUHANG:

The fuel tanker trailer tank body we sell use advanced large-scale special automatic welding machinery and equipment. The tank body is formed in one step, which reduces the number of welding times and improves the safety performance of the tank body by at least 30%. After the tank body and other accessories are welded, they will be sanded and painted again to make the tanker semi trailer stronger, safer, more durable, more economical and environmentally friendly.

At the same time, we have advanced testing equipment to analyze and study the composition, hardness, quality, and physical phase of metal at any time to ensure that the processed materials fully meet the standards. YUHANG factory will also inspect and correct weld defects, paint thickness, tank body stress, and penetration to ensure that the trailer is 100% problem-free. The processing conditions under strict procedures make the transportation center of gravity of the fuel tanker trailer more stable and the sales price more stable and reliable, which greatly increases the later working time of the tanker truck trailers.

Fuel Tank Semi Trailer Manufacturing Process:

1. Design: The manufacturing factory should carry out the design, configuration, structure and material layout of the tanker trailer based on the actual transportation needs of the customer and market regulations. At this time, factors such as: the trailer’s load, cargo type, usage environment, tank body pressure, etc. need to be comprehensively considered.

2. Manufacturing: This process requires the production of vehicle frames, tank body, manhole covers, wave protection plates and other components according to design drawings. At this time, various professional equipment will be used to perform cutting, stamping, riveting, welding and other related operations to ensure that the structure of the trailer is strong and stable.

3. Assembly: At this stage, the manufactured components need to be installed together with axles, tires, leaf springs, tool boxes, braking systems, lights, etc. During the assembly process, the relationship between each component needs to be considered to ensure the overall performance and work efficiency of the trailer.

4. Inspection: Finally, a comprehensive quality inspection is required on the completed oil tank semi trailer to ensure the safety and reliability of the trailer. The inspection content mainly includes: whether the appearance, size and installation of the trailer meet the requirements, and whether the various functions are normal.

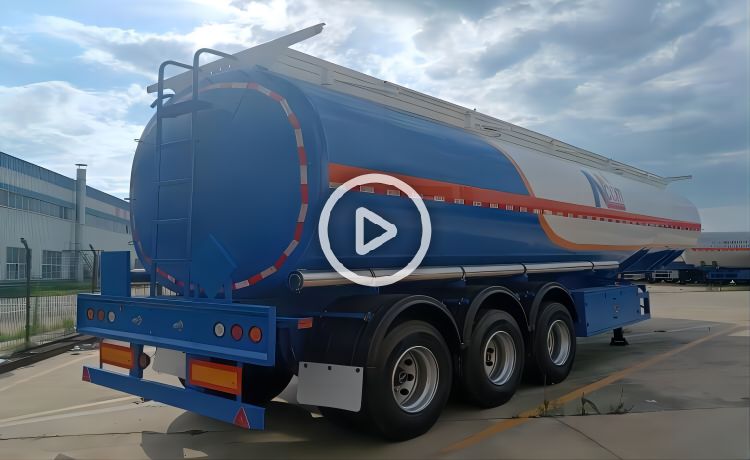

Tankers Trailer For Sale Video:

Do you need to know more details or features about our fuel tanker trailers and oil tank semi trailers? Please feel free to contact YUHANG or directly fill in the inquiry information in the form below.

---
