Fuel Tanker Trailer For Sale

Description

Description：

Fuel tanker trailer for sale refers to a special vehicle specially used to transport gasoline, diesel, kerosene, palm oil, edible oil, methanol and other liquids. All of our fuel tankers will greatly increase the efficiency of your transportation business.

The main structure of this series of trailers is composed of tank body, oil filling port, oil drain valve, manhole cover, oil pipe and other structures.

YUHANG is available in carbon steel, stainless steel, and aluminum alloy fuel tanker trailers for sale. The tank capacity can be loaded with 36,000 liters, 40,000 liters, 50,000 liters, and 60,000 liters. We can customize fuel tanker trailer according to customers’ needs.

The inside of the tank body is equipped with anti-wave boards to effectively slow down the impact of the liquid on the tank body. Different compartments are used inside the tank to transport different liquids.

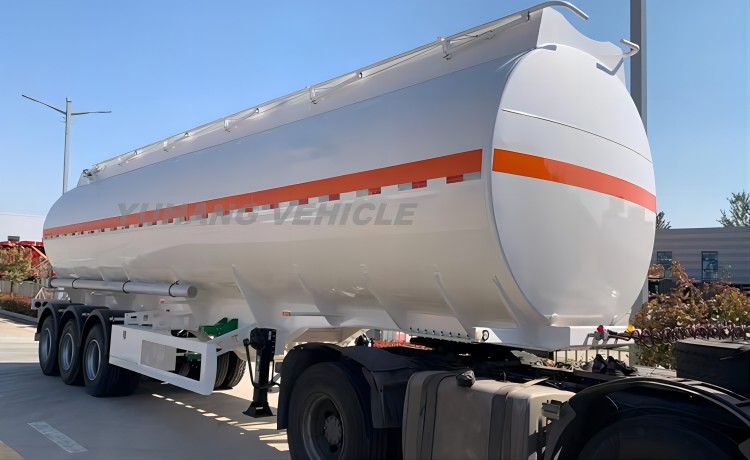

3 axle fuel tanker trailer for sale

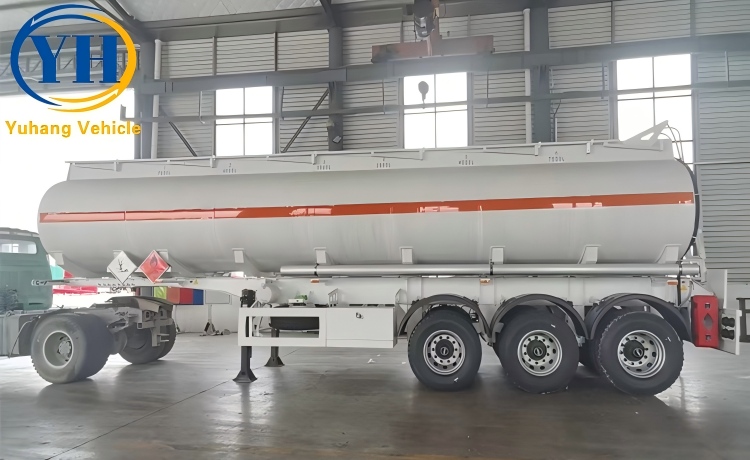

YUHANG 45000 liter fuel tanker trailers

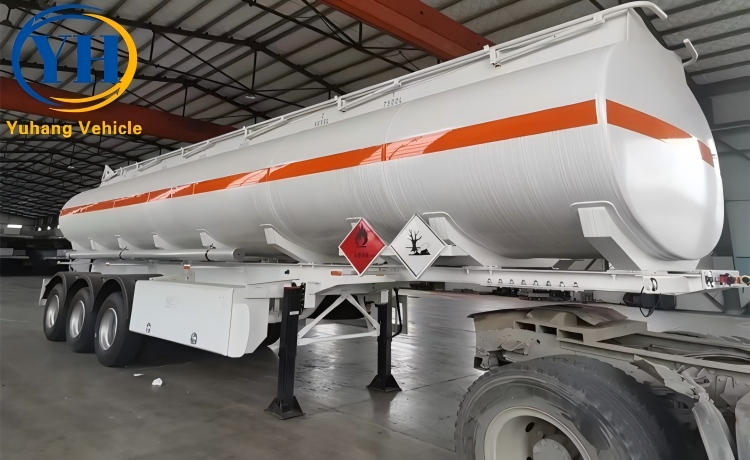

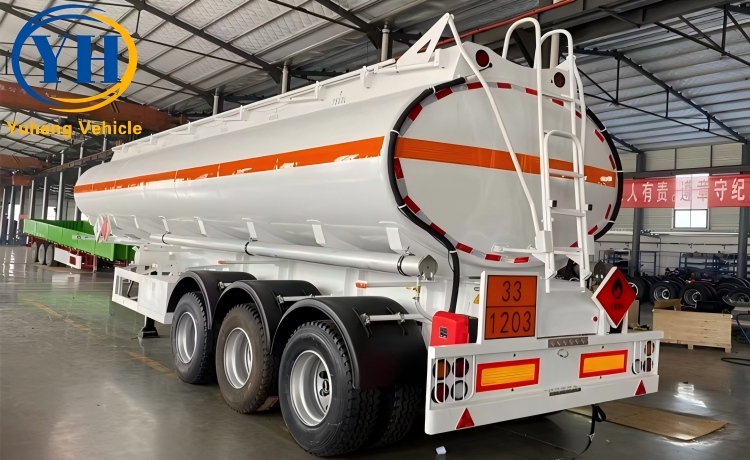

Tri axle 45cbm fuel tanker trailer will be sent to customer

Advantage:

1. The shape of the fuel tanker trailer for sale is an oval or square design structure, which is welded by high-quality steel plates, with high working strength and long service life.

2. The main beam is made of high-strength low-alloy steel plate, which can fully enhance its anti-torsion and anti-seismic capabilities, and meet the loading requirements of various complex road conditions.

3. The top of the tank body adopts the European standard manhole explosion-proof cover, with built-in breathing and emergency exhaust functions, and can lift and fold the guardrail.

4. Accessories are provided by well-known domestic and foreign manufacturers, such as BPW/FUWA axles, WABCO brake systems, etc.

Specification:

Dimension: 12000mm*2500mm*3800mm

Tare Weight: about 8500kg

Total Volume: 45m³ or customized

Main Beams: welded design Q345B carbon steel

Tank Body Material: 5mm Q235 carbon steel

End plate: 5mm Q235 carbon steel

Manhole Cover: carbon steel

Bottom Valve: aluminum API pneumatic bottom valve

Discharging Valve: diameter is 4 inch

Compartments: 5 compartments or customized

Discharging Pipe: 4 inch rubber hose, 2pcs, 6m/each

Axle: 3 axles*13T/14T/16T*BPW/ FUWA brand

Landing Gear: JOST brand

King Pin: JOST 2.0 or 3.5 inch

Suspension: mechanical suspension or air suspension

Leaf Spring: 90(w)mmx13(thickness)x10 layers

Braking System: WABCO brand

Rim: 9.00-22.5/8.00-20

Tire: 12 units, 12.00R22.5/315.80R22.5/11.00R20/12.00R20

ABS: optional

Painting: 1 layer of anticorrosive primer and 2 layer of top coats

Accessories: one standard tool box

Shipping Terms: by bulk cargo/RORO/container

All the accessories we choose are purchased and processed through formal channels. To ensure the highest quality and working performance of fuel tank semi trailer.

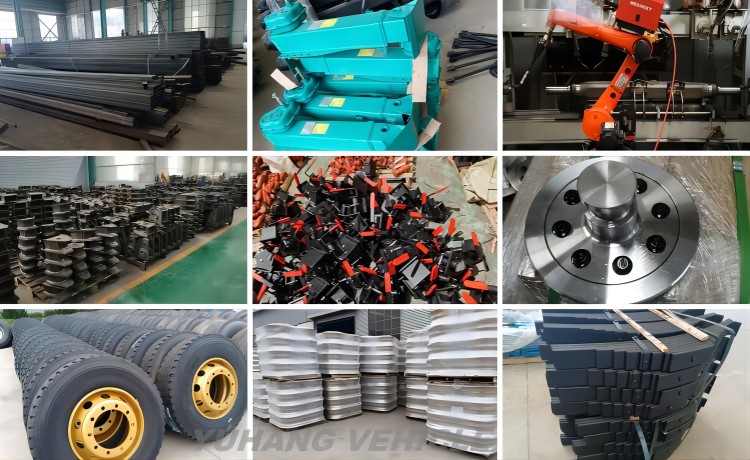

Steel Plate/Axle/Tires/Leaf Springs/Suspension/Landing Gear

Choose YUHANG:

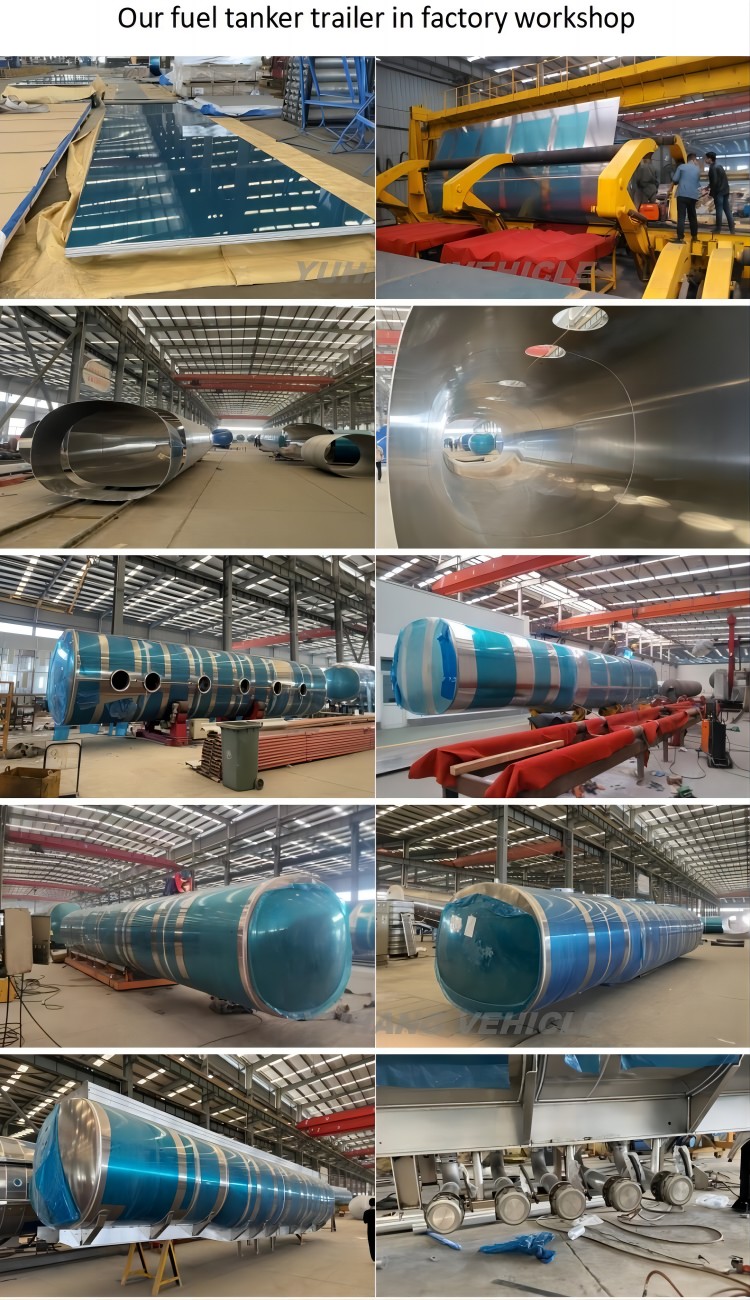

The fuel tanker trailer tank body we sell use advanced large-scale special automatic welding machinery and equipment. The tank body is formed in one step, which reduces the number of welding times and improves the safety performance of the tank body by at least 30%. After the tank body and other accessories are welded, they will be sanded and painted again to make the tanker semi trailer stronger, safer, more durable, more economical and environmentally friendly.

At the same time, we have advanced testing equipment to analyze and study the composition, hardness, quality, and physical phase of metal at any time to ensure that the processed materials fully meet the standards. YUHANG factory will also inspect and correct weld defects, paint thickness, tank body stress, and penetration to ensure that the trailer is 100% problem-free. The processing conditions under strict procedures make the transportation center of gravity of the fuel tanker trailer more stable and the sales price more stable and reliable, which greatly increases the later working time of the tanker truck trailers.

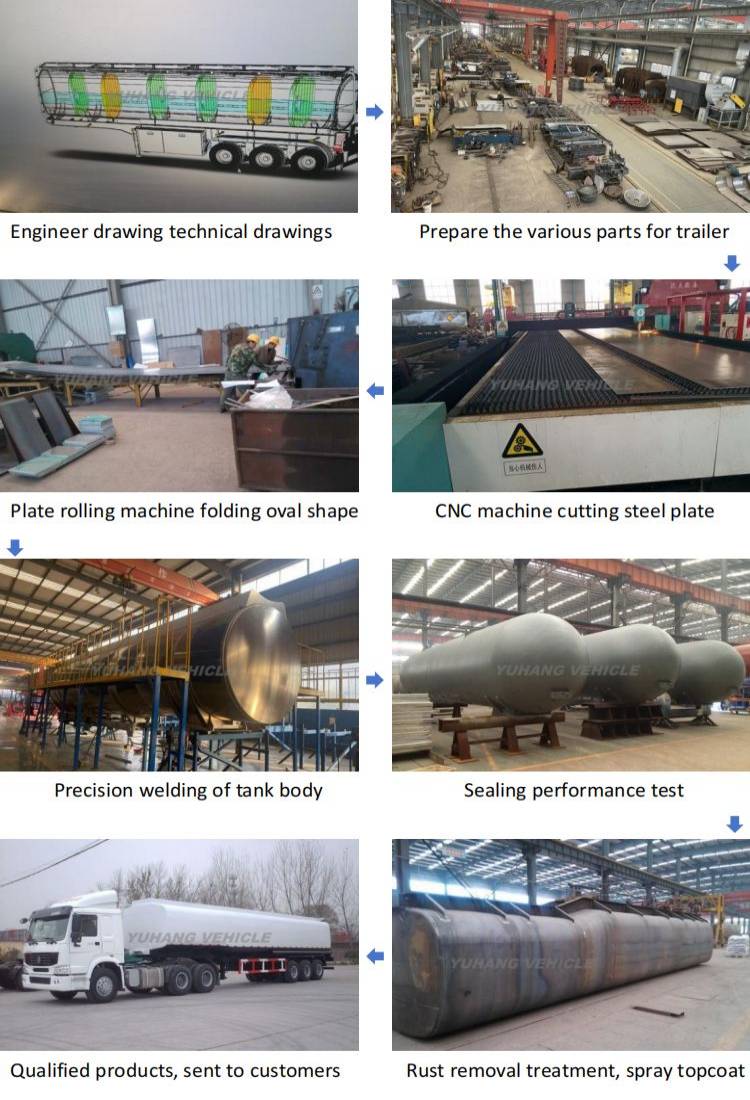

Fuel Tank Semi Trailer Manufacturing Process:

1. Design: The manufacturing factory should carry out the design, configuration, structure and material layout of the tanker trailer based on the actual transportation needs of the customer and market regulations. At this time, factors such as: the trailer’s load, cargo type, usage environment, tank body pressure, etc. need to be comprehensively considered.

2. Manufacturing: This process requires the production of vehicle frames, tank body, manhole covers, wave protection plates and other components according to design drawings. At this time, various professional equipment will be used to perform cutting, stamping, riveting, welding and other related operations to ensure that the structure of the trailer is strong and stable.

3. Assembly: At this stage, the manufactured components need to be installed together with axles, tires, leaf springs, tool boxes, braking systems, lights, etc. During the assembly process, the relationship between each component needs to be considered to ensure the overall performance and work efficiency of the trailer.

4. Inspection: Finally, a comprehensive quality inspection is required on the completed oil tank semi trailer to ensure the safety and reliability of the trailer. The inspection content mainly includes: whether the appearance, size and installation of the trailer meet the requirements, and whether the various functions are normal.

Fuel Tanker Trailer Video:

Do you need to know more details or features about our fuel tanker trailers and oil tank semi trailers? Please feel free to contact YUHANG or directly fill in the inquiry information in the form below.

---
