Tri Axle Stainless Tanker Trailer

12600 USD

Tri axle stainless tanker trailer is used to transport different liquids, such as: fuel, diesel, gasoline, water, palm oil, edible oil, etc.

Model: tri axle stainless tanker trailer

Material: stainless steel

Delivery Date: 10-25 days

Application: transport gasoline, diesel, crude oil, lubricating oil, coal tar, palm oil, etc.




Tri axle stainless tanker trailer is mostly used to transport liquid substances, such as: gasoline, diesel oil, vegetable oil, edible oil, palm oil, coal tar and so on. We are the biggest of the fuel tanker supplier base in China.

The tank body is made of 6mm high-quality stainless steel plate produced by a well-known steel company; the tank body has an oval or square structure.

There are multiple stainless steel anti-wave plates inside the tank body to reduce the direct impact of the liquid on the tank body, reduce loss and prolong the service life.

YUHANG VEHICLE can provide tanker trailers made of carbon steel, or stainless steel, or aluminum alloy material. The loading capacity supports customization, which can reach different specifications such as 40,000 liters, 50,000 liters, and 60,000 liters.

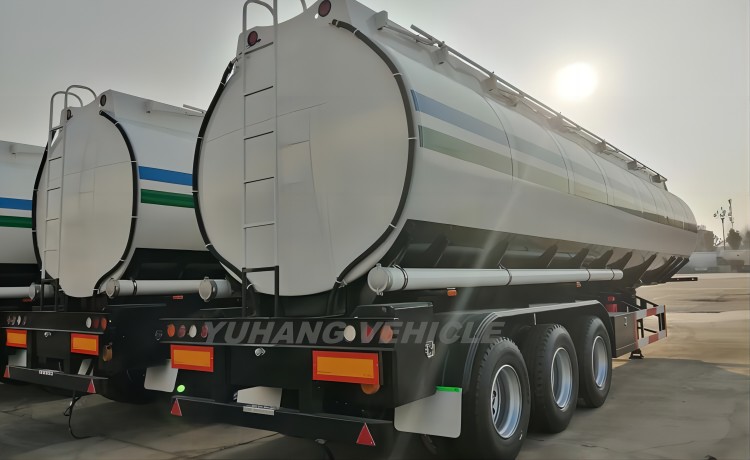

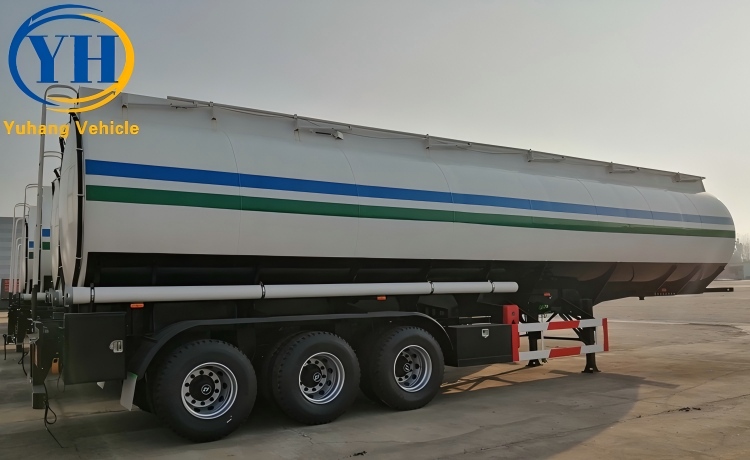

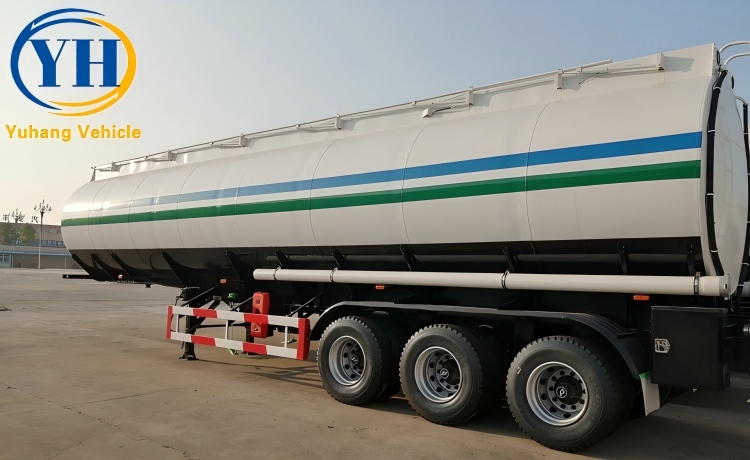

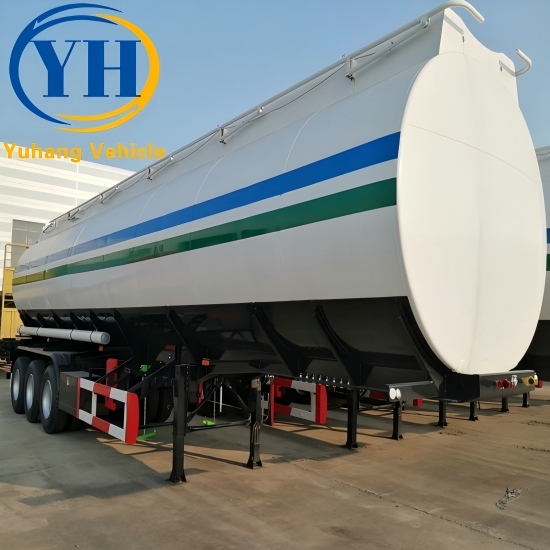

Tri Axle Stainless Tanker Trailer-YUHANG VEHICLETri axle stainless tanker trailer for sale

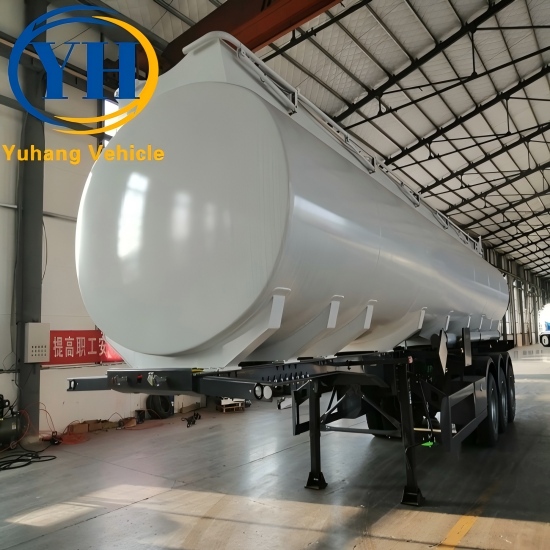

Tri Axle Stainless Tanker Trailer-YUHANG VEHICLE40000l stainless steel tanker truck trailer price

Tri Axle Stainless Tanker Trailer-YUHANG VEHICLEChina 3 axle stainless steel tanker manufacturer


1. The tank body is automatically welded by robots to ensure its high safety strength and increase its service life.

2. After the tank body is made, the airtightness test shall be carried out, and the gas pressure shall not be less than 50Kpa to ensure that the tank body is highly sealed.

3. After filling, water milling and testing, the whole tank is sprayed with polyurethane paint to ensure the tank trailer has a beautiful appearance and long-lasting bright colors.

4. YUHANG VEHICLE tanker trailers use world famous accessories to ensure the highest quality.


Overall Dimension: 12000mm*2500mm*3800mm

Application: transport fuel, petrol, diesel oil, palm oil, cooking oil

Tank Body Material: stainless steel

Tank Body Thickness(mm): tank body is 6mm, and front and back cap is 6mm

Main Beam: the height of the beam is 500 mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm

Axles: 13 ton*3 units*BPW/FUWA brand

Suspension: heavy duty mechanical suspension

Tire: 12R22.5*12 units

Discharging Pipe: 2 pcs, 6m/each

King pin: 90#

Landing gear: JOST brand

Brake system: WABCO

Electrical System: 24V, LED lights

Tool Box: 1 set

All the accessories we choose are purchased and processed through formal channels. To ensure the highest quality and working performance of fuel tank semi trailer.

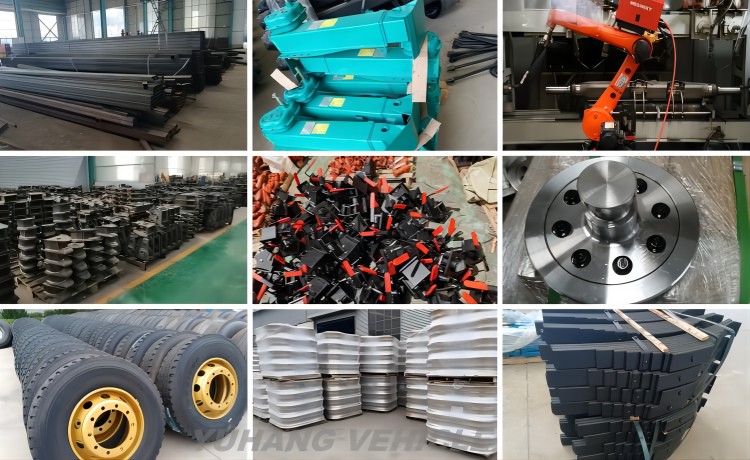

Tri Axle Stainless Tanker Trailer-YUHANG VEHICLESteel Plate/Axle/Tires/Leaf Springs/Suspension/Landing Gear

Choose YUHANG:

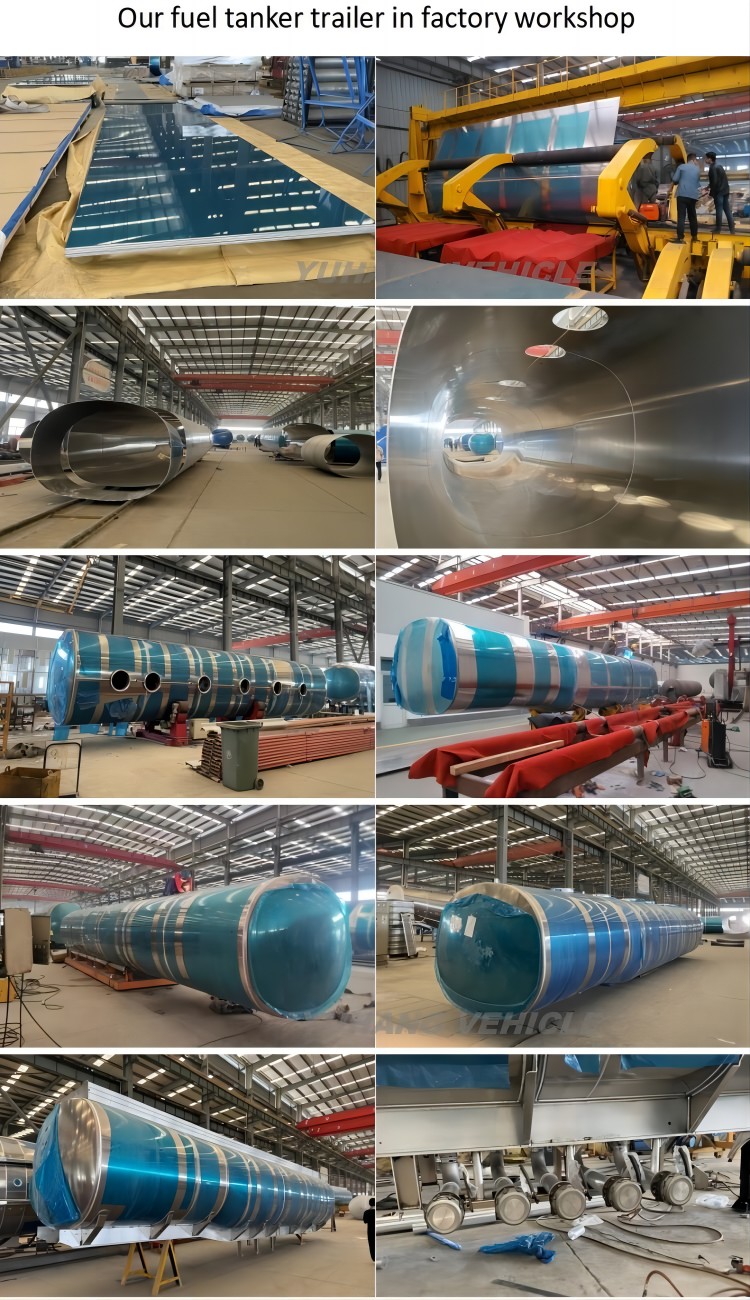

The fuel tanker trailer tank body we sell use advanced large-scale special automatic welding machinery and equipment. The tank body is formed in one step, which reduces the number of welding times and improves the safety performance of the tank body by at least 30%. After the tank body and other accessories are welded, they will be sanded and painted again to make the tanker semi trailer stronger, safer, more durable, more economical and environmentally friendly.

At the same time, we have advanced testing equipment to analyze and study the composition, hardness, quality, and physical phase of metal at any time to ensure that the processed materials fully meet the standards. YUHANG factory will also inspect and correct weld defects, paint thickness, tank body stress, and penetration to ensure that the trailer is 100% problem-free. The processing conditions under strict procedures make the transportation center of gravity of the fuel tanker trailer more stable and the sales price more stable and reliable, which greatly increases the later working time of the tanker truck trailers.

Tri Axle Stainless Tanker Trailer-YUHANG VEHICLE

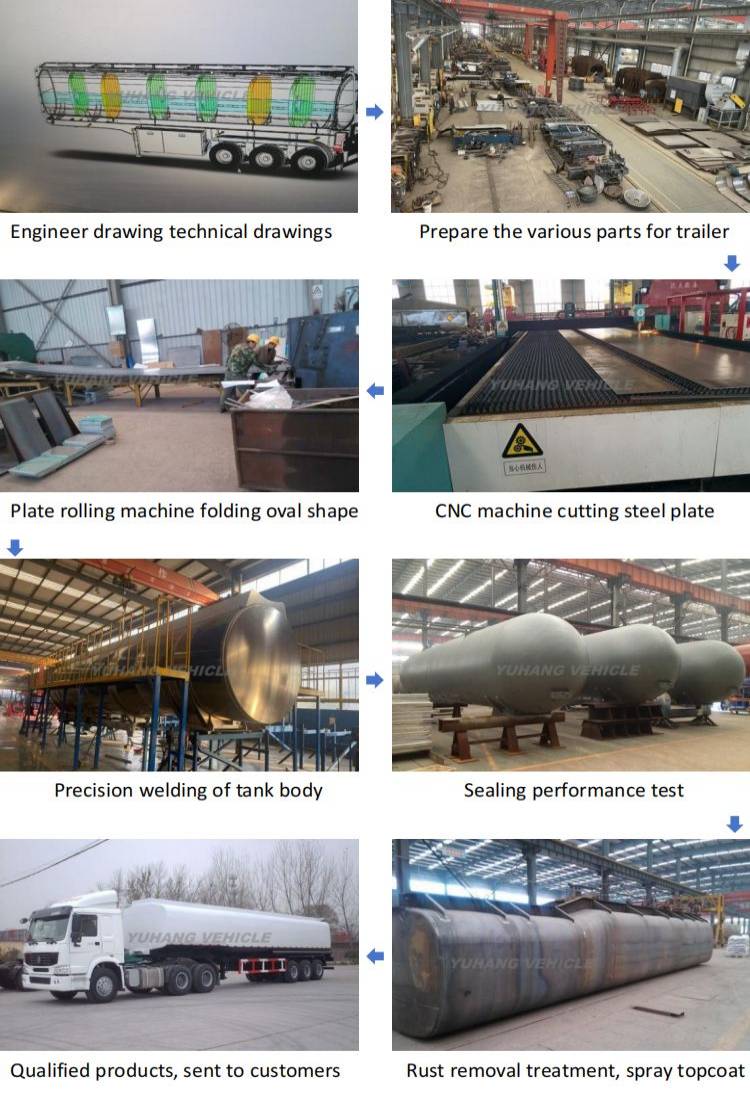

Fuel Tank Semi Trailer Manufacturing Process:

1. Design: The manufacturing factory should carry out the design, configuration, structure and material layout of the tanker trailer based on the actual transportation needs of the customer and market regulations. At this time, factors such as: the trailer’s load, cargo type, usage environment, tank body pressure, etc. need to be comprehensively considered.

2. Manufacturing: This process requires the production of vehicle frames, tank body, manhole covers, wave protection plates and other components according to design drawings. At this time, various professional equipment will be used to perform cutting, stamping, riveting, welding and other related operations to ensure that the structure of the trailer is strong and stable.

3. Assembly: At this stage, the manufactured components need to be installed together with axles, tires, leaf springs, tool boxes, braking systems, lights, etc. During the assembly process, the relationship between each component needs to be considered to ensure the overall performance and work efficiency of the trailer.

4. Inspection: Finally, a comprehensive quality inspection is required on the completed oil tank semi trailer to ensure the safety and reliability of the trailer. The inspection content mainly includes: whether the appearance, size and installation of the trailer meet the requirements, and whether the various functions are normal.

Tri Axle Stainless Tanker Trailer-YUHANG VEHICLE

Stainless Tanker Trailer Video:

Tri Axle Stainless Tanker Trailer-YUHANG VEHICLE

Do you need to know more details or features about our fuel tanker trailers and oil tank semi trailers? Please feel free to contact YUHANG or directly fill in the inquiry information in the form below.
