40,000 Liters Gasoline Tankers

Description

Description：

YUHANG VEHICLE is a well-known manufacturer of gasoline tankers in China. Our 40,000 liters tanker trucks have good mechanical properties and high strength.

40,000 liters gasoline tankers is mainly used to transport liquid substances such as diesel oil, gasoline, kerosene, sulfuric acid, edible oil, etc.

The oil tanker trailers adopts famous brand parts, which saves cost and ensures long-term use. Such as FUWA axle, JOST kingpin, WABCO brake valve, etc.

We can manufacture fuel tanker trailer with different transport volumes and configurations according to customer needs.

40000 liters gasoline tankers for sale

3 axle tank semi trailer for sale

40 cubic meters oil tanker trailers price

Advantage：

1. The tank body is automatically welded by an advanced large-scale special welding machine to ensure a high degree of sealing of the tank body and avoid leakage.

2. The wave board reduces the effective impact of the liquid on the tank body and increases the service life.

3. A climbing ladder is installed inside the tank, which is easy to clean and repair the fuel tanker trailer.

4. Install valve protection devices to improve the safety performance of oil tank trailers.

5. The gasonline tankers undergoes a test pressure test before painting to ensure it has the highest quality.

6. YUHANG VEHICLE tanker trailers use famous brand parts to ensure it can work for a long time.

Specification:

Dimension: 12000mm*2500mm*3900mm

Volume: 40000 liters or customized

Application: transport fuel, oil, diesel, water, milk, sulfuric acid

Tank Body: 6mm thickness stainless steel material

Wave Plate: 5mm stainless steel

End plate: 6mm*Q235 stainless steel

Compartments: 4 compartment or customized

Manhole Cover: 4 pcs*diameter 500mm*carbon steel

Discharge Valve: 4 pcs*diameter is 3 or 4 inch

Bottom Valve: aluminum API pneumatic bottom valve

Main Beams: stainless steel material

Axles: 3 units*FUWA/BPW brand

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: mechanical suspension or air suspension

Leaf Spring: 90(w)mmx13(thickness)x10 layers

Brake System: WABCO

Rim: 9.00-22.5/8.00-20/8.5-20

Tire: 12 units*12.00R22.5/315.80R22.5/11.00R20

Accessories: one standard tool box

ABS: optional

All the accessories we choose are purchased and processed through formal channels. To ensure the highest quality and working performance of fuel tank semi trailer.

Steel Plate/Axle/Tires/Leaf Springs/Suspension/Landing Gear

Choose YUHANG:

The fuel tanker trailer tank body we sell use advanced large-scale special automatic welding machinery and equipment. The tank body is formed in one step, which reduces the number of welding times and improves the safety performance of the tank body by at least 30%. After the tank body and other accessories are welded, they will be sanded and painted again to make the tanker semi trailer stronger, safer, more durable, more economical and environmentally friendly.

At the same time, we have advanced testing equipment to analyze and study the composition, hardness, quality, and physical phase of metal at any time to ensure that the processed materials fully meet the standards. YUHANG factory will also inspect and correct weld defects, paint thickness, tank body stress, and penetration to ensure that the trailer is 100% problem-free. The processing conditions under strict procedures make the transportation center of gravity of the fuel tanker trailer more stable and the sales price more stable and reliable, which greatly increases the later working time of the tanker truck trailers.

Fuel Tank Semi Trailer Manufacturing Process:

1. Design: The manufacturing factory should carry out the design, configuration, structure and material layout of the tanker trailer based on the actual transportation needs of the customer and market regulations. At this time, factors such as: the trailer’s load, cargo type, usage environment, tank body pressure, etc. need to be comprehensively considered.

2. Manufacturing: This process requires the production of vehicle frames, tank body, manhole covers, wave protection plates and other components according to design drawings. At this time, various professional equipment will be used to perform cutting, stamping, riveting, welding and other related operations to ensure that the structure of the trailer is strong and stable.

3. Assembly: At this stage, the manufactured components need to be installed together with axles, tires, leaf springs, tool boxes, braking systems, lights, etc. During the assembly process, the relationship between each component needs to be considered to ensure the overall performance and work efficiency of the trailer.

4. Inspection: Finally, a comprehensive quality inspection is required on the completed oil tank semi trailer to ensure the safety and reliability of the trailer. The inspection content mainly includes: whether the appearance, size and installation of the trailer meet the requirements, and whether the various functions are normal.

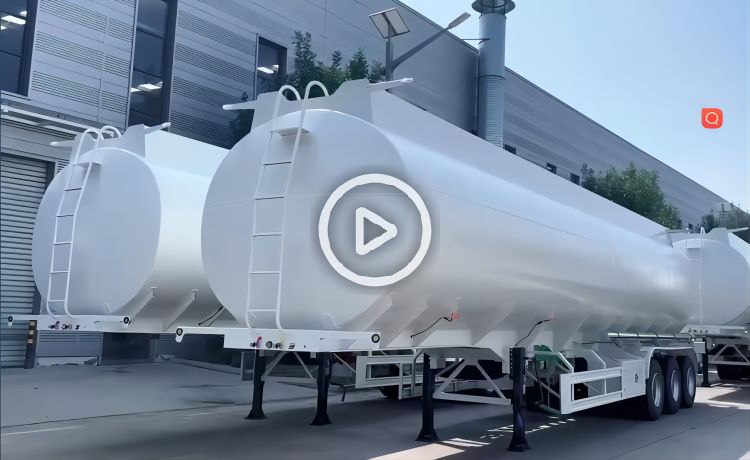

Fuel Tanker Video:

Do you need to know more details or features about our fuel tanker trailers and oil tank semi trailers? Please feel free to contact YUHANG or directly fill in the inquiry information in the form below.

---
