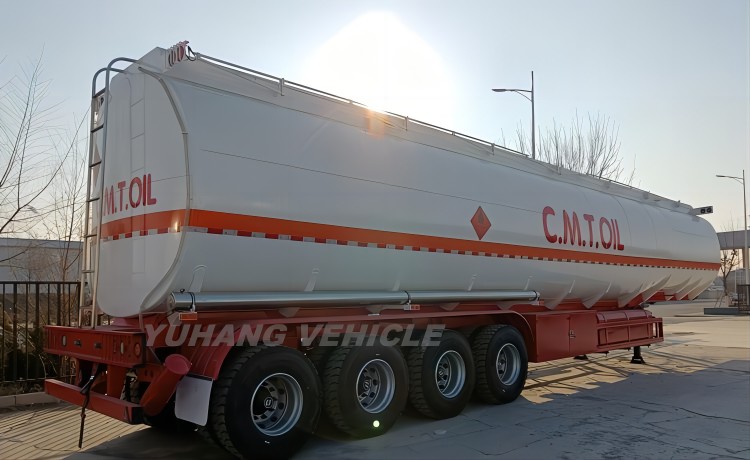

50000 Litre 4 Axle Petrol Tankers

Description

Description：

Petrol tankers, also known as fuel tanker trailer and oil tanker trailers. This petrol tanker price is mainly used for the transportation and storage of gasoline, diesel, crude oil, lubricating oil and coal tar.

The petrol tankers is composed of carbon steel tank body, power system, transmission shaft, gear oil pump, pipe network system, oil drain valve and other components.

There is a wave baffle inside the fuel tanker trailer to prevent the liquid from shaking back and forth during driving, which will affect the driving safety of the vehicle.

We pay great attention to the quality of petrol tankers, and have never disappointed our customers so far. At the same time, customers are very impressed with YUHANG VEHICLE tanker trailers.

4 axle petrol tankers for sale

YUHANG 50000 litre fuel tanker trailer price

China four axles petrol tanker trailers manufacturer

Advantage:

1. We can produce petrol tankers with 1 compartment, 3 compartments, 5 compartments, 6 compartments or more compartments according to the transportation needs of customers.

2. The 50000 litre petrol tankers for sale is made of high-strength 6mm-thick carbon steel plate and cut to standard size, and then needs to be coiled. Multiple steel plates are connected by a can rolling machine and fixed by double-sided welding.

3. The technical team will design the precise angle according to the characteristics of the oil products to be transported by the customer, so as to ensure the minimum residual amount in each compartment during unloading.

4. YUHANG oil tanker trailers adopts the best subsea valve brand, uses European standard explosion-proof manhole cover, and is equipped with breathing valve.

Specification :

Model: 50000 Litre 4 Axle Petrol Tankers For Sale

Loading Capacity: 50000 liters or customized

Dimension: 13000mm*2500mm*4000mm

Tare Weight: about 8.5t

Application: transportation of gasoline, diesel, coal tar, palm oil

Tanker Body: 6mm carbon steel

End Plate: 6mm carbon steel

Wave Plate: 5mm

Compartment: 5 compartment or customized

Manhole Cover: 5 pcs manhole cover, diameter 500mm

Bottom Valve: 5 pcs

Discharging Valve: 5 pcs 3 or 4 inch

Discharging Pipe: 3 or 4 inch rubber hose, 2 pcs, 6m/each

Main Beams: Q345 steel material

Axle: 4 axles*13T/16T FUWA/BPW brand

Landing Gear: JOST brand

King Pin: 2.00 or 3.5 inch bolt-in king pin

Suspension: heavy mechanical suspension

Leaf Spring: 90mm(w)*13mm(t)*10 layers

Rim: 9.00-22.5

Tire: 16 pcs*12.00R22.5

ABS: optional

Electrical System: 24V electrical system, 7 pin electrical connector

Painting: 1 coat of anticorrosive prime, 2 coats of final paint

Accessories: 1 standard tool box/2 fire extinguisher/2 spare tire rack

All the accessories we choose are purchased and processed through formal channels. To ensure the highest quality and working performance of fuel tank semi trailer.

Steel Plate/Axle/Tires/Leaf Springs/Suspension/Landing Gear

Choose YUHANG:

The fuel tanker trailer tank body we sell use advanced large-scale special automatic welding machinery and equipment. The tank body is formed in one step, which reduces the number of welding times and improves the safety performance of the tank body by at least 30%. After the tank body and other accessories are welded, they will be sanded and painted again to make the tanker semi trailer stronger, safer, more durable, more economical and environmentally friendly.

At the same time, we have advanced testing equipment to analyze and study the composition, hardness, quality, and physical phase of metal at any time to ensure that the processed materials fully meet the standards. YUHANG factory will also inspect and correct weld defects, paint thickness, tank body stress, and penetration to ensure that the trailer is 100% problem-free. The processing conditions under strict procedures make the transportation center of gravity of the fuel tanker trailer more stable and the sales price more stable and reliable, which greatly increases the later working time of the tanker truck trailers.

Fuel Tank Semi Trailer Manufacturing Process:

1. Design: The manufacturing factory should carry out the design, configuration, structure and material layout of the tanker trailer based on the actual transportation needs of the customer and market regulations. At this time, factors such as: the trailer’s load, cargo type, usage environment, tank body pressure, etc. need to be comprehensively considered.

2. Manufacturing: This process requires the production of vehicle frames, tank body, manhole covers, wave protection plates and other components according to design drawings. At this time, various professional equipment will be used to perform cutting, stamping, riveting, welding and other related operations to ensure that the structure of the trailer is strong and stable.

3. Assembly: At this stage, the manufactured components need to be installed together with axles, tires, leaf springs, tool boxes, braking systems, lights, etc. During the assembly process, the relationship between each component needs to be considered to ensure the overall performance and work efficiency of the trailer.

4. Inspection: Finally, a comprehensive quality inspection is required on the completed oil tank semi trailer to ensure the safety and reliability of the trailer. The inspection content mainly includes: whether the appearance, size and installation of the trailer meet the requirements, and whether the various functions are normal.

Asphalt Tanker Trailer Video:

Do you need to know more details or features about our fuel tanker trailers and oil tank semi trailers? Please feel free to contact YUHANG or directly fill in the inquiry information in the form below.

---
