45ft Terminal Trailer

The 45ft skeleton terminal trailer for sale is specially designed to transport different types of containers, which can quickly realize the loading and unloading of containers. Welcome to you send an inquiry.

10000 USD

Type: Tri axle 45ft terminal trailer

Loading Capacity: 30-80 ton

Delivery Date: 10-25 days

Applications: transport ISO standard container




The 45ft terminal trailer is specially designed for standard container transportation in supporting ships, ports, waterways, roads, transfer stations, bridges, tunnels, multimodal transportation.

Our skeletal semi trailer is an economical, sturdy and practical trailer. It can realize fast loading, unloading and turnover of containers, reduce labor costs and improve work efficiency.

YUHANG brand 45ft terminal trailer can be directly and conveniently switched from one conveyance to another, and can be used repeatedly for a long time.

We can customize different types and specifications of 20 foot, 40 foot, 45 foot, 48 foot, 53 foot skeleton trailers according to your special transportation needs.

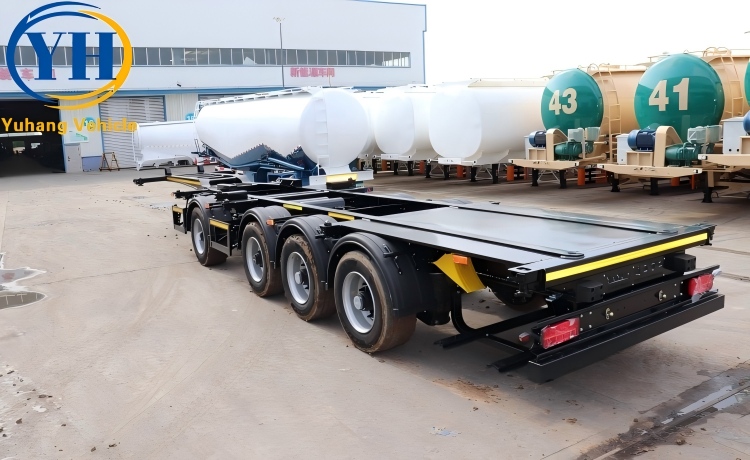

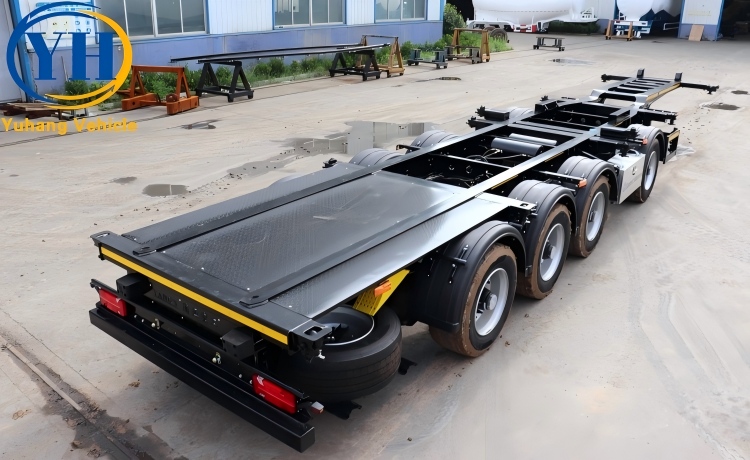

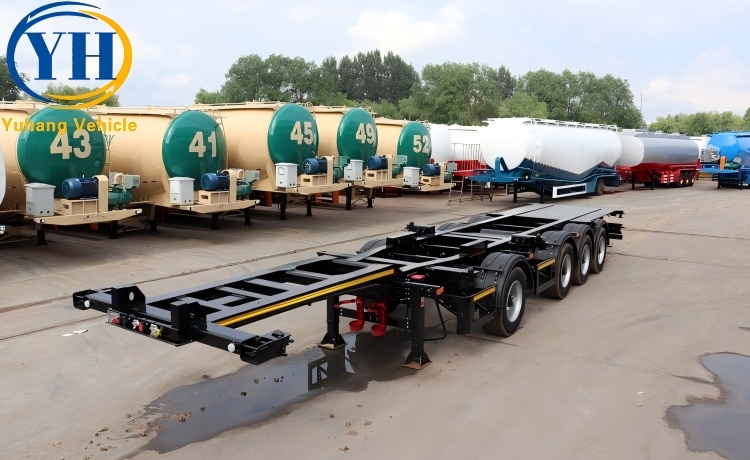

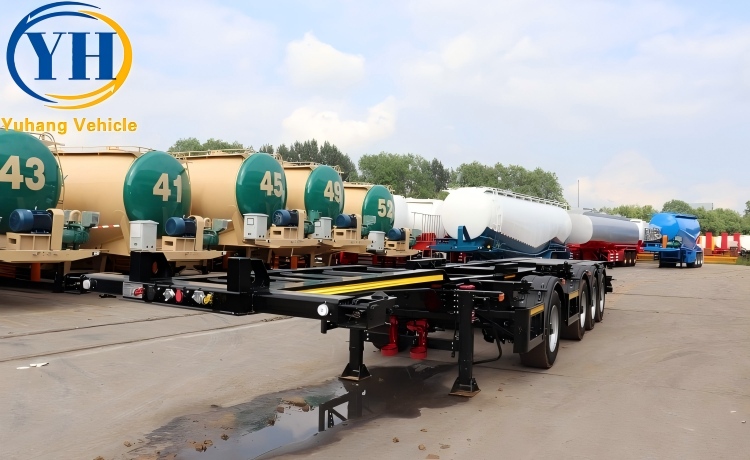

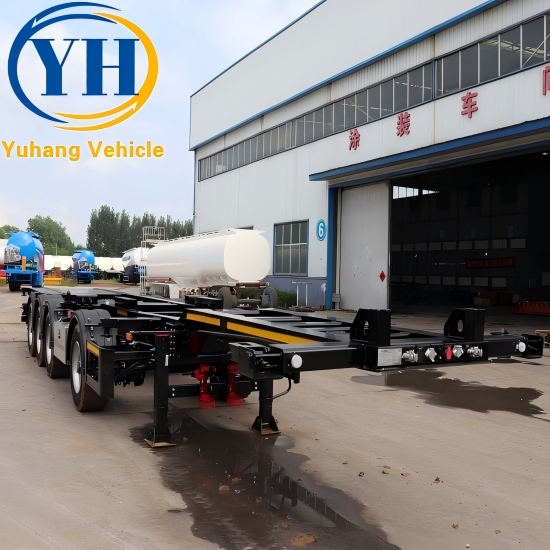

45ft Terminal Trailer-YUHANG VEHICLE45ft terminal trailer for sale

45ft Terminal Trailer-YUHANG VEHICLE3 axle skeleton semi trailer price

45ft Terminal Trailer-YUHANG VEHICLEChina first class skeletal trailer supplier


The main beam of the 45ft terminal trailer is made of high-quality 16Mn steel plate, and the beam is punched into grooves. Longitudinal beams, beams and front and rear beams are welded together, which improves the carrying capacity of the vehicle.

It adopts heavy-duty mechanical suspension system or optional air suspension; it has strong rigidity and large bearing capacity, and can be applied to different complex road conditions.

The skeleton semi trailer accessories are all products of well-known manufacturers at home and abroad, and are purchased, inspected and used in strict accordance with the quality system to ensure the safety and reliability of the vehicle quality.

The frame is all shot blasted to effectively eliminate welding stress; the electrophoretic spray paint does not fade or change color, and the appearance is beautiful.


Dimension(mm): 12500x2500x1500mm

Loading Capacity(ton): 30-80 ton

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, material Q345B steel

Axles: 3 axles*13T/14T/16T*FUWA/BPW brand

Tire: 12 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Twist Locks: 4/8/12 sets (lifting or screw type)

Valve: WABCO valve

ABS: Optional

Light: LED light

Voltage: 24V

Painting: 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: Standard assembly
