40 Foot Side Board Trailer

This 40 foot side board trailer for sale has 1200mm side wall. High-quality side wall ensure the stability and safety of loaded goods. YUHANG can design and customize side board trailer for you.

11500 USD

Model: 40 foot side board trailer

Loading Capacity: 30-80 tons

Delivery Date: 10-25 days

Application: transport container, building materials and other bulk cargos




40 foot side board trailer is based on the flatbed semi trailer with side board added, and is mainly used for transporting containers and bulk goods that are easy to fix.

Our 40 foot side board trailer working platform is the main load-bearing part, which is composed of main beams, longitudinal beams, bottom plates, suspensions, axles and other structures.

The side board structure of the trailer is available in vertical corrugation or horizontal corrugation design styles for you to choose, and the side board height can be customized according to customer.

YUHANG have 2/3/4 axle sidewall semi trailer for sale with loading capacity of 30/50/60/80/100 tons. Their quality is strong and durable, which can satisfy customers for long-term repeated use.

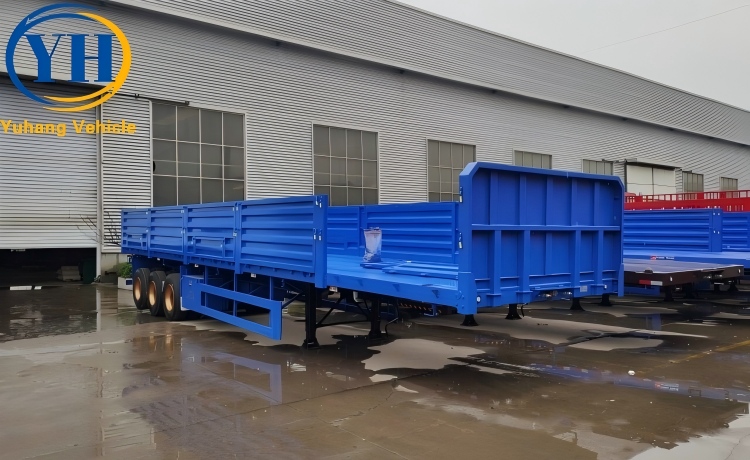

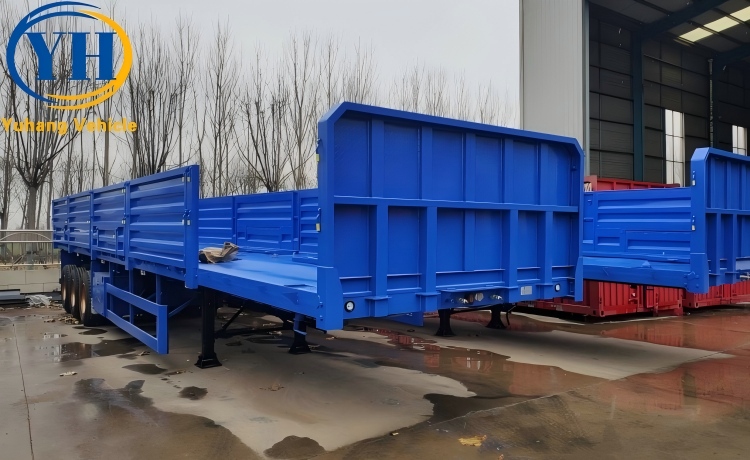

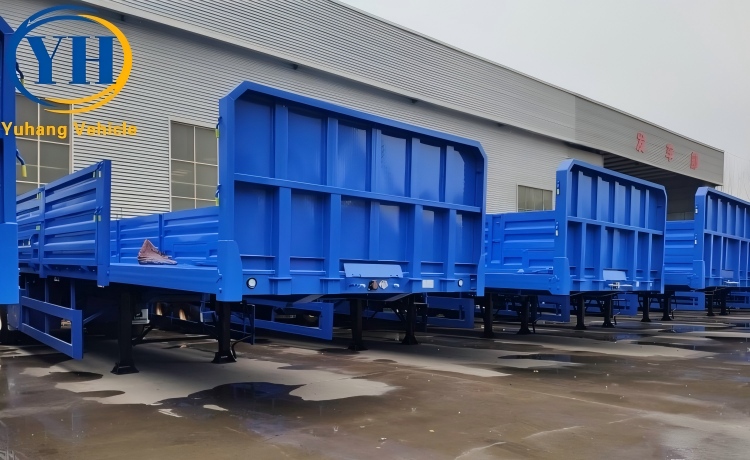

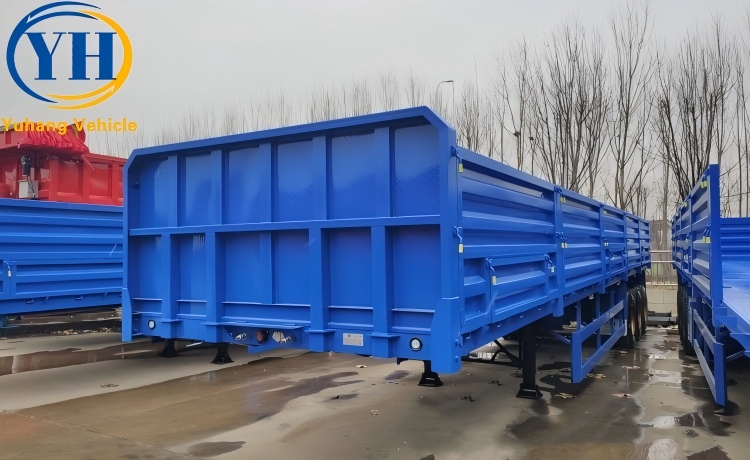

40 Foot Side Board Trailer-YUHANG VEHICLE40 foot side board trailer for sale

40 Foot Side Board Trailer-YUHANG VEHICLETri axle sidewall semi trailer with best price


1. The 40 foot side board trailer adopts high-strength steel plate, which has higher loading capacity and longer service life.

2. Using automatic robot welding technology, the solder joints are tight and firm, and the weld seams are uniform and flawless.

3. The column and side board design structure can be completely disassembled to improve the speed of bulk cargo loading and unloading.

4. The whole vehicle is treated with shot blasting and rust removal, and sprayed with polyurethane paint, which greatly improves the paint adhesion.

5. High-quality side board trailer for sale reduce maintenance costs and increase attendance.


Model: 40 foot side board trailer

Dimension(L*W*H): 12500x2500x3200mm

Tare Weight: about 7.5t

Loading Capacity: 30-80 ton

Founction: transport bulk cargo or 1*40ft container, 2*20ft container

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, lower plate 16mm, material high tension carbon steel

Side Beam: 16mm or 18mm channel steel

Platform: 3mm-thick checkered plate

Trailer Sidewall: 1200mm

Axles: 3 axles*13T/16T*FUWA/BPW brand

Tire: 12 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 steel wheel rim

Suspension: heavy duty mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers

King Pin: JOST brand 2.0 or 3.5 inch traction pin

Landing Gear: JOST brand 28t lifting capacity with two speed

Twist Locks: 4/8/12 sets (lifting or screw type)

Brake Valve: WABCO valve

ABS: optional

Color: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: 1 layer of anticorrosive primer and 2 layers of top coats

Accessories: 1 set tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or container
