Triaxle Side Wall Semi Trailer

The triaxle side wall semi trailer adopts advanced design concepts and high-quality spare parts, with strong bearing capacity, sturdy and durable, and the service life can reach more than 10 years.

11500 USD

Model: triaxle side wall semi trailer

Loading Capacity: 30-90 ton

Delivery Date: 10-25 days

Application: transport container, building materials and other bulk cargos




Triaxle side wall semi trailer is widely used in the logistics industry, mainly used to transport grain, cement bags, steel plates or other bulk goods and containers.

Dropside trailer is usually modified on the basis of flatbed semi trailer, and side board is added according to the size and characteristics of the transported goods.

We have 2/3/4 axle side wall semi trailer for sale, and the load capacity is 40/50/60/80/100 tons for you to choose. The factory sells directly, the price is the lowest, and the quality is 100% guaranteed.

YUHANG can customize side wall height and style according to customer. In order to better serve customers.

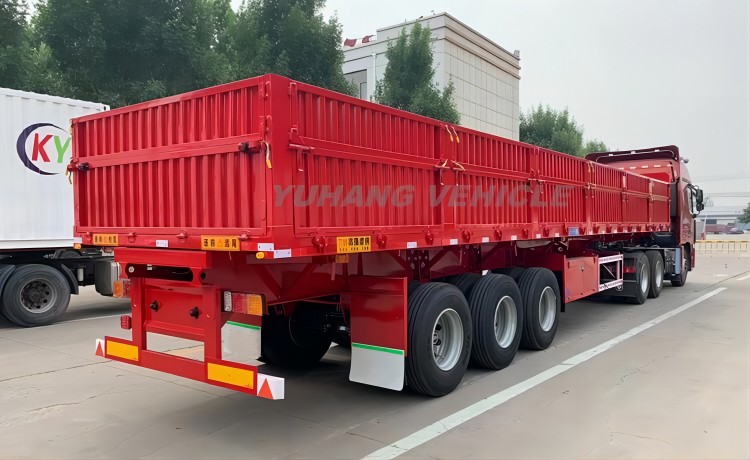

Triaxle Side Wall Semi Trailer-YUHANG VEHICLETriaxle side wall semi trailer for sale

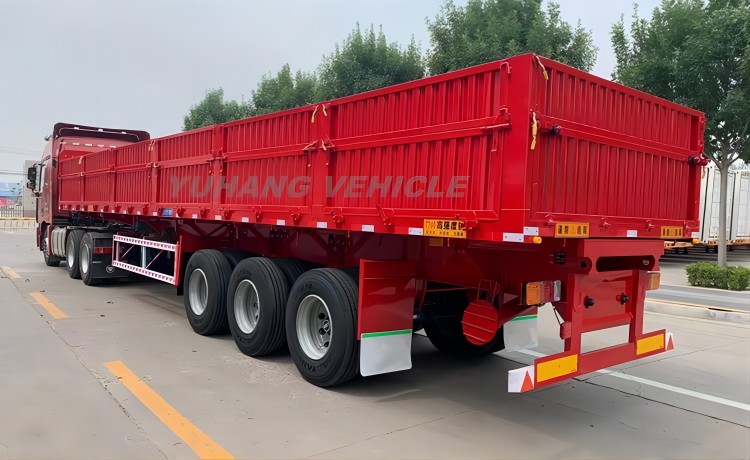

Triaxle Side Wall Semi Trailer-YUHANG VEHICLE60 ton dropside trailer with best price

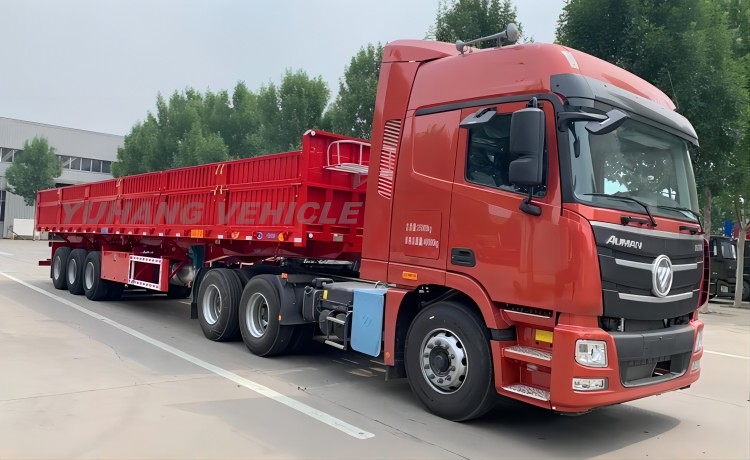

Triaxle Side Wall Semi Trailer-YUHANG VEHICLEYUHANG 3 axle dropside trailer is shipped to customer


1. The main beam adopts high-strength steel plate, which makes the triaxle side wall semi trailer have higher loading capacity and longer service life.

2. Fully automatic tracking submerged arc welding trailer frame, high welding quality, dense and strong solder joints.

3. The special column design structure can completely disassemble the column and side wall of the dropside trailer to improve the efficiency of bulk cargo loading and unloading.

4. The whole vehicle is shot blasted and derusted, sprayed with polyurethane paint, which has a long adhesion time and anti-corrosion.

5. All spare parts are world-renowned brands to reduce maintenance costs.


Model: Triaxle Side Wall Semi Trailer for sale

Dimension(L*W*H): 12500x2500x2600mm

Loading Capacity: 30-90 ton

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, lower plate 16mm, material Q345B steel

Side Beam: 16mm or 18mm channel steel

Platform: 3 mm-thick checkered plate

Trailer Sidewall: 800 mm or customize

Axles: 3 axles*13T/14T/16T*FUWA/BPW brand

Tire: 12 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 steel wheel rim

Suspension: mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch traction pin

Landing Gear: JOST brand

Twist Locks: optional, 4/8/12 sets (lifting or screw type)

Brake Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: 1 layer of anticorrosive primer and 2 layers of top coats

Accessories: one standard tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or 45ft HQ container
