Sidewall Cargo Semi Trailer

The 60 ton sidewall cargo semi trailer is our best-selling model, which is deeply loved by customers and has achieved many successful cases in Southeast Asia, Africa, the Middle East, South America.

11000 USD

Model: sidewall cargo semi trailer

Loading Capacity: 60 ton or customized

Delivery Date: 10-25 days

Application: transport container, building materials and other bulk cargos




The sidewall cargo semi trailer can be used to transport bagged cement, reinforced plate, grain or other bulk goods, and is widely used in the logistics industry.

YUHANG hot sale 3 axle sidewall cargo semi trailer has a side plate height of 1200mm and a loading capacity of 60 tons. Its design structure is reasonable and its operation is simple.

We have 2 axle, tri axle, 4 axle, 50 ton, 60 ton, 80 ton, 100 ton and other sidewall cargo semi trailer for sale with different configurations and specifications.

We can customize the height of sidewall semi trailer to meet customers’ different transportation requirements.

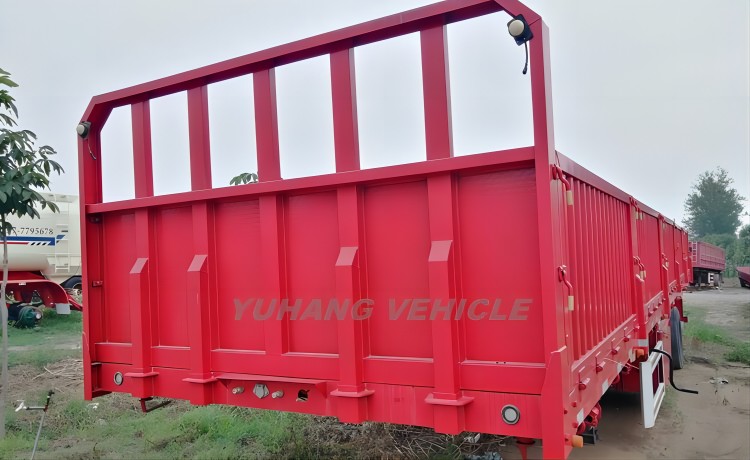

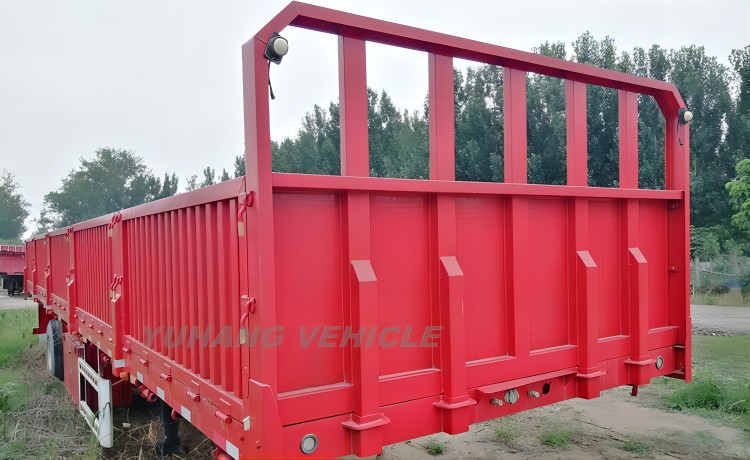

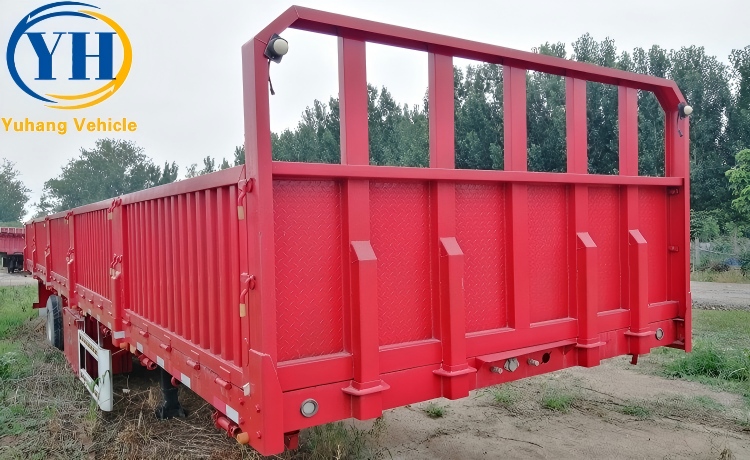

Sidewall Cargo Semi Trailer-YUHANG VEHICLE60 ton sidewall cargo semi trailer for sale

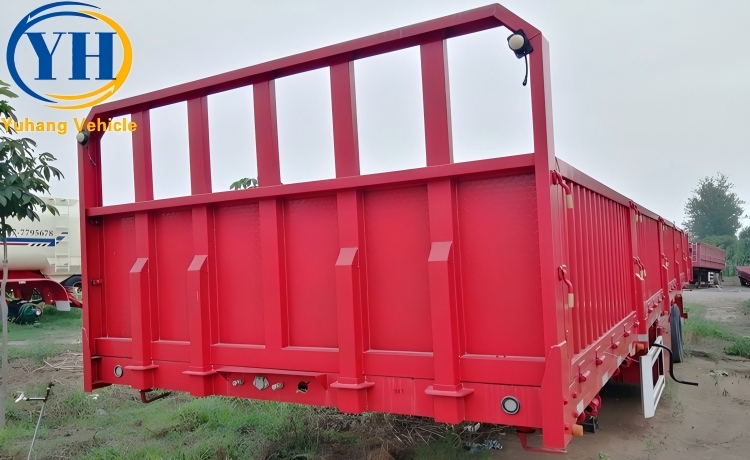

Sidewall Cargo Semi Trailer-YUHANG VEHICLE3 axle sidewall semi trailer with best price

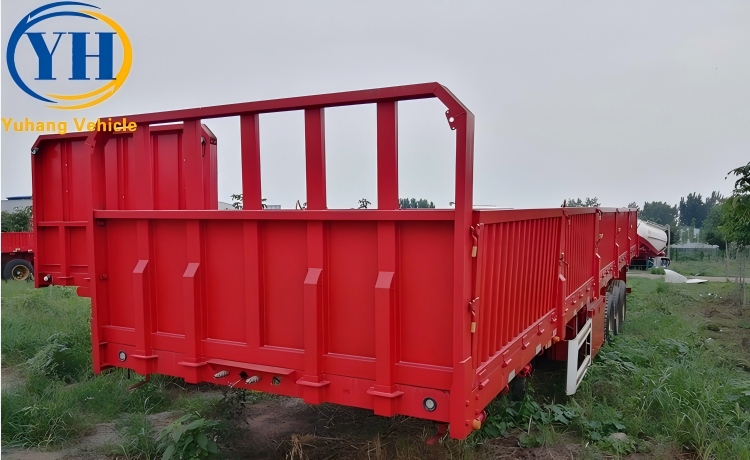

Sidewall Cargo Semi Trailer-YUHANG VEHICLEChina’s first-class side wall trailer maufacturer


1. YUHANG 60 ton sidewall cargo semi trailer adopts high-quality steel plate and latest production technology, which has higher loading capacity for you to meet more loading needs.

2. Fully automatic submerged arc welding technology welds beams and longitudinal beams, making the side wall trailer more durable and wear-resistant.

3. High-strength reinforced ribs prevent the sidewall from expanding and cracking to make it stronger and more durable.

4. A variety of sidewall door opening designs can meet the loading, unloading and transportation requirements of different types of goods.

5. The inner and outer walls of the trailer are sprayed with anti-rust and corrosion-resistant paint, which will last longer.


Model: Sidewall Cargo Semi Trailer

Tare Weight: about 7.5T

Dimension(L*W*H): 12500x2500x3400mm

Loading Capacity: 60 ton or customized

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, lower plate 16mm, material Q345B steel

Side Beam: 16mm or 18mm channel steel

Platform: 3 mm-thick checkered plate

Trailer Sidewall: 600-2000mm or customize

Axles: 3 axles*13T/16T*FUWA/BPW brand

Tire: 12 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5 steel wheel rim

Suspension: heavy duty mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers

King Pin: JOST brand 2.0 or 3.5 inch traction pin

Landing Gear: JOST brand

Twist Locks: optional, 4/8/12 sets (lifting or screw type)

Brake Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: 1 layer of anticorrosive primer and 2 layers of top coats

Accessories: one tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or container
