Tri Axle Side Wall Trailer

We have tri axle side wall trailer for sale, and the load capacity is 30 ton, 50 ton, 60 ton, and 80 ton for you to choose. The factory sells directly, the quality is guaranteed, the price is best.

12000 USD

Model: tri axle side wall trailer

Loading Capacity: 30-80 tons

Delivery Date: 10-25 days

Application: transport container, building materials and other bulk cargos




YUHANG have tri axle side wall trailer for sale, it is widely used for transporting containers, cement bags, grain, steel coils or other bulk goods. Strong loading capacity, low investment cost, deeply loved by customers.

The floor of the side wall trailer adopts 3mm thick non-slip and wear-resistant patterned bottom plate to ensure the stability and safety of the transported goods.

Tri axle side wall trailer have a loading capacity of 30-80 tons. At the same time, we also have 2 axle/3 axle/4 axle sidewall semi trailer for sale for you to choose.

We can customize the height of the side wall trailer according to the special transportation needs of customers.

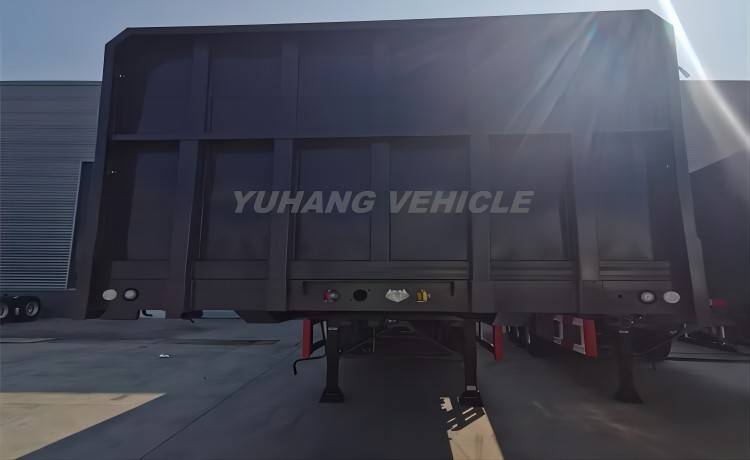

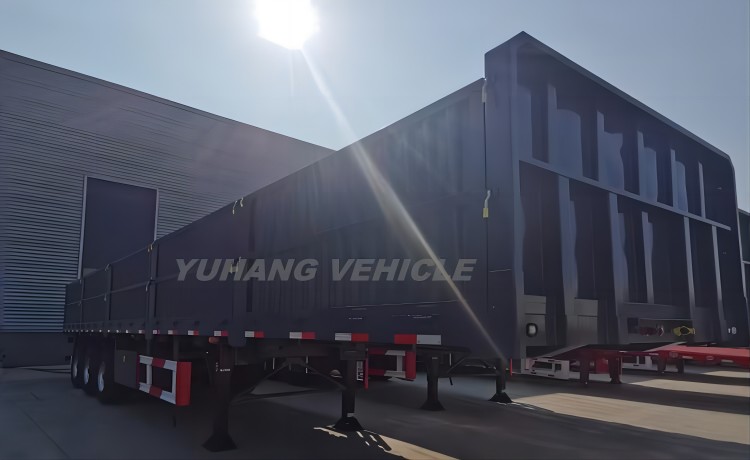

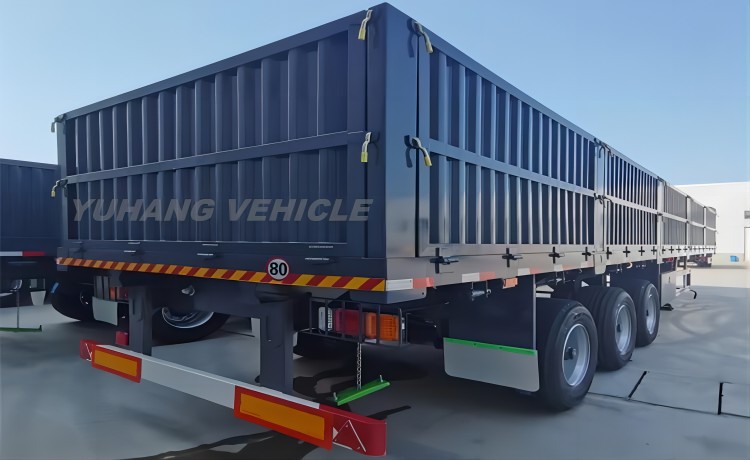

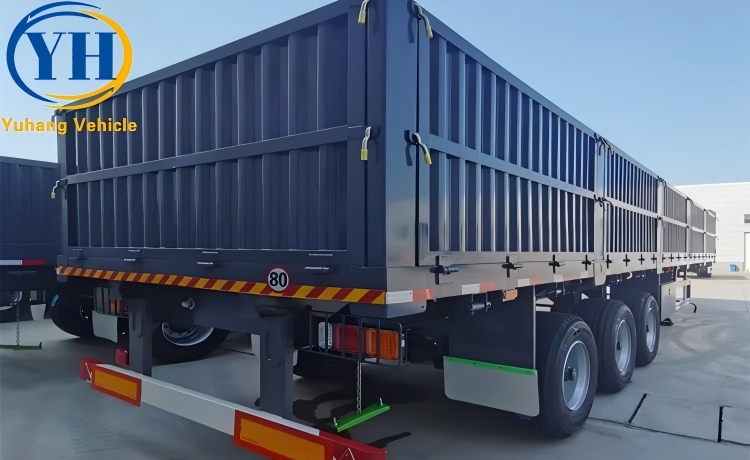

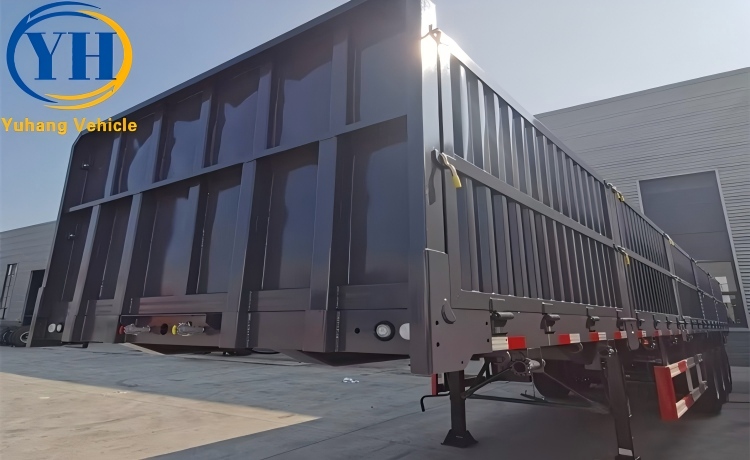

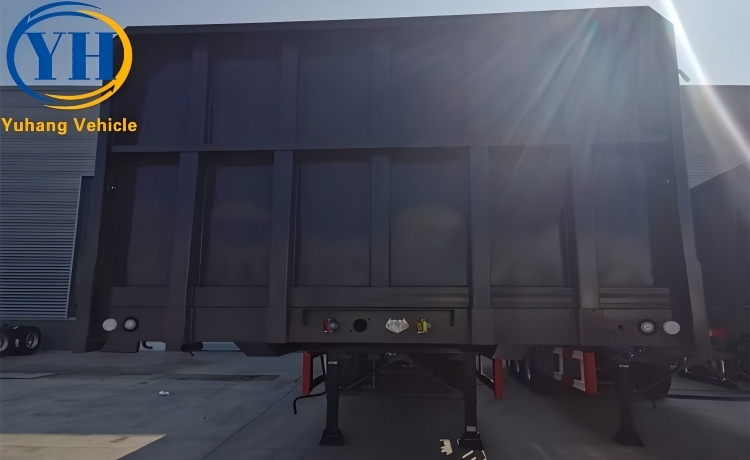

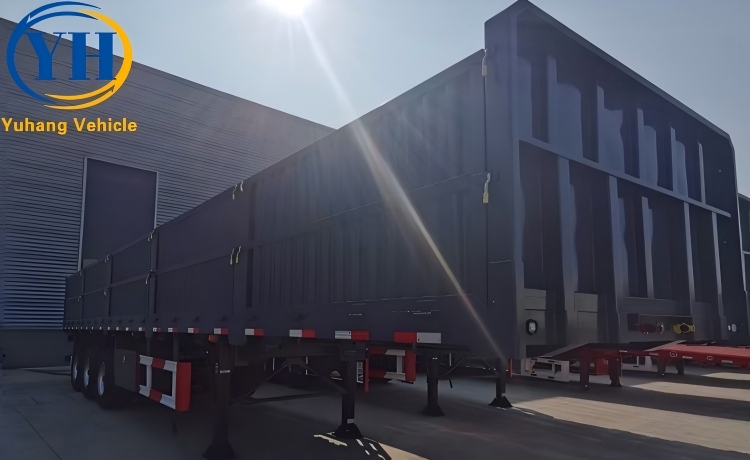

Tri Axle Side Wall Trailer-YUHANG VEHICLETri axle side wall trailer for sale

Tri Axle Side Wall Trailer-YUHANG VEHICLE60 ton drop side trailer price

Tri Axle Side Wall Trailer-YUHANG VEHICLEChina famous bulk cargo side wall trailer supplier


1. The frame of the tri axle side wall trailer is a through-beam design structure, and the longitudinal beam can be straight or gooseneck to enhance the trailer’s load-bearing capacity.

2. The high-strength side wall panels ensure that more goods can be loaded, ensuring the integrity and stability of the transported goods.

3. The mechanical spring suspension device is adopted, which has strong rigidity and strength, and is used to support the load and reduce the impact.

4. The shot blasting and derusting treatment of the whole vehicle greatly increases the adhesion of the paint.

5. All spare parts are made of world-renowned brands to reduce maintenance costs and increase trailer life.

Main Specification:

Brand: YUHANG Tri Axle Side Wall Trailer

Dimension(L*W*H): 12500x2500x3400mm

Loading Capacity: 30-80 tons

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, lower plate 16mm, material Q345B steel

Side Beam: 16mm channel steel

Platform: 3 mm-thick checkered plate

Trailer Sidewall: 600-2000mm or customize

Axles: 3 axles*13T/16T*FUWA/BPW brand

Tire: 12 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 steel wheel rim

Suspension: mechanical spring suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12

King Pin: JOST brand 2.0 or 3.5 inch traction pin

Landing Gear: JOST brand

Twist Locks: 4/8/12 sets (lifting or screw type)

Brake Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: 1 layer of anticorrosive primer and 2 layers of top coats

Accessories: oone tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or container
