50 Tonne Lowboy Equipment Trailers

We have 3 axle 50 tonne lowboy equipment trailers for sale, it is a very practical and popular trailer, mainly used for transporting machinery and equipment. Such as: cranes, excavators, bulldozers.

13000 USD

Model: 50 tonne lowboy equipment trailers

Material: high strength steel plate

Delivery Date: 10-25 days

Application: loading excavators, bulldozers or other machinery




The high-quality 50 tonne lowboy equipment trailers manufactured by YUHANG can be used to load excavators, combines, bulldozers and other construction machinery and equipment.

When loading mechanical equipment, it is usually moved to the working plane through the tail ladder of the lowbed semi trailer, and then the mechanical equipment and the lowbed trailer are fixed.

Our lowboy equipment trailers adopt high-strength steel plates to ensure the carrying capacity, and the payload is 30-120 tons. The minimum ground clearance ensures the integrity and safety of transported goods.

We can provide different configurations and specifications lowbed semi trailers to meet the different transportation needs of customers.

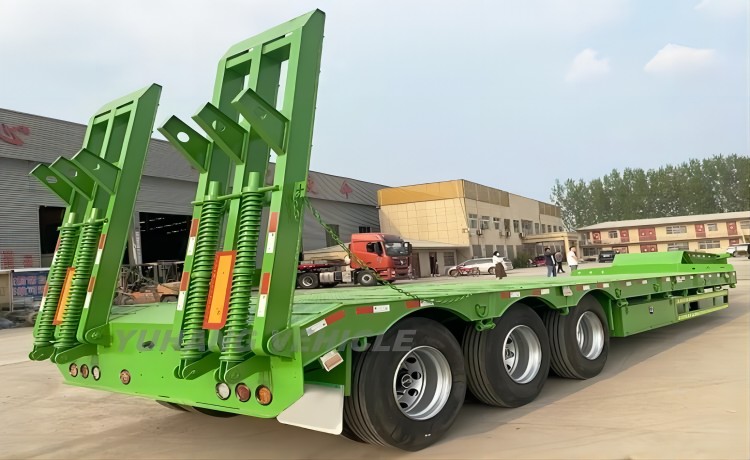

50 Tonne Lowboy Equipment Trailers-YUHANG VEHICLE3 axle lowbed semi trailer for sale

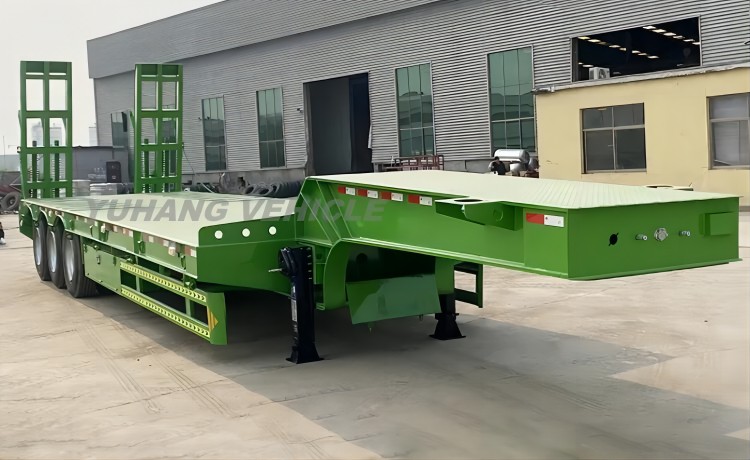

50 Tonne Lowboy Equipment Trailers-YUHANG VEHICLE50 tonne lowboy equipment trailers price

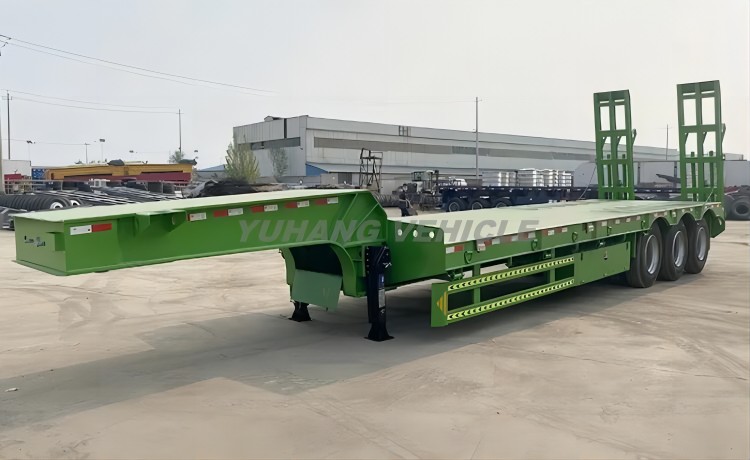

50 Tonne Lowboy Equipment Trailers-YUHANG VEHICLEYUHANG 50/60/80 ton lowbed trailer for sale


1. The main beam is made of high-strength Q345B steel plate, which has strong bearing capacity and long service life.

2. The bottom plate adopts a non-slip and wear-resistant pattern structure to ensure the stability and safety of the cargos.

3. The high-pressure mechanical spring ladder ensures that it is not easy to deform and break when carrying heavy equipment.

4. Heavy-duty mechanical spring suspension can meet high-load carrying requirements.

5. Electrophoretic powder spraying + baking paint process to avoid vehicle rust, beautiful appearance and cost saving.


Overall Dimension: 13000mm*3000mm*3500mm or customize

Loading Capacity: 30-120 ton

Main Beam: height 500mm, upper plate 18mm, middle plate 12mm, lower plate 20mm, material Q345B steel

Bottom Platform: 5mm thick checkered plate

Axle: 3/4/5 axle*13t/16t*FUWA/BPW brand

Tire: 11.00R20/12.00R20/12R22.5

Suspension: heavy duty mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

Kingpin: JOST brand 2.0 inch or 3.5 inch (bolted or welded type)

Landing gear: JOST brand

Rear Ramp: spring ladder

ABS: optional

Brake Valve: WABCO valve

Light: LED light

Color: optional

Accessories: one tool box, spare tire carrier

Shipping Terms: bulk carrier or Ro-Ro ship
