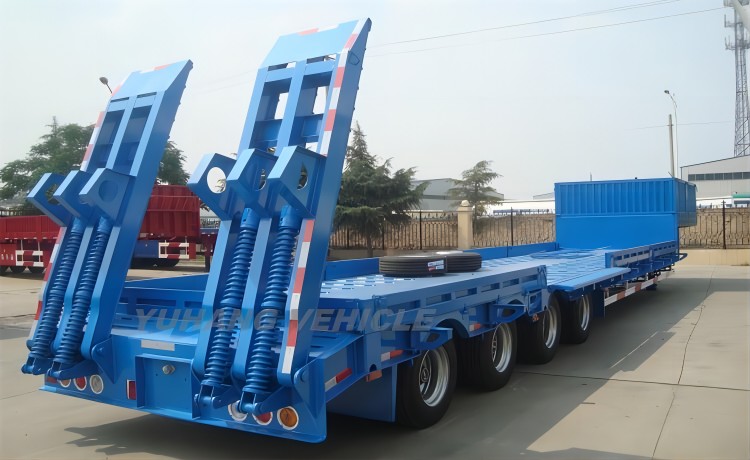

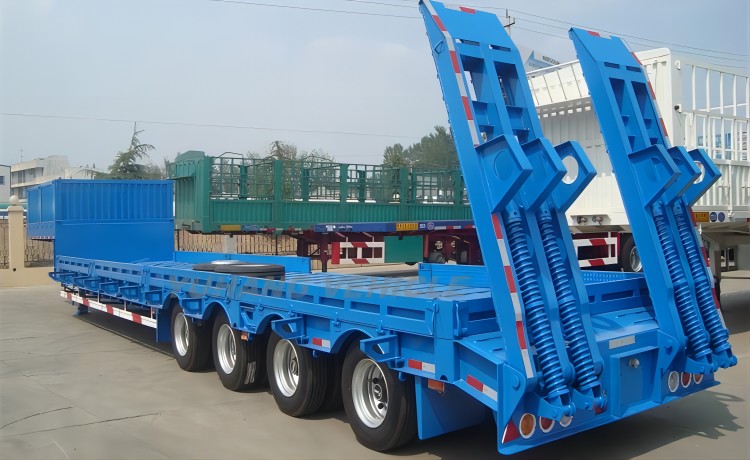

100 Ton 4 Axle Lowboy Trailer
Shandong YUAHNG Vehicle Co., Ltd have 100 ton 4 axle lowboy trailer for sale. The center of gravity of the main cargo platform is low, and the stability and safety of the cargo are high.
Manufacturer: YUHANG VEHICLE
Model: 100 ton 4 axle lowboy trailer
Material: high strength steel plate
Delivery Date: 10-25 days
Application: loading excavators, bulldozers or other machinery
We have 100 ton 4 axle lowboy trailer for sale, it is mainly used for transporting excavators, bulldozers, agricultural machinery, construction vehicles to the work site where they are located.
The center of gravity of the 100 ton lowboy trailer is very low, which improves the stability and safety of transportation, and 100% ensures the integrity of the cargo.
The two sides of the lowboy trailer can be equipped with mechanical extension tables to further increase the width of the trailer to meet the needs of customers for loading and transporting large or special cargo.
YUHANG provides customers with the best lowbed semi trailer transportation solutions, you are welcome to send an inquiry for more information.
4 axle lowboy trailer for sale
100 ton lowbed semi trailer price
China’s first-class lowbed trailer manufacturer
1. The main beam of the 100 ton 4 axle lowboy trailer for sale is made of high-strength tensile steel plate, which has a longer service life.
2. The tail ramp is made of low-alloy steel, which has a strong bearing capacity and will not deform or break when handling heavy equipment.
3. The trailer is welded by fully automatic submerged arc welding technology, with high welding strength and tight and strong weld seam.
4. The length and width of the 100 ton lowboy trailer support customized production to meet the individual needs of customers.
5. Spray wear-resistant and anti-corrosion paint, which lasts for a long time and avoids rust.
Model: 100 ton 4 axle lowboy trailer for sale
Dimension: 14000mm*3300mm*3800mm or customized
Loading Capacity: 100 ton
Application: transportation of excavators, bulldozers, cranes or other equipment
Main Beam: height 500mm, upper plate 18mm, middle plate 12mm, lower plate 20mm, material Q345B steel
Bottom Platform: 5mm thick checkered plate
Axle: 4 units*FUWA/BPW/other Brand
Tire: 16 units*10.00R20/11.00R20/12.00R20/12R22.5
Suspension: heavy mechanical suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers
Kingpin: 2 or 3.5 inch (bolted or welded type)
Landing Gear: JOST brand
Rear Ramp: spring ramp or hydraulic ramp
Brake Valve: WABCO valve
Light: LED light
Electrical System: 24-volt lighting system
Accessories: one tool box, spare tire carrier
Shipping Terms: bulk carrier, Ro-Ro ship or container
