Flatbed Trailer Sale with Air Suspension

Description

Description：

3 axle flatbed trailer sale with air suspension is a very popular semi trailer in YUHANG VEHICLE, it can transport 20ft, 40ft, 45ft standard containers or bulk cargo.

The flatbed trailer sale with air suspension can be adjusted the softness and hardness of shock absorption and the height of the vehicle body, which is more adaptable to rough and complex road conditions.

We can also provide different configurations and types 2/3/4 axle flatbed trailer sale, they have a loading capacity of 30-80 tons.

Warmly welcome every customer who wants to buy flatbed trailer to visit our factory, we can discuss all the details and applications together.

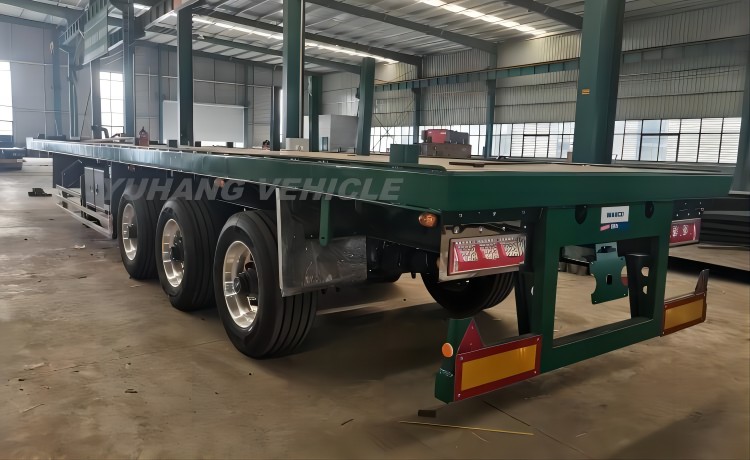

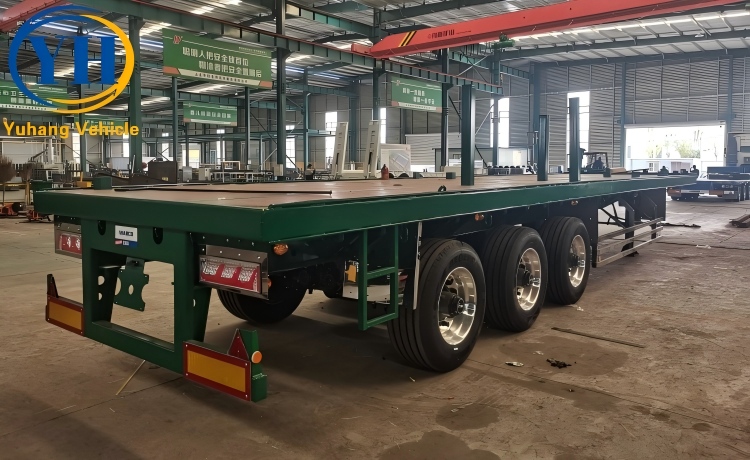

3 axle flatbed trailer sale with air suspension

60 ton flatbed trailer for sale

China 53/48/45/40 feet flatbed semi trailer supplier

Advantage：

1. The main beam of the flatbed trailer sale with air suspension is made of Q345B high-strength steel plate, which makes it more durable and increases the service life.

2. The whole robot automatically welds the body, the weld seam is tight and flawless, the welding quality is high, the appearance is beautiful, and the welding strength is high.

3. Twist locks devices for fixing containers are installed at the corresponding positions on the four corners of the flatbed trailer platform to ensure safe and stable cargo operation.

4. Before delivery, each one flatbed trailer needs to go through a withstand voltage test, and there are 3 manual inspection procedures to make it have the best working condition.

Specification:

Dimensions(L*W*H): 12000*2500*1530mm

Application: transport 20ft, 40ft, 45ft container

Loading capacity: 30-80T or customized

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, material Q345B steel

Side Beam: 16mm or 18mm steel channel

Platform: 3mm-thick checkered plate

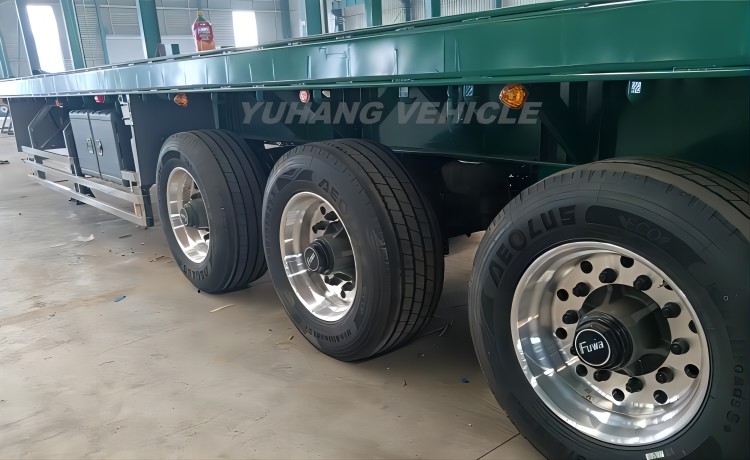

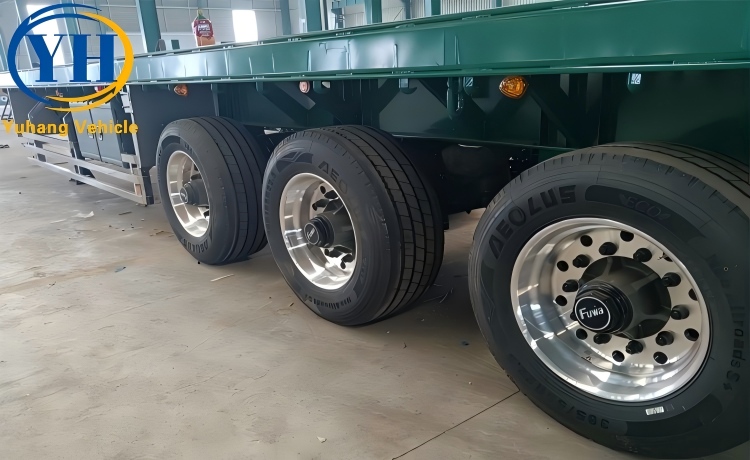

Axles: 3 axle*13T/16T*FUWA/BPW brand

Tire: 12 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: air suspension

Kingpin: 50(2 inch)#or 90(3.5 inch) bolted type

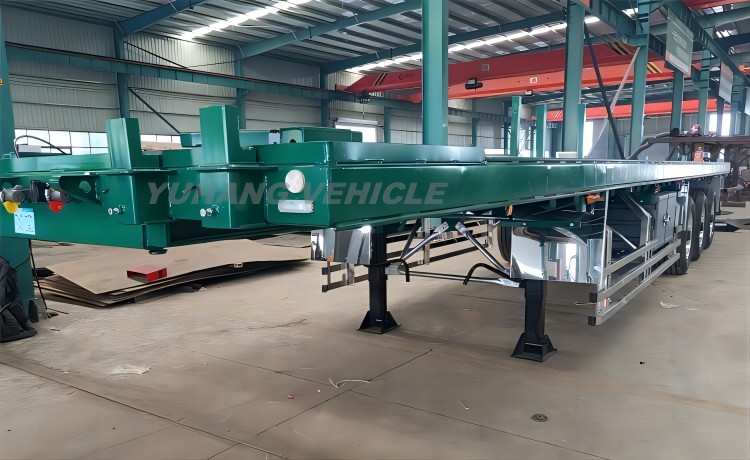

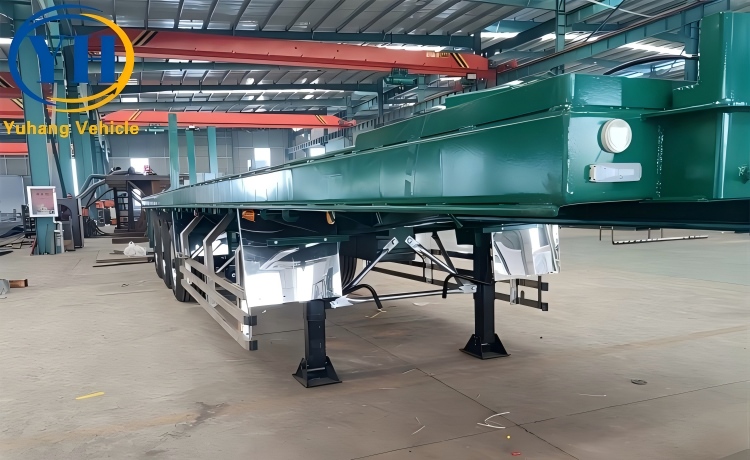

Landing Gear: JOST brand

Twist Locks: 12 pcs (lifting or screw type)

Brake Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Accessories: one tool box, spare tire carrier

---
