3 Axle Flatbed Trailer For Sale
10300 USD
Our factory have 3 axle flatbed trailer for sale, strictly marking the load level and specifications, and the price is discounted. We can customize according to the transportation needs of customers.
Model: 3 axle flatbed trailer for sale
Material: high-strength wear-resistant steel plate
Delivery Date: 10-25 days
Application: transport bulk cargo or standard size containers
Description
Description:
3 axle flatbed trailer for sale is usually used for container transportation in ports, waterways, expressways, transfer stations, bridges, tunnels and other places.
The working platform of the flatbed trailer is the main load-bearing part, which is composed of main beams, side beams, beams, bottom plates, suspensions, axles and other structures.
YUHANG VEHICLE 3 axle flatbed trailer is the most popular model, and the length and height of the flat bed trailer can be customized according to customer needs.
All flatbed semi trailer for sale will be strictly tested by professional technicians before delivery to ensure the highest quality.
Each one flatbed trailer has its own load level and specifications to meet the needs of customers.

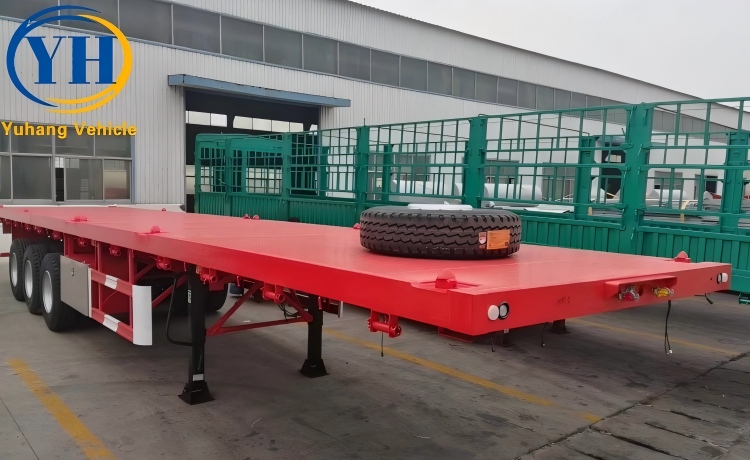

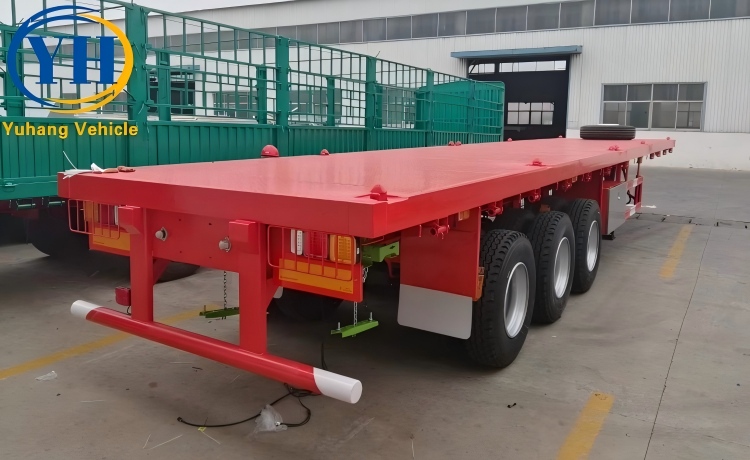

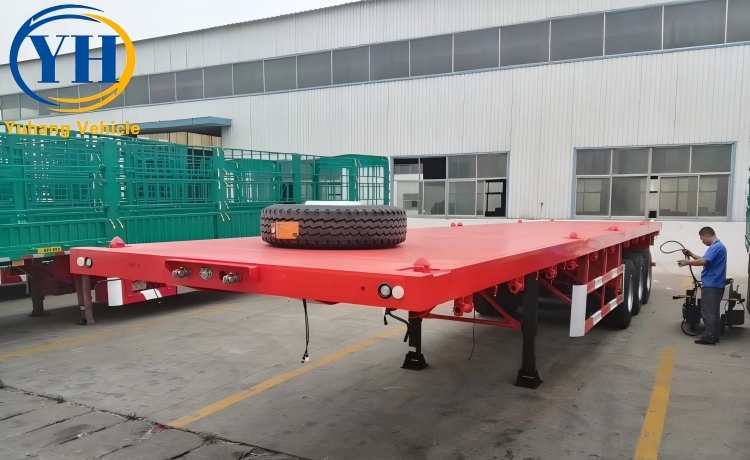

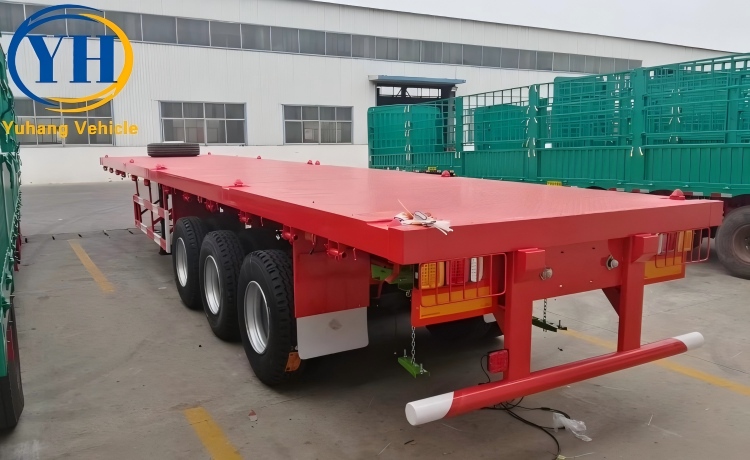

3 axle flatbed trailer for sale
40 foot flatbed semi trailer price
China triaxle container flatbed trailer for sale
Advantage:
1. The main beam of the 3 axle flatbed trailer is made of high-strength steel plate, which has strong bearing capacity and long service life.
2. There are 6 units beams at the bottom of the platform, which ensures that the 3 axle flatbed trailer for sale is not easy to twist and deform when it is heavily loaded.
3. Mechanical leaf spring suspension is adopted, which has good stability, low investment cost and convenient maintenance.
4. The fully automatic robot welding machine automatically tracks the edge of the welding bottom plate, the weld seam is tight and strong, the welding quality is high, and it is environmentally friendly.
5. High-quality twist locks are installed at the corresponding positions at the four corners of the trailer platform to ensure safe and efficient container transportation.
6. During transportation, the flat bed trailers are sprayed with wax and covered with tarpaulins to protect them from seawater and rain, and to prevent paint from peeling off and rusting.
Specification:
Dimension(mm): 12,500×2,500×1,500mm
Loading Capacity: 30-90 tons
Application: transport 20/40ft container
Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, material Q345B steel plate
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Axle: 3 axle*13t/16t *FUWA/BPW brand
Rim: 9.00-22.5
Tire: 12 units*12.00R22.5
Suspension: mechanical suspension or air suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100(w)mmx12(thickness)mmx12 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand
Twist Locks: 4/8/12 sets (lifting or screw type)
Brake Valve: WABCO brand valve
ABS: optional
Light: LED light
Voltage: 24V
Socket: 7-pin socket (for 7 wire harness)
Tool Box: one standard toolbox
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
Shipping Terms: bulk carrier, Ro-Ro ship or container
