60T Dropside Trailer

Description

Description：

60t dropside trailer is favored by logistics and transportation companies for its high quality and favorable price. It is used for loading various bulk goods or materials.

After the dropside trailer is equipped with 12 pcs container twist locks, it can be used to transport 20 foot and 40 foot, 45 foot, 48 foot standard size containers.

The height of the side wall of the 60t dropside trailer is 1000mm, and we can also adjust the side wall according to the actual transportation needs of customers.

YUHANG brand sidewall semi trailer has reasonable structure, advanced technology, simple operation, reliable performance and beautiful appearance.

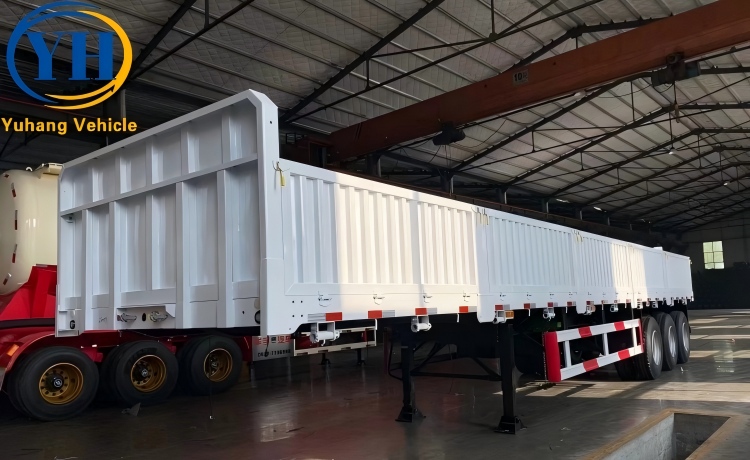

60t dropside trailer for sale

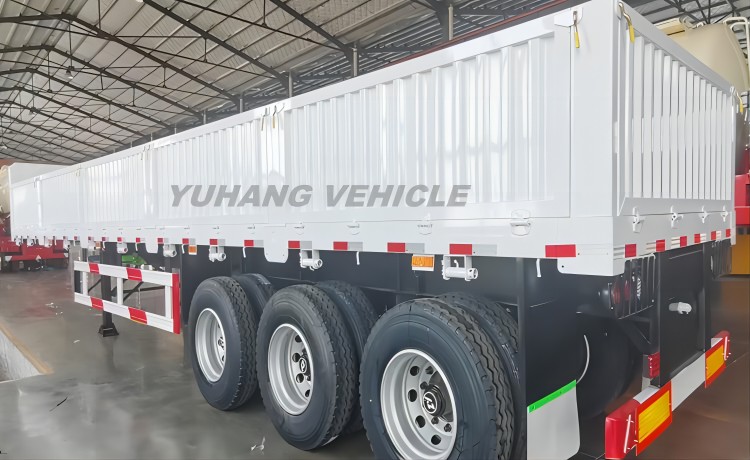

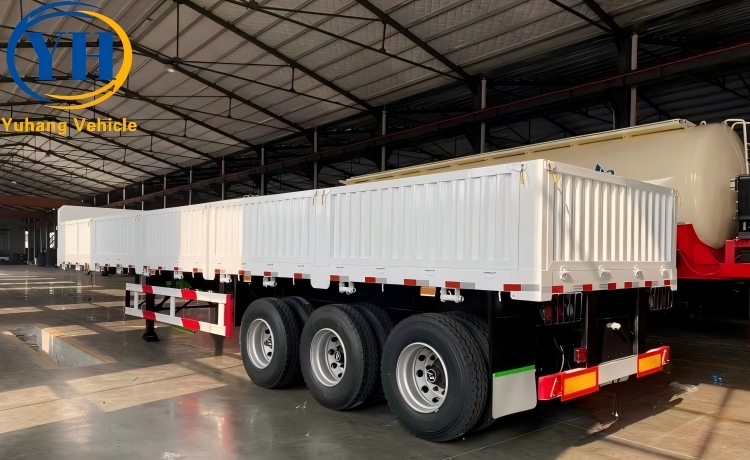

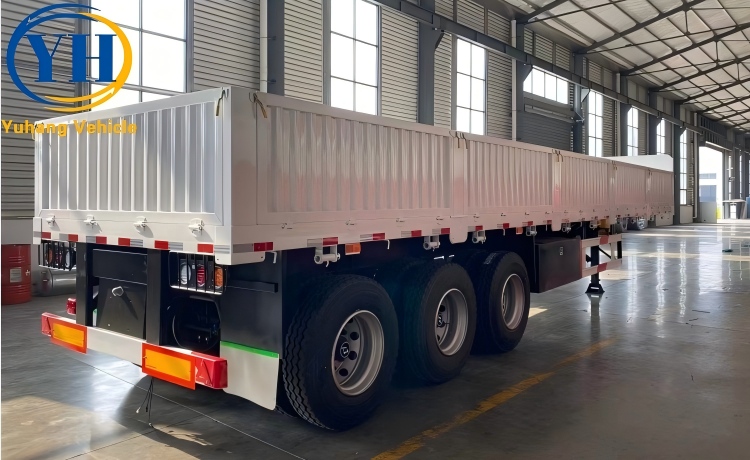

3 axle sidewall semi trailer with best price

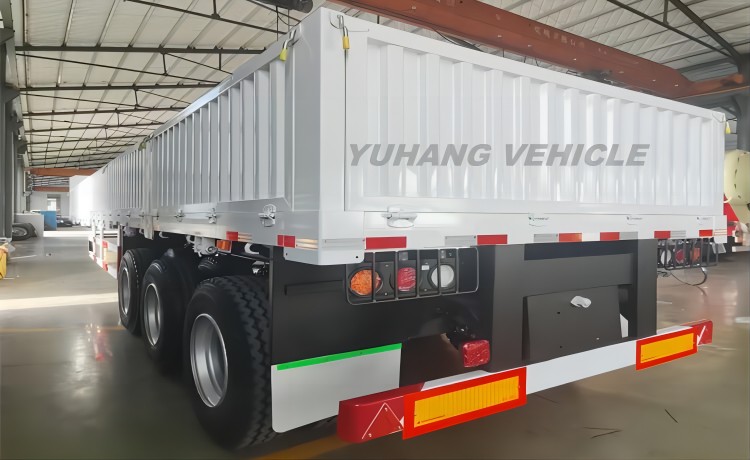

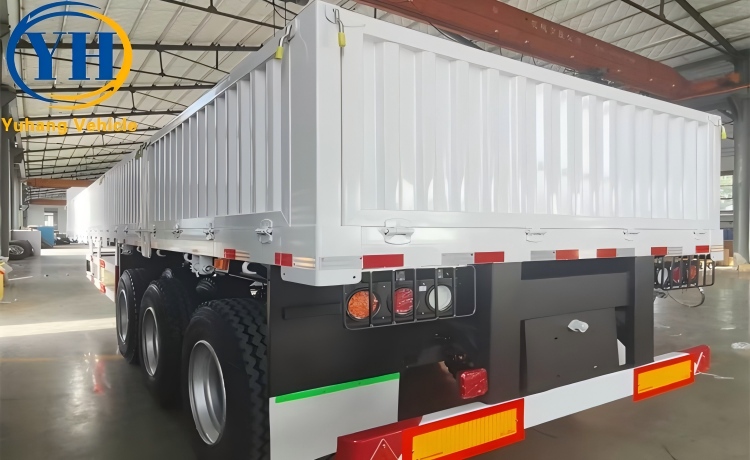

YUHANG 3 axle dropside trailers will be sent to customer

Advantage：

1. The main beam is made of compressive and durable steel plate, which increases the working strength, toughness and low temperature impact resistance of the 60t dropside trailer.

2. The whole robot automatically welds the trailer frame, the weld seam is tight and strong, and the welding quality is high. No cracking or breaking will occur.

3. The vertical sidewall box plate style structure improves the loading capacity of the dropside trailer and prevents expansion.

4. The whole vehicle is shot blasted and derusted, which greatly increases the adhesion of the paint. The appearance is bright and beautiful.

5. All parts are made of world-renowned brands to prolong the service life of the trailer, save costs for customers.

Specification:

Dimension(L*W*H): 12500x2500x2600mm

Loading Capacity: 60t or customized

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, lower plate 16mm, material Q345B steel

Side Beam: 16mm or 18mm channel steel

Platform: 3 mm-thick checkered plate

Trailer Sidewall: 1000mm

Axles: 3 axles*13T/16T*FUWA/BPW brand

Tire: 12 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5 steel wheel rim

Suspension: mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12

King Pin: JOST brand 2.0 or 3.5 inch traction pin

Landing Gear: JOST brand

Twist Locks: 12 sets (lifting or screw type)

Brake Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: 1 layer of anticorrosive primer and 2 layers of top coats

Accessories: 1 set tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or container

---
