Tri Axle Gooseneck Skeleton Semi Trailer

Tri axle 40ft gooseneck skeletal semi trailer has a strong carrying capacity and is specially designed for transporting iso containers. They have the best price, welcome your inquiry.

10000 USD

Type: Tri axle gooseneck skeletal semi trailer

Loading Capacity: 30-60t or customized

Delivery Date: 10-25 days

Applications: transport ISO standard container




Tri axle gooseneck skeleton semi trailer is also called skeletal trailer, container chassis trailer. We have high quality skeleton semi trailer for sale for you to choose.

Our skeleton trailers are generally used to transport iso standard containers in many scenes such as: ports, docks, airlines, bridges, tunnels, and transfer stations.

We have different types and specifications of gooseneck container chassis trailers for you to choose, with a load of 30-90 tons and the lowest price, 100% quality assurance.

YUHANG has a professional technical team to provide you with comprehensive skeleton trailer design and customization services, as well as optimal transportation solutions.

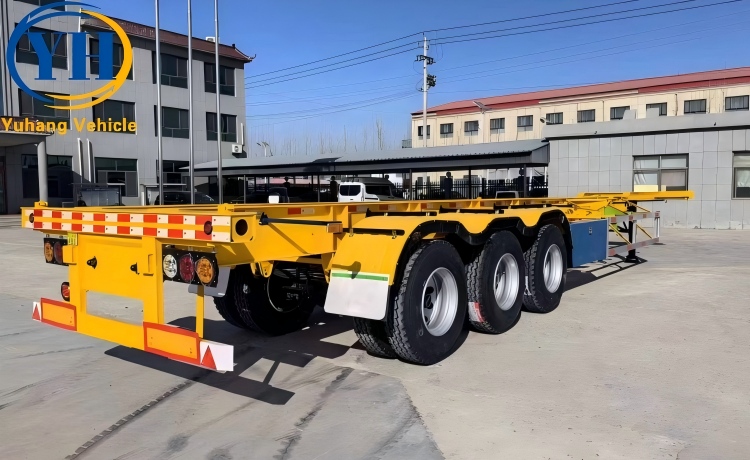

Tri Axle Gooseneck Skeleton Semi Trailer-YUHANG VEHICLETri axle gooseneck skeletal semi trailer for sale


● The main girder of the skeletal semi trailer is made of high-strength steel plates, and we eliminate the use of surplus steel plates and inferior steel plates.

● For complex and rough road conditions, the advanced computer design auxiliary system is used to analyze the stress and bearing data to improve the safe operation factor of the vehicle.

● Our skeleton semi trailers have undergone standard production processes such as: mechanical welding, vehicle shot blasting, primer treatment, and topcoat spraying to ensure that the vehicle meet high-quality standards.

● YUHANG brand tri axle gooseneck skeletal trailer will go through rigorous testing and pressure-bearing performance inspections before leaving the factory.


Brand: YUHANG Tri Axle Gooseneck Skeletal Semi Trailer

Dimension: 12500x2500x1500mm

Loading Capacity: 30-60t

Application: transport 20ft/40ft ISO container

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, Q345B carbon steel

Axles: 3 axles, 13T/16T, FUWA/BPW brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: mechanical suspension or air suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

King Pin: 3.5 inch

Landing Gear: JOST brand

Twist Locks: 4,8,12 sets (lifting or screw type)

Brake System: WABCO brake valve

ABS: optional

Color: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: polyurethane anti-corrosion paint

Accessories: one standard tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or 45ft HQ container
